RADIATOR, RADIATOR HOSES, FAN SHROUD AND FAN GUARD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	19M7489	4	Cap Screw	M16 X 45
3	12H294	4	Lock Washer	5/8"
5	AT121380	2	Support	-
6	19M8035	4	Cap Screw	M16 X 35
7	12H294	4	Lock Washer	5/8"
11	AT122894	1	Hose	(SUB FOR AT121209, THIS APPLICATION)
12	AT122183	1	Radiator Hose	-
13	AT117396	1	Clamp	(SUB FOR AR21999, AND AT145651THIS APPLICATION)
14	AT105289	2	Clamp	(SUB FOR AR21999, AND AT145651THIS APPLICATION)
15	AT54837	1	Clamp	(SUB FOR AT37693, THIS APPLICATION)
17	TH110562	1	Reservoir	(COOLANT RECOVERY)
19	19M7402	2	Cap Screw	M10 X 25
20	12M7066	2	Lock Washer	10 mm
21	24M7028	2	Washer	10.500 X 20 X 2 mm
23	TH108579	1	Bracket	-
28	-	1	Part 16	HOSE, VINYL (MAKE FROM T79477 BULK MATERIAL, CUT TO LENGTH)
29	TY22462	1	Clamp	(SUB FOR AR77962 OR AR48236)
30	TH108600	5	Clip	-
31	19M8451	4	Cap Screw	M10 X 14
32	12M7066	4	Lock Washer	10 mm
33	14M7275	1	Nut	M12
34	12H301	1	Lock Washer	1/2"
61	AT123284	1	Radiator	(SUB FOR AT122372)
62	AT122559	1	Filler Cap	(RADIATOR)
64	AT121311	1	Drain Valve	(RADIATOR)
65	-	1	Part 26	(DRAIN) (MAKE FROM T79477 - CUT TO LENGTH) ___ ( AT121312 NO LONGER AVAILABLE)
66	AT122373	1	Shroud	-
67	AT121594	6	Bolt	-
68	AT122374	1	Guard	-
69	AT121596	8	Bolt	-
70	T13254	2	Clamp	-
71	AT121599	1	Isolator	-
73	AT121599	2	Isolator	(RADIATOR SIDE)
73	AT123281	2	Isolator	(CUT TO LENGTH)
74	AT121600	2	Isolator	-
74	AT123281	2	Isolator	-
75	AT121849	1	Drain Valve	(RADIATOR)
76	AT165165	1	Isolator	(SUB FOR AT121850)
77	AT122589	1	Guard	-
78	AT146216	1	Brace	-
79	24M7055	4	Washer	8.400 X 16 X 1.600 mm
80	19M7139	4	Cap Screw	M8 X 20
72A	AT165165	1	Isolator	(SUB FOR AT121598)
72B	AT165165	1	Isolator	-

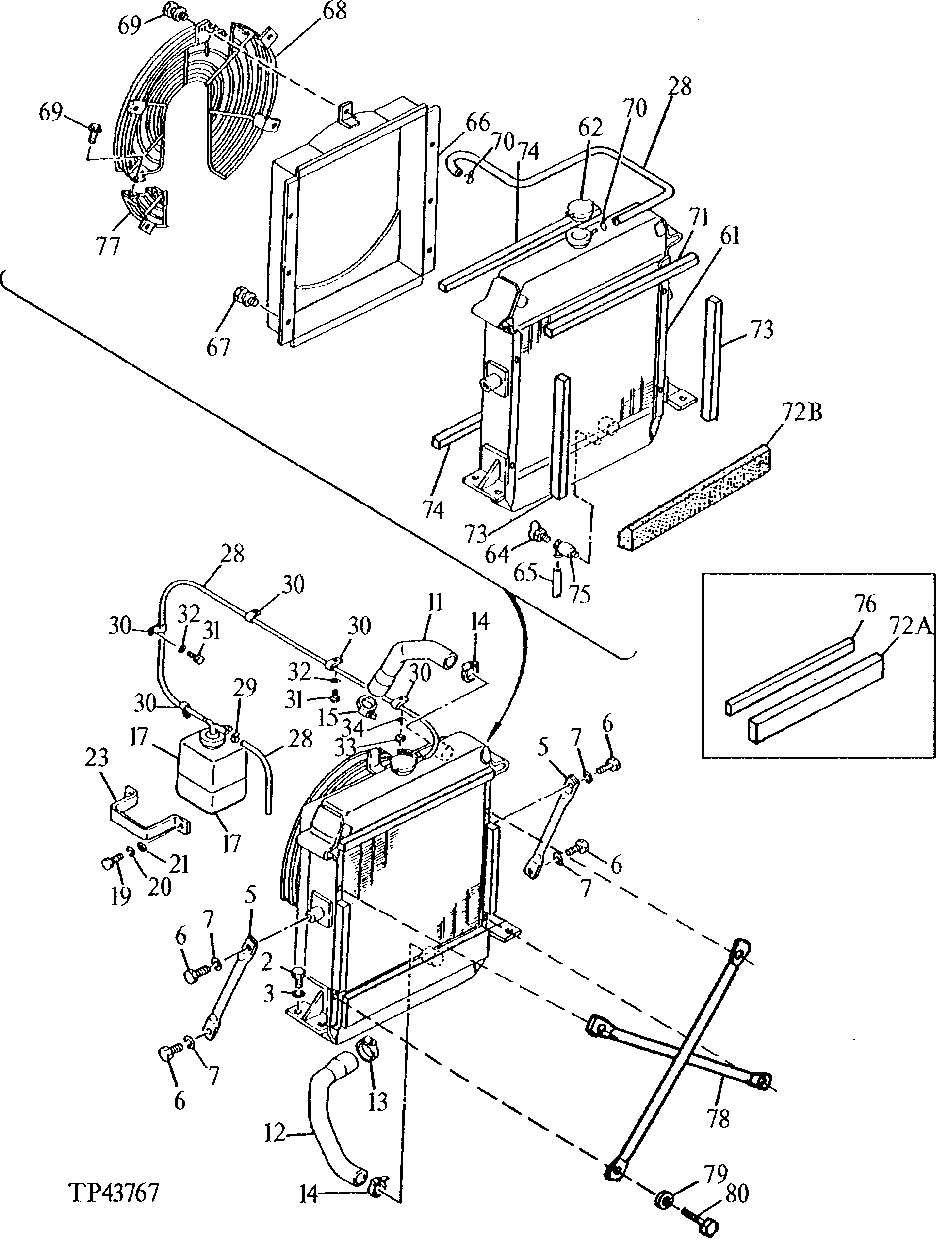

RADIATOR, RADIATOR HOSES, FAN SHROUD AND FAN GUARD
