POWERSHIFT TRANSMISSION OIL LINES, FILTER AND BRAKE SYSTEM

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT122476	1	Oil Tube	-
1	TH103950	1	O-Ring	-
2	19M8334	4	Screw	M6 X 30
4	-	1	Part 4	AT122216 NO LONGER AVAILABLE FOR SERVICE, SUB T145959 BULK MATERIAL CUT TO 500 MM
5	TY22467	2	Clamp	SUB FOR TH101909, OR AR21839THIS APPLICATION, SUB FOR AT145650
7	AT121200	1	Flange	-
8	TH103950	1	O-Ring	-
9	19M8505	4	Screw	M6 X 25
10	38H1435	1	Elbow Fitting	-
15	12M7066	2	Lock Washer	10 mm
17	AT122249	1	Valve	-
18	19M7403	4	Cap Screw	M12 X 35, SUB FOR AT122616, AT133980
19	12H301	4	Lock Washer	1/2"
24	AE48027	2	Fitting	SUB FOR AT121305
25	38H1435	1	Elbow Fitting	-
26	T77613	4	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), SUB FOR AT121256
27	AT122365	1	Hydraulic Hose	-
31	AT122286	1	Hydraulic Hose	-
32	AT122617	1	Hydraulic Hose	-
33	38H1171	1	Adapter Fitting	-
34	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), SUB FOR AT121256
35	AT122618	1	Hydraulic Hose	-
37	TH108793	2	Clip	-
38	19M8324	2	Cap Screw	M10 X 16
39	12M7066	2	Lock Washer	10 mm
40	24M7028	2	Washer	10.500 X 20 X 2 mm
42	AT123269	1	Bracket	-
42	AT122381	1	Bracket	SUB AT123269
43	AT122233	1	Reservoir	BRAKE
44	J900614	4	Bolt	SUB FOR TH104056
45	12M7006	4	Lock Washer	6 mm
47	AT122350	2	Hose	-
48	AL37489	4	Clamp	-
49	AT123268	1	Cover	SUB AT123269
51	38H1435	2	Elbow Fitting	-
52	38H1435	1	Elbow Fitting	-
52	AE48027	1	Fitting	-
65	H77698	10	Tie Band	SUB FOR TH106422
66	AT122247	1	Shield	-
67	4327315	12	Hose Guard	SUB FOR TH106022, 4133527 OR 4327293
69	4327315	22	Hose Guard	SUB FOR TH106022, 4133527 OR 4327293
70	14M7274	2	Nut	M10
10A	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
10B	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11A	-	1	Part 12	POWER SHIFT TRANSMISSION, SUB 4191300, (2) AT187516, (2) AT205811, AT187507, (2) 14M7274, AT122314 NO LONGER AVAILABLE
11B	4631976	1	Oil Filter	POWER SHIFT TRANSMISSION, SUB FOR 4191300, TH108402
12A	38H1413	2	Elbow Fitting	-
12B	AT187516	2	Elbow Fitting	-
13A	U12547	2	O-Ring	-
13B	U46489	2	O-Ring	-
14A	19M7402	2	Cap Screw	M10 X 25
14B	AT205811	2	Bolt	-
16A	AT122367	1	Bracket	-
16B	AT187507	1	Bracket	-
24A	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25A	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
51A	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
51B	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")

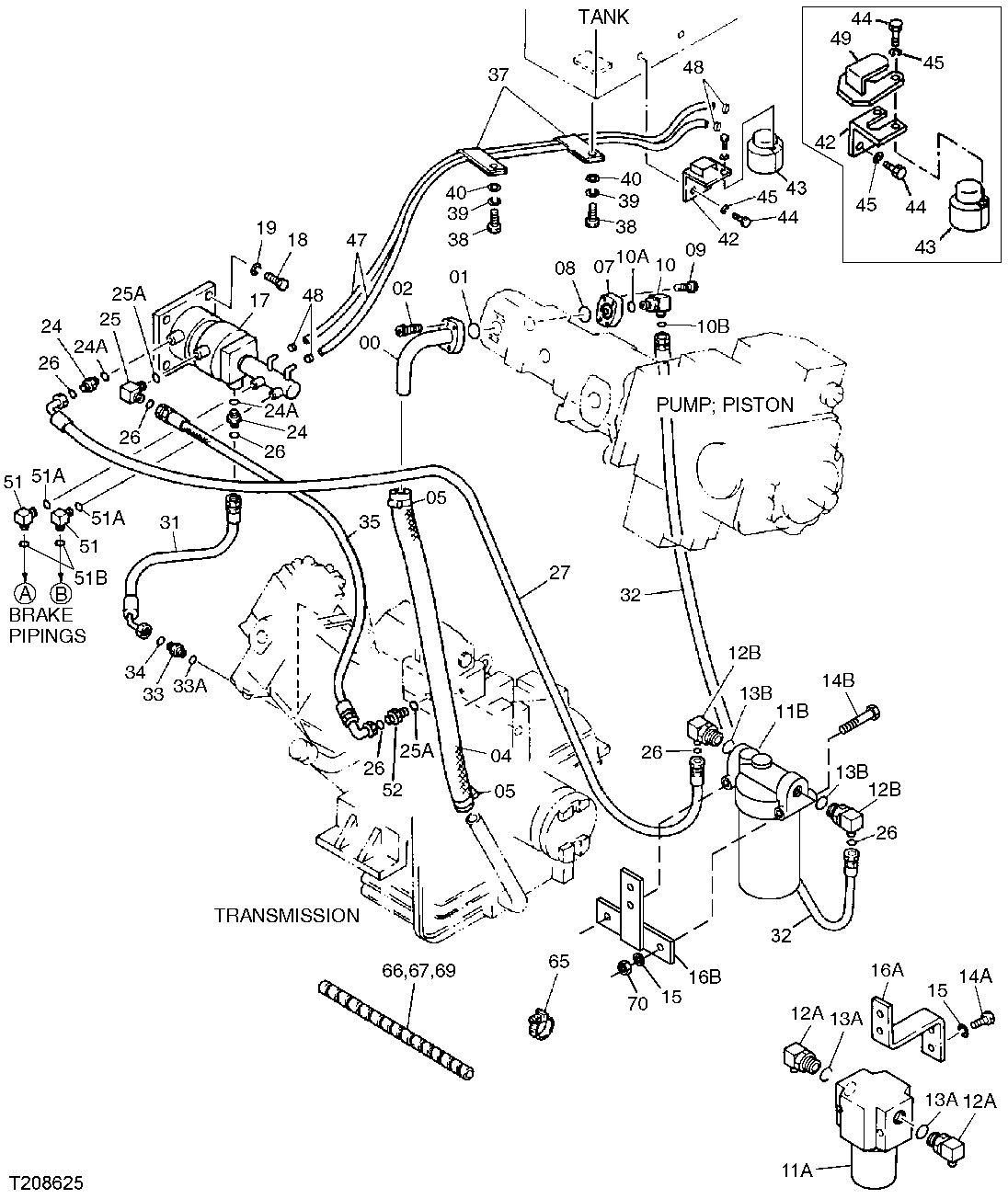

POWERSHIFT TRANSMISSION OIL LINES, FILTER AND BRAKE SYSTEM
