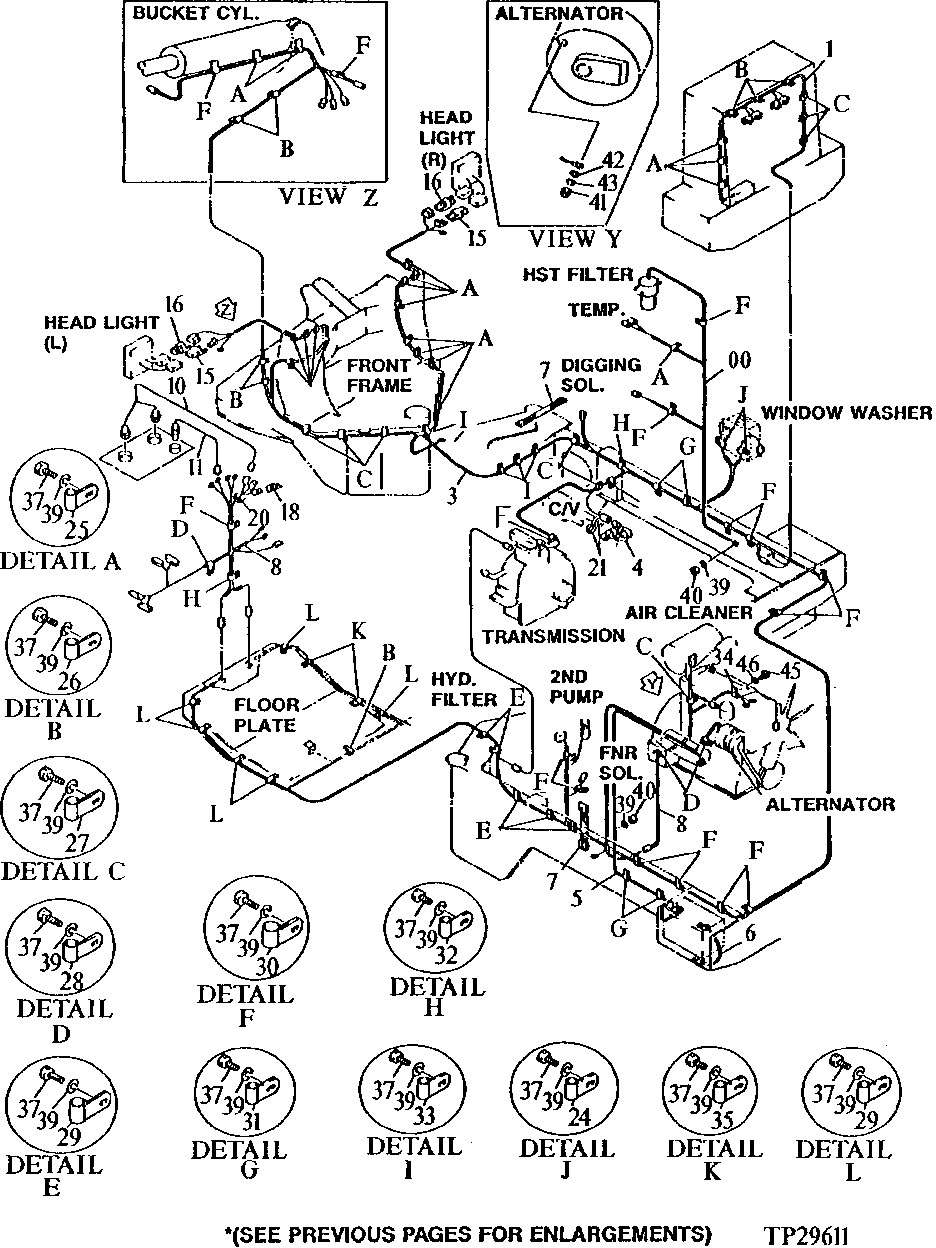

MAIN WIRING HARNESS (WITH CAB AND AIR CONDITIONING) ( - 000285)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT122637	1	Wiring Harness	-
1	AT121958	1	Wiring Harness	-
2	AT122643	1	Wiring Harness	-
3	AT121947	1	Wiring Harness	-
4	AT121956	1	Wiring Harness	-
5	AT122002	1	Cable	-
6	AR69238	1	BATTERY CABLE	-
7	R36545	1	Ground Cable	-
8	AT123105	1	Wiring Harness	-
10	AT122011	1	Wiring Lead	-
11	AT122012	1	Wiring Lead	-
15	T28585	2	Electrical Connector Assy	-
16	T28586	2	Electrical Connector Assy	-
18	TH110500	1	Diode	-
20	H77698	10	Tie Band	(SUB FOR M88199)
21	AR65293	2	Clamp	(SUB FOR AR21840, THIS APPLICATION)
24	T38377	2	Clamp	-
25	T30367	20	Clamp	-
26	TH109649	7	Clip	-
27	TH108600	9	Clip	-
28	TH108598	3	Clip	-
29	R73384	11	Clamp	(SUB FOR TH108597 OR 4190253)
30	T28949	17	Clamp	(SUB FOR TH108460 OR 4190273)
31	T28949	4	Clamp	(SUB FOR TH108458 OR 4190274)
32	T24432	2	Clamp	(SUB FOR TH108595)
33	R72659	4	Clamp	(SUB FOR TH108594 OR 4235654)
34	4215445	1	Clamp	(SUB FOR AT121981)
35	T32854	2	Clamp	(SUB FOR AT121964)
37	19M8324	66	Cap Screw	M10 X 16
38	19M7938	9	Cap Screw	M10 X 20
39	12M7066	77	Lock Washer	10 mm
40	14M7274	2	Nut	M10
41	14M7272	1	Nut	M6
42	24M7054	1	Washer	6.400 X 12 X 1.600 mm
43	12M7006	1	Lock Washer	6 mm
45	AT122017	1	Bolt	-
46	12H294	1	Lock Washer	5/8"

MAIN WIRING HARNESS (WITH CAB AND AIR CONDITIONING) ( - 000285)
