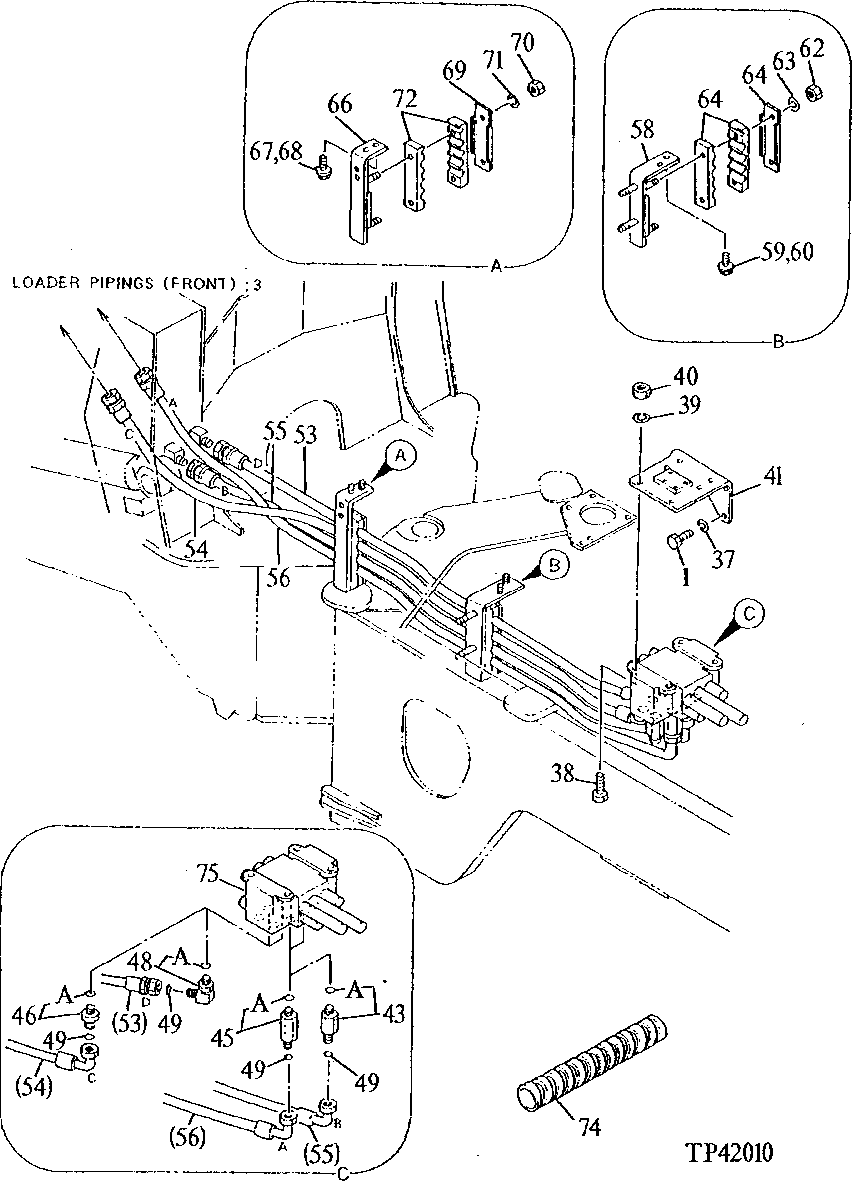

LOADER VALVE TO FRONT FRAME PLUMBING (000235 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7872	3	Cap Screw	M12 X 25
37	12H301	3	Lock Washer	1/2"
38	19M7496	4	Cap Screw	M12 X 45
39	12H301	4	Lock Washer	1/2"
40	14M7275	4	Nut	M12
41	AT122615	1	Bracket	-
43	AT121391	1	Adapter Fitting	-
45	AT121392	1	Adapter Fitting	-
46	AT121315	1	Adapter Fitting	-
48	38H1344	1	Elbow Fitting	(SUB FOR AT121317)
49	T77858	4	O-Ring	(SUB FOR TH108349)
53	AT121605	1	Hydraulic Hose	D
54	AT121606	1	Hydraulic Hose	C
55	AT121347	1	Hydraulic Hose	B
56	AT121810	1	Hydraulic Hose	A
58	AT121751	1	Bracket	-
59	19M7872	2	Cap Screw	M12 X 25
60	12H301	2	Lock Washer	1/2"
61	9730788	1	Bracket	(SUB FOR AT121796 OR 9730754)
62	14M7274	2	Nut	M10
63	12H301	2	Lock Washer	1/2"
64	AT121644	2	Clamp	-
66	AT121843	1	Bracket	-
67	19M7872	2	Cap Screw	M12 X 25
68	12H301	2	Lock Washer	1/2"
69	9730788	1	Bracket	(SUB FOR AT121796 OR 9730754)
70	14M7274	2	Nut	M10
71	12H301	2	Lock Washer	1/2"
72	AT121644	2	Clamp	-
74	-	8	Part 34	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222)
75	AT122295	1	Control Valve	(TWO-SPOOL)
75	AT122296	1	Control Valve	(THREE-SPOOL)
43A	U17409	1	O-Ring	(SUB FOR AT121227)
45A	U17409	1	O-Ring	(SUB FOR AT121227)
46A	U17409	1	O-Ring	(SUB FOR AT121227)
48A	U17409	1	O-Ring	(SUB FOR AT121227)

LOADER VALVE TO FRONT FRAME PLUMBING (000235 - )
