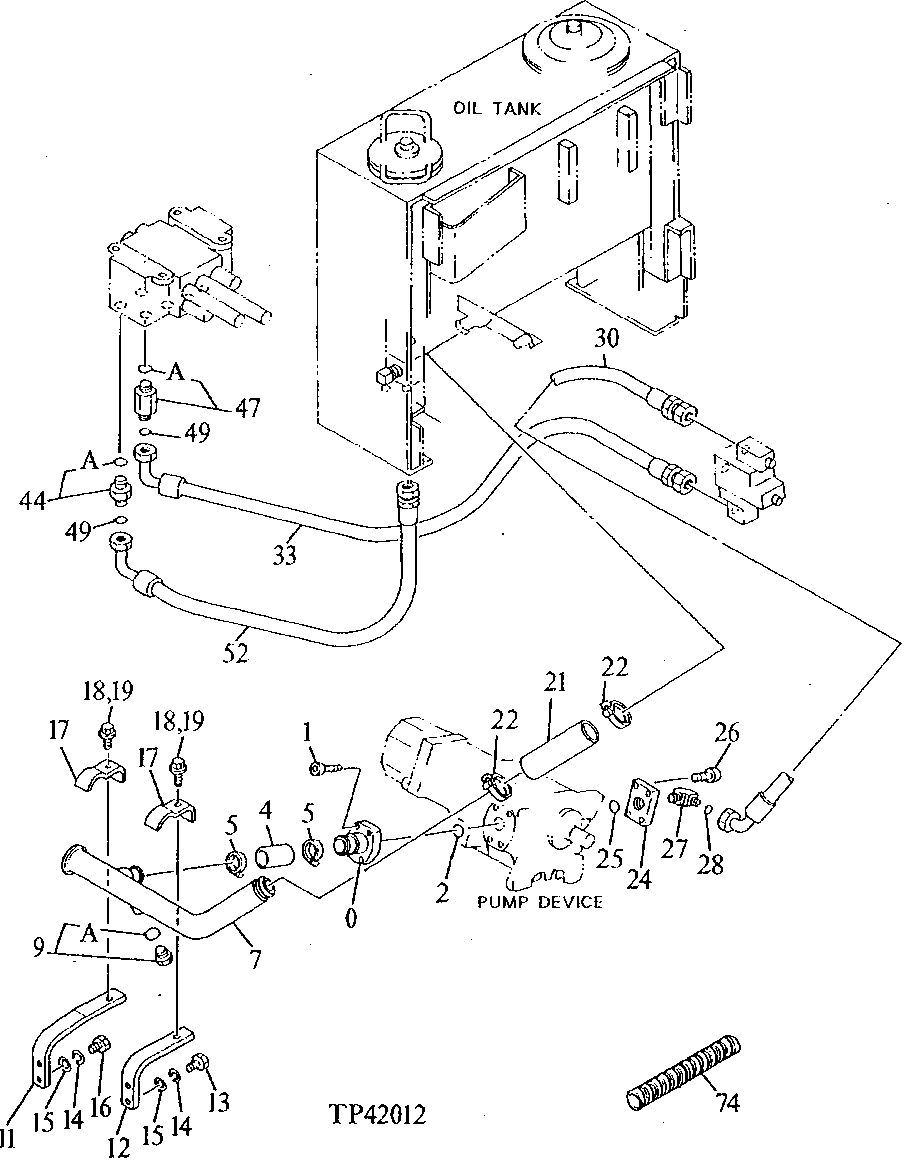

LOADER VALVE AND HYDROSTATIC PUMP SUCTION PLUMBING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT122477	1	Pipe	-
1	19M8447	4	Screw	M10 X 35
2	TH102992	1	O-Ring	-
4	TH101919	1	Hose	(CUT TO 150 MM LENGTH)
5	RE25110	2	Clamp	(SUB FOR TH103474)
7	AT122447	1	Oil Line	-
9	AT121268	1	Fitting Plug	-
11	AT122294	1	Bracket	-
12	AT122293	1	Bracket	-
13	19M7550	2	Cap Screw	M10 X 35
14	12M7066	4	Lock Washer	10 mm
15	24M7028	4	Washer	10.500 X 20 X 2 mm
16	19M7358	2	Cap Screw	M10 X 40
17	TH101030	2	Clamp	-
18	19M7817	2	Screw	M12 X 70, (SUB FOR 19M7753)
19	12H301	2	Lock Washer	1/2"
21	TH101904	1	Hose	-
22	AT105289	2	Clamp	(SUB FOR TH103473)
24	AT122292	1	Flange Fitting	-
25	AT264324	1	O-Ring	(SUB FOR TH100044)(USE IF AVAILABLE)
25	AT264324	1	O-Ring	(SUB FOR T32587, TH100044)
26	19M8440	4	Screw	M10 X 25
27	38H1048	1	Elbow Fitting	(SUB FOR AT122243)
28	T77858	1	O-Ring	(SUB FOR TH108349)
30	AT122613	1	Hydraulic Hose	-
33	AT122614	1	Hydraulic Hose	-
44	AT121316	1	Adapter Fitting	-
47	AT121391	1	Adapter Fitting	-
49	T77858	2	O-Ring	(SUB FOR TH108349)
52	AT121492	1	Hydraulic Hose	-
74	-	17	Part 34	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH), (SUB FOR AT138222)
9A	U10778	1	O-Ring	-
44A	R29936	1	O-Ring	-
47A	U17409	1	O-Ring	(SUB FOR AT121227)

LOADER VALVE AND HYDROSTATIC PUMP SUCTION PLUMBING
