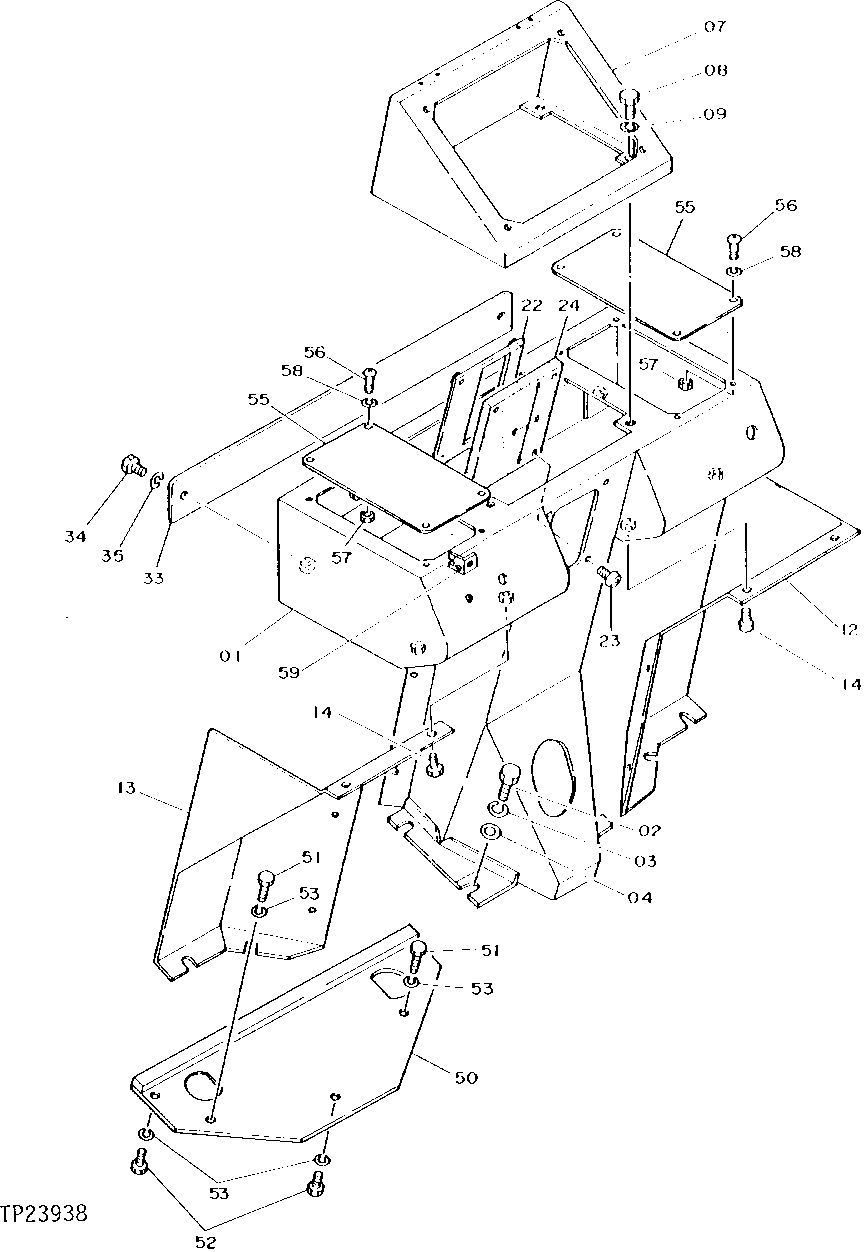

INSTRUMENT PANEL AND CONTROL MOUNTING CONSOLE (WITH CANOPY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT122929	1	Console	-
1	AT121669	1	Console	(SUB AT122929, AT122930 AND AT122931)
2	19M7402	4	Cap Screw	M10 X 25
3	12M7066	4	Lock Washer	10 mm
4	24M7028	4	Washer	10.500 X 20 X 2 mm
7	AT121707	1	Box	-
8	19M7162	4	Cap Screw	M8 X 16
9	12M7065	4	Lock Washer	8 mm
12	AT121678	1	Console	-
12	AT122930	1	Cover	-
13	AT121679	1	Console	-
13	AT122931	1	Cover	-
14	T108221	8	Screw	-
22	AT121779	1	Plate	-
23	21M7216	4	Screw	M4 X 20, (SUB FOR AT121856 OR PT14670)
24	AT121438	1	Isolator	-
33	AT121402	1	Cover	-
34	19M7139	2	Cap Screw	M8 X 20
35	12M7065	2	Lock Washer	8 mm
50	AT122136	1	Plate	-
51	19M7402	2	Cap Screw	M10 X 25
51	19M7402	4	Cap Screw	M10 X 25, (USE WITH AT122930 AND AT122931)
52	19M8451	3	Cap Screw	M10 X 14
53	12M7066	5	Lock Washer	10 mm
53	12M7066	4	Lock Washer	10 mm, (USE WITH AT122930 AND AT122931)
55	AT121983	2	Cover	-
56	-	8	Part 27	( M73681 NO LONGER AVAILABLE), (SUB FOR AT121855)
57	14M7100	8	Nut	M4
58	12M7063	8	Lock Washer	4 mm
59	AT122360	1	Bracket	-
