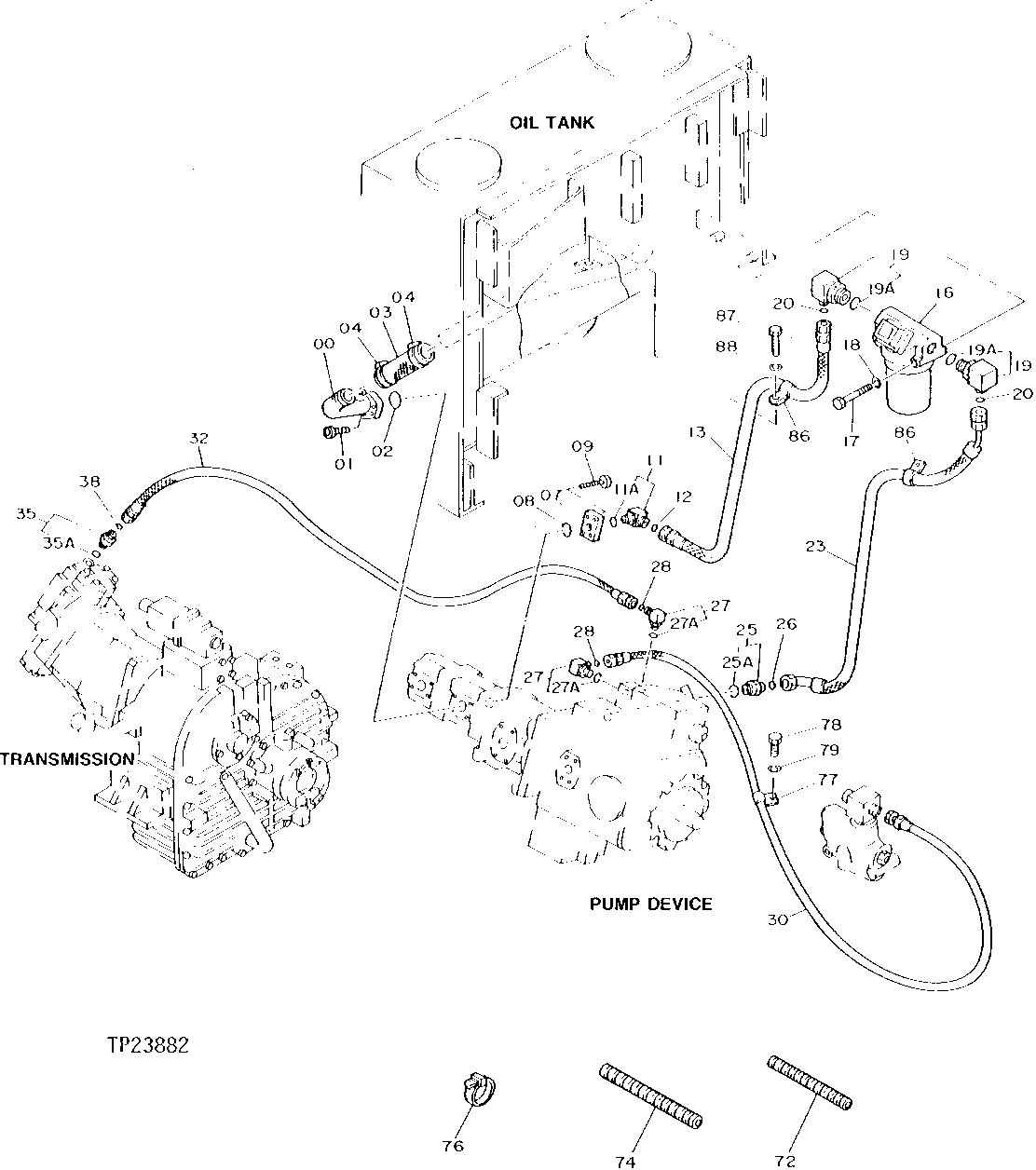

HYDROSTATIC CONTROL HOSES AND FILTER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT122446	1	Oil Line	-
1	19M8334	4	Screw	M6 X 30
2	AT264324	1	O-Ring	SUB FOR T32587, TH100044
3	AT122226	1	Hose	-
4	TY22470	2	Clamp	SUB FOR AT121266, SUB FOR AR21840, THIS APPLICATION
7	AT121437	1	Junction Block	-
8	TH103950	1	O-Ring	-
9	TH105693	4	Bolt	-
11	38H1005	1	Elbow Fitting	SUB FOR AT121309
12	T77857	1	O-Ring	SUB FOR TH108323
13	AT122343	1	Hydraulic Hose	-
16	AT121463	1	Filter	-
17	J901095	2	Bolt	SUB FOR AT121865
18	12M7066	2	Lock Washer	10 mm
19	AT121319	2	Elbow Fitting	-
20	T77857	2	O-Ring	SUB FOR TH108323
23	AT122366	1	Hydraulic Hose	-
25	38H1175	1	Adapter Fitting	-
26	T77857	1	O-Ring	SUB FOR TH108323
27	-	2	Part 22	4187189 NO LONGER AVAILABLE, SUB 38H1003 AND R28782
28	T77814	2	O-Ring	SUB FOR AT121261
30	AT122596	1	Hydraulic Hose	-
32	AT122346	1	Hydraulic Hose	-
35	38H1168	1	Adapter Fitting	SUB FOR AT122597
38	T77814	1	O-Ring	SUB FOR AT121261
73	4327315	9	Hose Guard	SUB FOR TH106022, 4133527 OR 4327293
74	-	3	Part 31	MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH, SUB FOR TH100996 OR AT138222
76	H77698	3	Tie Band	-
77	R73384	1	Clamp	SUB FOR TH108597 OR 4190253
78	19M8451	1	Cap Screw	M10 X 14
79	12M7066	1	Lock Washer	10 mm
86	T24432	2	Clamp	SUB FOR TH108595
87	19M8451	1	Cap Screw	M10 X 14
88	12M7066	1	Lock Washer	10 mm
11A	R26375	1	O-Ring	SUB FOR U10778, USE WITH AT121309 ELBOW
19A	R29936	1	O-Ring	-
27A	R76729	1	O-Ring	-
35A	R26448	1	O-Ring	-

HYDROSTATIC CONTROL HOSES AND FILTER
