Открытый узел

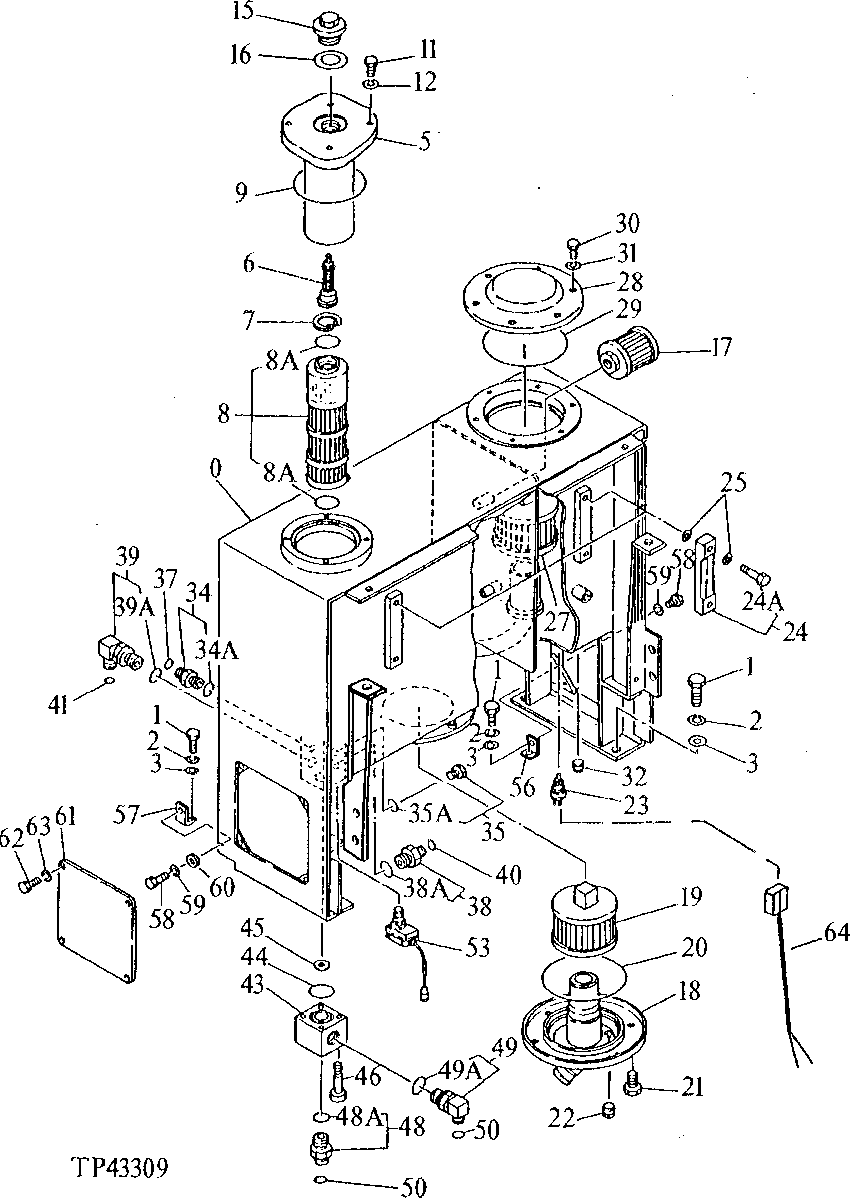

Hydraulic Oil Reservoir, Oil Filter and Switches

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	AT122399, USE IF AVAILABLE, SUB 6011333
0	6011333	1	Tank	SUB FOR AT161040
0	-	1	Part 1	SUB AT122399, AT122624, AT122625 AND (4) 19M7550
1	19M7488	4	Cap Screw	M16 X 40
2	12H294	4	Lock Washer	5/8"
3	4114405	4	Washer	SUB FOR TH101105
5	8039333	1	Line	SUB FOR AT121699
5	8044060	1	Line	SUB FOR AT122624
6	4228188	1	Flow Control Hyd. Valve	SUB FOR AT121657
7	40M1855	1	Snap Ring	-
8	4235489	1	Filter Element	SUB FOR AT121289
9	A810140	1	O-Ring	SUB FOR U46455
11	19M7550	4	Cap Screw	M10 X 35
12	12M7066	4	Lock Washer	10 mm
15	4223269	1	Pipe Plug	SUB FOR AT121495
16	449916	1	Packing	SUB FOR AT121660
16	4037888	1	O-RING	SUB FOR AT122625
17	4235490	2	Filter Element	SUB FOR AT121301
18	8042616	1	Line	SUB FOR AT122441
19	4140769	1	Filter Element	SUB FOR AT121258
20	TH100679	1	O-Ring	-
21	19M8784	6	Screw	M10 X 20, SUB FOR TH100670, 19M8356
22	942011	1	Fitting Plug	SUB FOR 94-2011 AND TH100434
23	AT123186	1	Switch	SUB FOR AT122016 AND AT87416, THERMO
24	8016441	1	LEVEL GAUGE	SUB FOR TH100674
25	449558	4	Washer	SUB FOR TH100675
27	4140769	1	Filter Element	SUB FOR AT121258
28	8023981	1	Cover	SUB FOR TH101891
29	TH100679	1	O-Ring	-
30	19M8007	6	Cap Screw	M10 X 25, SUB FOR TH101167
31	12M7066	6	Lock Washer	10 mm
32	R30298	1	Pipe Plug	SUB FOR TH101892
34	-	1	Part 35	WHEN AT121304 IS NO LONGER AVAILABLE, SUB 38H1159 AND R76729
35	U44115	1	Fitting Plug	SUB FOR AT121267
37	T77814	1	O-Ring	SUB FOR AT121261
38	AT116111	1	Adapter Fitting	ORDER 38H1161 AND R26375
38	38H1161	1	Adapter Fitting	-
39	-	1	Part 43	AT121310 NO LONGER AVAILABLE, SUB 38H1007 AND U12547
40	T77857	1	O-Ring	SUB FOR TH108323
41	T77858	1	O-Ring	SUB FOR TH108349
43	3041903	1	Manifold	SUB FOR AT121210
44	CH14701	1	O-Ring	-
45	4223812	1	Orifice	SUB FOR AT121503
46	19M8506	4	Screw	M8 X 60
48	38H1163	1	Adapter Fitting	SUB FOR AT121306, ALSO ORDER 38H1163
49	-	1	Part 53	AT121310 NO LONGER AVAILABLE, SUB 38H1007 AND U12547
50	T77858	2	O-Ring	SUB FOR TH108349
53	4223939	1	Indicator	SUB FOR AT121509
56	4259676	1	Angle	SUB FOR AT122621 AND AT123044
56	4259676	1	Angle	SUB FOR AT122621 AND AT123044
57	4259677	1	Angle	SUB FOR AT122622 AND AT123045
58	19M7872	2	Cap Screw	M12 X 25, SUB FOR TH105688
59	12H301	2	Lock Washer	1/2"
60	24M7047	2	Washer	13 X 24 X 2.500 mm
61	4237603	2	Cover	SUB FOR AT122646
62	19M7162	8	Cap Screw	M8 X 16, INCLUDES 12M7065
63	12M7065	8	Lock Washer	8 mm
64	AT87534	1	Wiring Harness	-
8A	CH13519	2	Packing	SUB FOR AT121234
24A	4100967	2	Bolt	SUB FOR TH101894
34A	R76729	1	O-Ring	-
35A	R76729	1	O-Ring	-
38A	R26375	1	O-Ring	SUB FOR U10778
39A	U12547	1	O-Ring	-
48A	U12547	1	O-Ring	-
49A	U12547	1	O-Ring	-

Hydraulic Oil Reservoir, Oil Filter and Switches

Нет текстового описания
