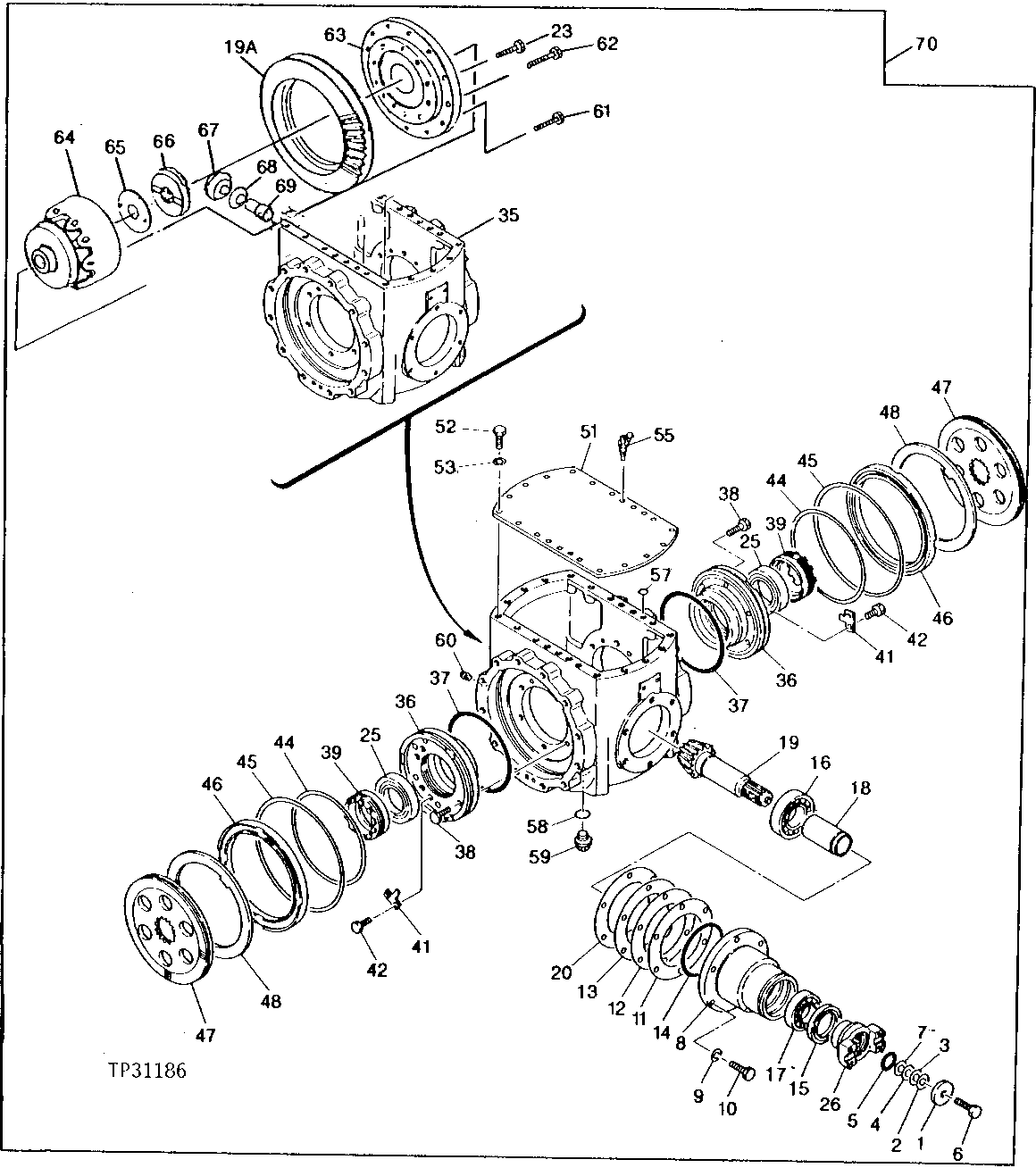

FRONT DIFFERENTIAL CASE AND COVER (STANDARD)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT122260	1	Washer	-
2	-	2	Part 2	(<service-part>AT146229</service-part> KIT, SHIM) ( AT122254 - NO LONGER AVAILABLE)
3	-	3	Part 3	(<service-part>AT146229</service-part> KIT, SHIM) ( AT122255 - NO LONGER AVAILABLE)
4	-	1	Part 4	(<service-part>AT146229</service-part> KIT, SHIM) ( AT122256 - NO LONGER AVAILABLE)
5	AT122218	1	O-Ring	-
6	AT122966	1	Bolt	(SUB FOR AT122163)
7	AT122816	2	Shim	-
8	AT122178	1	Cage	-
9	12H301	6	Lock Washer	1/2"
10	19M7403	6	Cap Screw	M12 X 35
11	-	2	Part 11	(<service-part>AT146230</service-part> KIT, SHIM) ( AT122266 NO LONGER AVAILABLE)
12	-	3	Part 12	(<service-part>AT146230</service-part> KIT, SHIM) ( AT122268 NO LONGER AVAILABLE)
13	-	2	Part 13	(<service-part>AT146230</service-part> KIT, SHIM) ( AT122267 NO LONGER AVAILABLE)
14	AT264224	1	O-Ring	(SUB FOR AT122159)
15	AT122223	1	Seal	-
16	AT133874	1	Tapered Roller Bearing	(SUB FOR AT122261 AND JD37086)
17	JD37071	1	Tapered Roller Bearing	(SUB FOR AT122270)
18	-	1	Part 18	( AT122253 NO LONGER AVAILABLE)
19	AT122404	1	Gear	-
20	AT122324	4	Shim	-
23	19M8029	12	Cap Screw	M16 X 30
25	TH100009	1	Tapered Roller Bearing	(SUB FOR AT122220)
26	AT122877	1	Yoke	-
35	AT122168	1	Housing	-
36	AT122176	2	Flange	-
37	AT122160	2	O-Ring	-
38	19M7403	12	Cap Screw	M12 X 35
39	AT122188	2	Nut	-
41	AT122500	2	Lock Washer	-
42	19M8231	1	Cap Screw	M12 X 16, (SUB FOR TH100522)
44	AT122251	2	O-Ring	-
45	AT122252	2	O-Ring	-
46	AT122187	2	Piston	-
47	AT122186	2	Plate	-
48	AT167648	2	Plate	(SUB FOR AT122185)
51	AT122190	1	Cover	-
52	19M7402	18	Cap Screw	M10 X 25
53	12M7066	18	Lock Washer	10 mm
55	AT122244	2	Bleed Valve	-
57	T111819	2	O-Ring	-
58	TH101300	1	O-Ring	-
59	AT122161	1	Fitting Plug	-
60	TH101292	2	Fitting Plug	-
61	AT122230	4	Bolt	-
62	19M7361	8	Cap Screw	M12 X 50
63	AT122173	1	Sun Gear	-
64	AT122172	1	Housing	-
65	AT122258	2	Plate	-
66	AT122179	2	Gear	-
67	AT122202	4	Pinion	-
68	AT122257	4	Plate	-
69	-	4	Part 53	( AT122250 NO LONGER AVAILABLE), (SUB COMPLETE SET OF (4) AT123251 WHEN REPLACING AT122250)
69	AT123251	4	Pin	-
70	-	1	Part 55	AT123041 NO LONGER AVAILABLE
19A	-	1	Part 20	(SUB AT122404)

FRONT DIFFERENTIAL CASE AND COVER (STANDARD)
