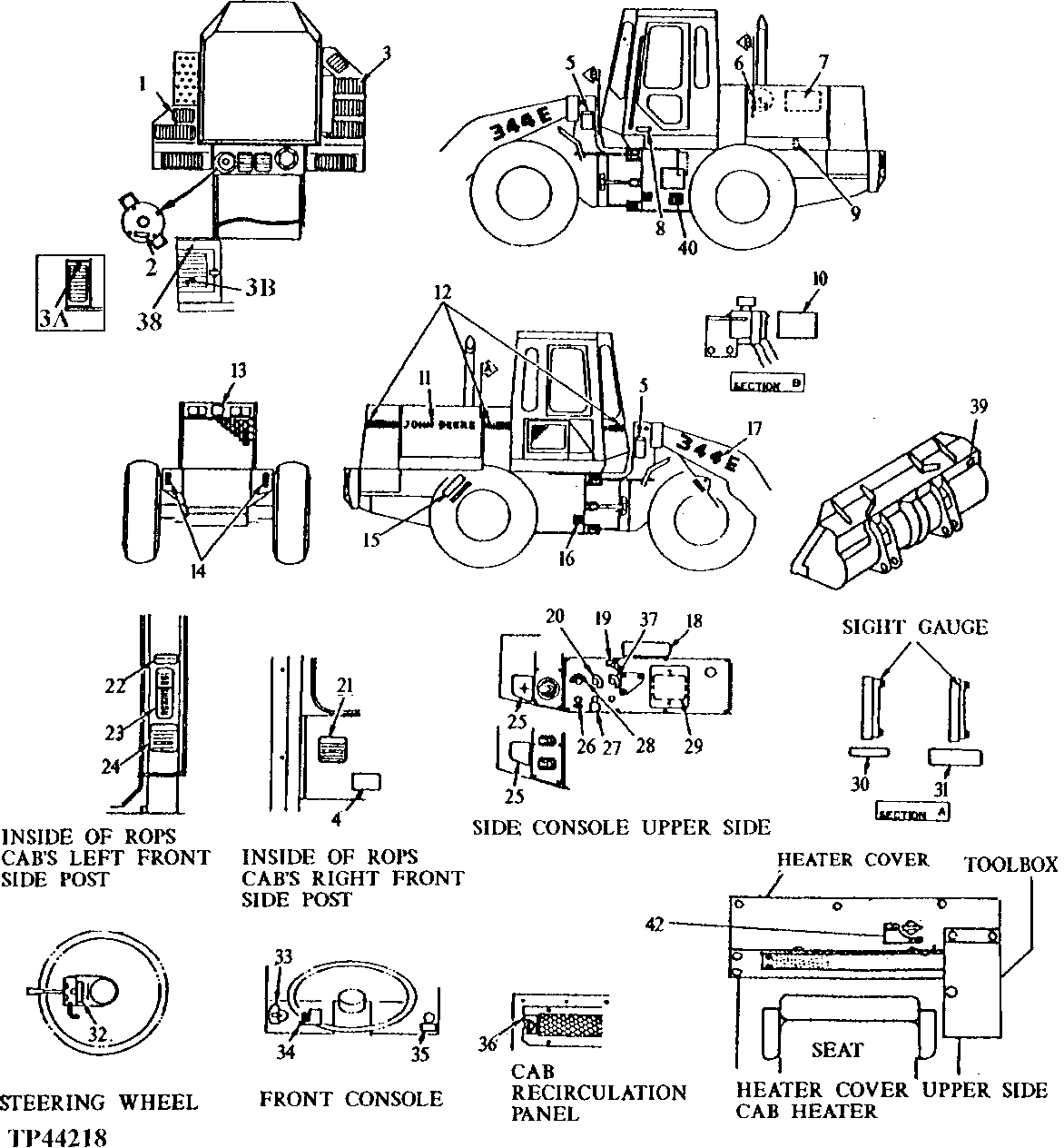

Decals And Labels (Cab)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TH106654	4	Mat	-
2	T101942	1	Label	HYDRAULIC OIL (ON TOP OF BOLTED HYDRAULIC TANK COVER)
2	T102618	2	Label	(FRENCH)
2	T102620	2	Label	(SPANISH)
3	H21259	6	Mat	-
4	T120644	1	Label	AXLE DISCONNECT (LOCATE ABOVE DISCONNECT HANDLE INSIDE OF LOADER CONTROL HOUSING)
5	T50844	2	SAFETY SIGN	SAFETY (WARNING LOCKING BAR)
5	T146436	2	Safety Sign	WARNING
6	R56902	1	Label	DRY AIR CLEANER
6	R56903	1	Label	(SPANISH)
6	CD14148	1	Label	(FRENCH)
7	AT123249	1	Label	(SUB FOR AT122697)PERIODIC MAINTENANCE
7	T135516	1	Label	(FRENCH)
7	T135517	1	Label	(SPANISH)
8	T35616	1	SAFETY SIGN	DO NOT STAND ON STEPS WARNING (REAR OF CAB LEFT SIDE GRAB BAR)
8	T147873	2	Label	STEPS
9	T146102	1	Label	ENGINE START WARNING (CENTER LOWER LEFT ENGINE SIDESHIELD), (SUB FOR T75512 OR T134459)
10	AT122818	1	Label	BRAKE OIL
11	T146272	2	Label	JOHN DEERE
11	JD5611	2	LABEL	JOHN DEERE
12	AT122498	6	Decals	STRIPE
12	T146261	4	Label	STRIPE
13	JD5620	1	Label	LEAPING DEER (CENTER TOP REAR OF GRILLE HOUSING)
14	JD5901	2	Reflector	(SUB FOR JD5578)REAR BUMPER
15	AT121960	4	Label	SLING
16	AT122056	2	Label	CENTER OF GRAVITY
17	T120465	2	Label	(ON BOOM CENTERLINE FROM BOOM PIVOT)
17	T146766	2	Label	MODEL
18	T120649	1	Label	ENGINE START AND STOP (ABOVE RIGHT CONSOLE)
19	T120654	1	Label	DEFROSTER (LOCATE TO UNDER RIGHT SIDE OF DEFROST SWITCH IN RIGHT CONSOLE)
20	AT122871	1	Label	WASHER (UPPER RIGHT SIDE OF FRONT AND REAR WIPER SWITCHES)
21	T123782	1	Safety Sign	SHUT-DOWN CAUTION (INSIDE OF CAB TO REAR OF FRONT ROPS POST)
22	T84582	1	Safety Sign	(SPANISH)
22	T146097	1	Label	(SUB FOR T84314)SEAT BELT CAUTION
22	T84580	1	Safety Sign	(FRENCH)
23	T120646	1	Label	ROPS CERTIFICATION
24	T146443	1	Safety Sign	(SUB FOR T101497)SECONDARY STEERING CAUTION (BELOW ROPS LABEL ON INSIDE OF LEFT FRONT ROPS POST)
24	T101499	1	Safety Sign	(SPANISH)
25	T120548	1	Label	SINGLE LEVER LOADER CONTROL (TO FRONT OF CONTROL LEVER BASE)
25	T120547	1	Label	DUAL LEVER LOADER CONTROL (TO FRONT OF CONTROL LEVER BASE)
3A	H21259	1	Mat	-
3B	TH111902	1	Label	-
