CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE44574	1	Seal	(SUB FOR RE24959)
2	R48685	1	Dowel Pin	(SUB FOR A120R)
3	26H72	1	Shaft Key	1/8" X 5/8"
4	T20094	1	Helical Gear	(24 TEETH)
5	-	1	Part 5	(RE56792, MARKED R108657 NO LONGER AVAILABLE) (SUB FOR RE11026 OR RE33845) (MARKED R54501, AND RE57660, MARKED R90825) (SUB RE71439 CRANKSHAFT KIT (SHORT NOSE))
5	RE71439	1	CRANKSHAFT	-
5	SE501651	1	Crankshaft Reman	(With Bearings) (REMAN FOR RE71439)
5	-	1	Part 8	RE55452, MARKED R108657 NO LONGER AVAILABLE (SUB FOR RE57661, MARKED R90825)SUB RE54883 CRANKSHAFT KIT (LONG NOSE)
5	RE54883	1	Kit	-
5	SE501649	1	Crankshaft Reman	(With Bearings) (REMAN FOR RE54883)
6	T26324	2	THRUST WASHER	-
7	R89824	1	Shaft	(SUB FOR T26323)
8	34H283	1	Spring Pin	3/16" X 1-1/8"
9	T20034	1	Bushing	-
10	AR91660	1	Gear	(55 TEETH), (MARKED R70182)
11	T26326	2	THRUST WASHER	-
12	T26327	1	Screw	-
13	T20046	1	Oil Slinger	-
14	AR67942	1	Seal	-
17	T26321	1	Bushing	-
18	AT24252	1	GEAR	(45 TEETH), (MARKED T26322)
19	34H286	1	Spring Pin	3/16" X 1-1/2"
15A	T26325	2	SCREW	-
15B	19H3183	1	CAP SCREW	1/2" X 2-1/8", HS, SAE 8, 1/2" X 2-1/8"
16A	R76126	2	Washer	-
16B	R100105	1	Washer	-

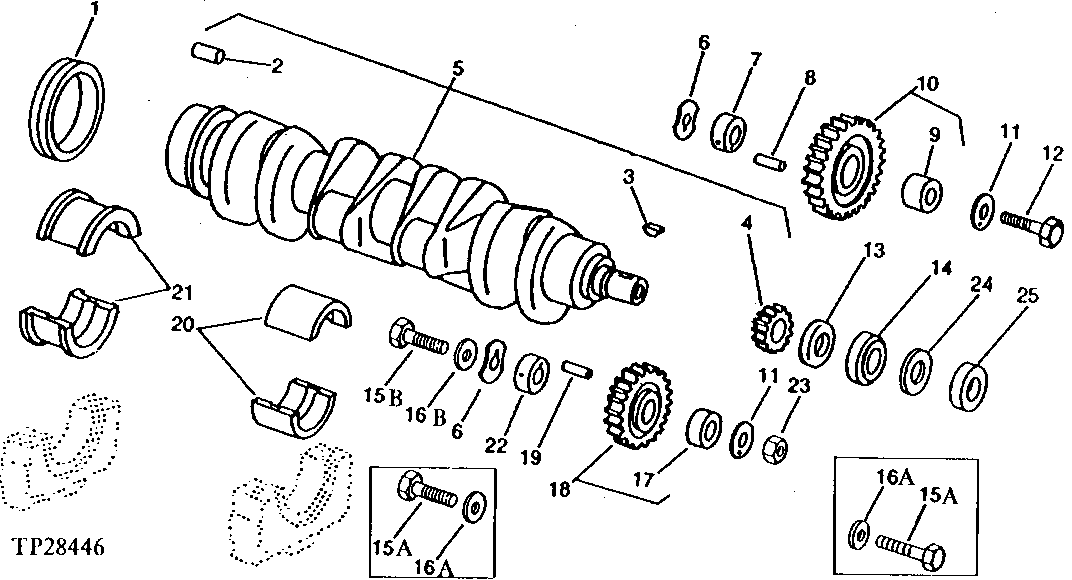

CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS

Нет текстового описания
