Открытый узел

BRAKE DISC AND PAD SET

BRAKE DISC AND PAD SET

BRAKE DISC AND PAD SET

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

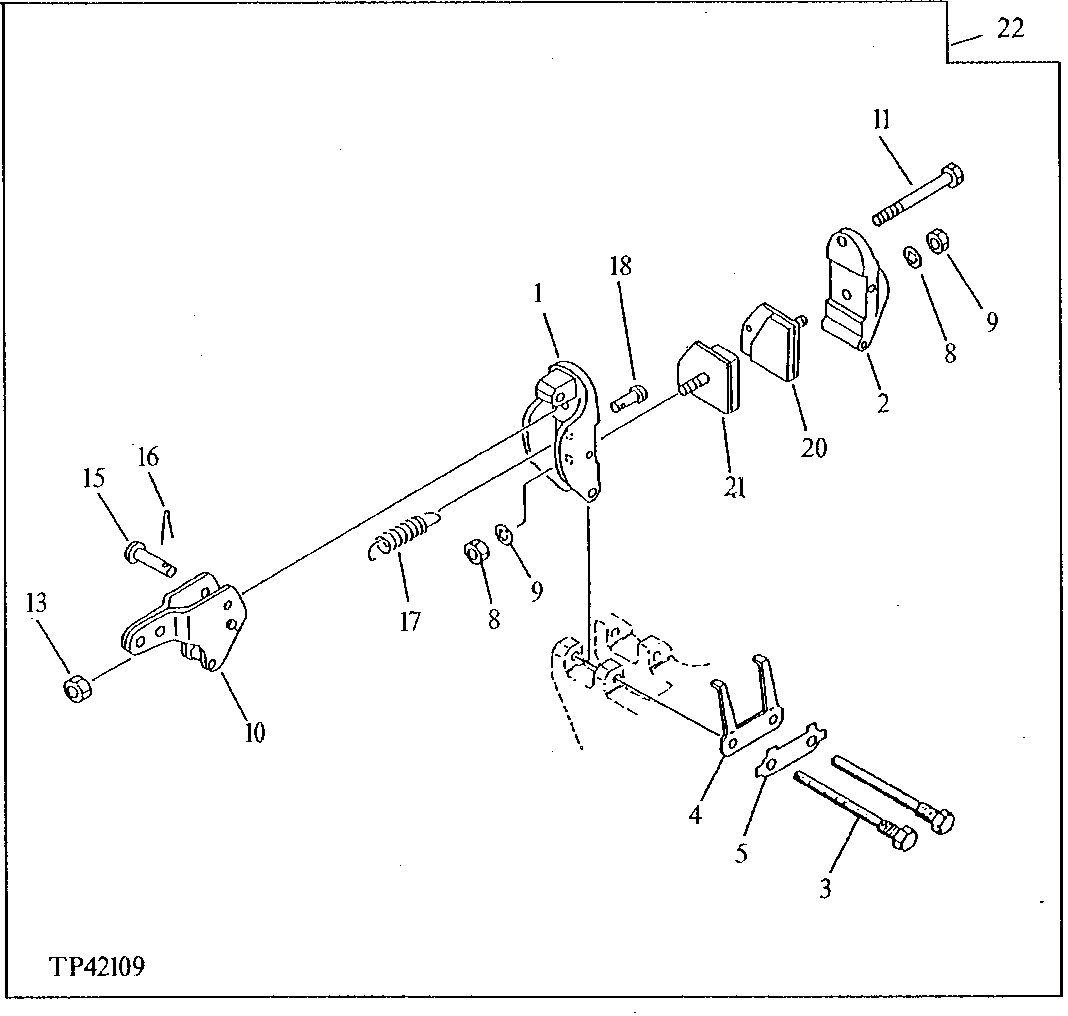

BRAKE DISC AND PAD SET

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AT122533 NO LONGER AVAILABLE, FURNISHED IN ASSEMBLY)
2	-	1	Part 2	( AT122534 NO LONGER AVAILABLE, FURNISHED IN ASSEMBLY)
3	AT122535	2	Bolt	-
4	-	1	Part 4	(KIT <service-part>AT177718</service-part> (SUB FOR <service-part>AT122551</service-part >)) ( AT122536 NO LONGER AVAILABLE, FURNISHED IN ASSEMBLY)
5	-	1	Part 5	(KIT <service-part>AT177718</service-part> (SUB FOR <service-part>AT122551</service-part >)) ( AT122532 NO LONGER AVAILABLE, FURNISHED IN ASSEMBLY)
8	-	2	Part 6	(KIT <service-part>AT177718</service-part> (SUB FOR <service-part>AT122551</service-part >)) ( AT122537 NO LONGER AVAILABLE, FURNISHED IN ASSEMBLY)
9	-	2	Part 7	(KIT <service-part>AT177718</service-part> (SUB FOR <service-part>AT122551</service-part >)) ( AT122538 NO LONGER AVAILABLE, FURNISHED IN ASSEMBLY)
10	AT122539	1	Lever	-
11	AT122540	1	Bolt	-
13	AT122542	1	Nut	-
14	-	1	Part 11	( AT122543 NO LONGER AVAILABLE, FURNISHED IN ASSEMBLY)
15	AT122544	1	Pin	-
16	11M7076	1	Cotter Pin	1.600 X 12 mm, (SUB FOR AT122545)
17	AT122546	1	Spring	-
18	AT122547	1	Anchor	-
20	-	1	Part 16	(KIT <service-part>AT177718</service-part> (SUB FOR <service-part>AT122551</service-part >))
21	-	1	Part 17	(KIT <service-part>AT177718</service-part> (SUB FOR <service-part>AT122551</service-part >))
22	AT177717	1	Actuator	(SUB FOR AT121458)
