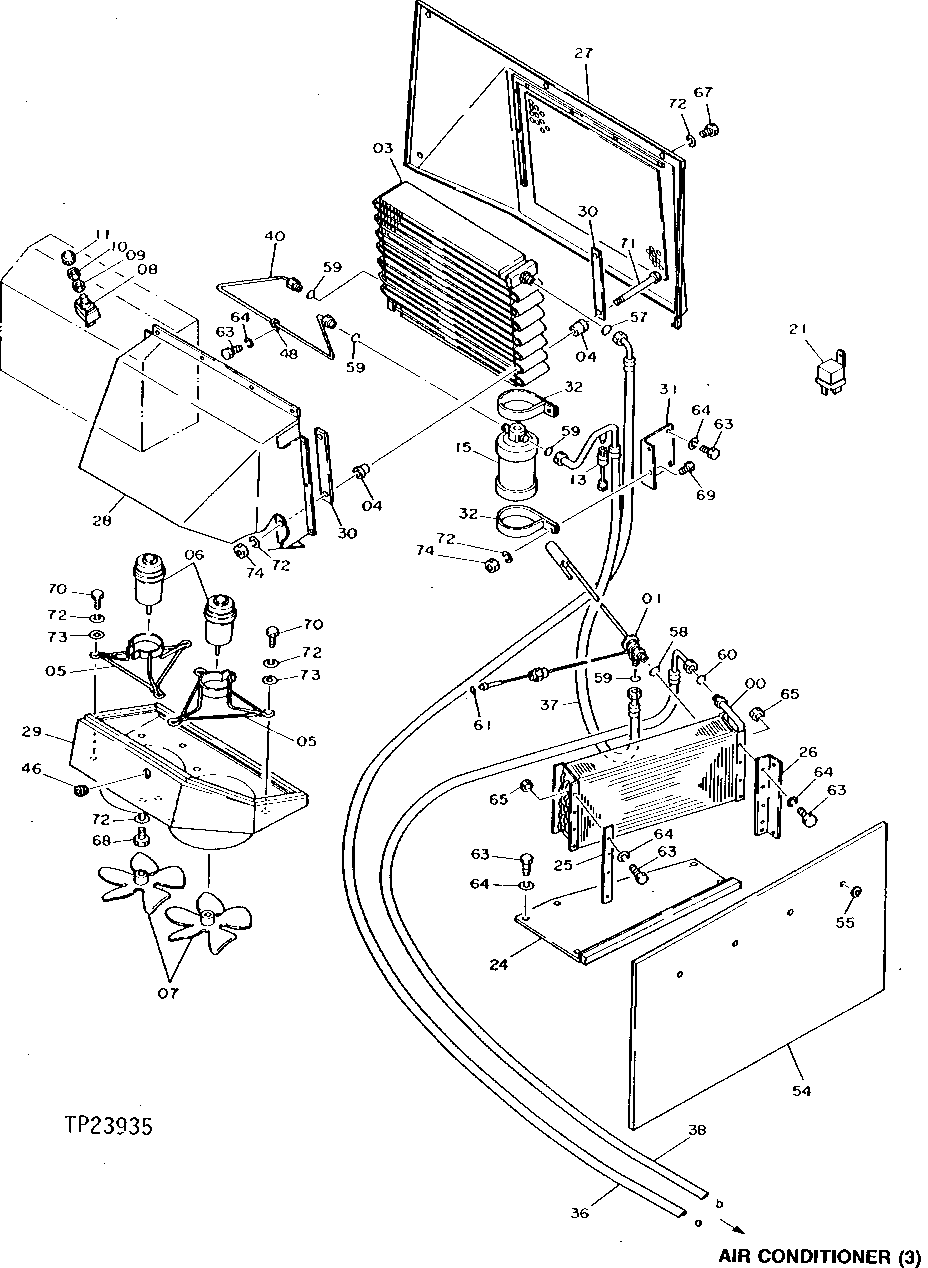

AIR CONDITIONING CONDENSER, EVAPORATOR, HOSES AND MOTORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT62561	1	HEAT EXCHANGER	-
1	AT60277	1	THERMOSTATIC CONTROL VALVE	-
3	AT83363	1	Vapor Condenser	-
4	AT116162	8	Isolator	-
5	AT83366	2	Support	-
6	AT178828	2	Electric Motor	(SUB FOR AT74836)
7	AT83367	2	Fan	-
8	AT61602	1	SWITCH	THERMOSTAT
9	E46066	1	Nut	-
10	R44165	1	Lock Nut	-
11	AL58295	1	Knob	(SUB FOR AR49969 ) (SUB FOR AR69370, THIS APPLICATION)
13	AT63266	1	SWITCH	LOW PRESSURE
15	AT122370	1	Receiver-Dryer	-
21	AT75769	1	Relay	-
24	AT121784	1	Plate	-
25	AT121449	1	Bracket	-
26	AT121994	1	Bracket	-
27	AT121668	1	Cover	-
28	AT121684	1	Box	-
29	AT121685	1	Box	-
30	AT121361	2	Strap	-
31	AT122021	1	Bracket	-
32	AT122018	2	Band	-
36	AT122368	1	Hose	-
37	AT122313	1	Refrigerant Hose	-
38	AT122918	1	Hose	-
40	AT122212	1	Oil Line	-
46	AT121758	1	Grommet	-
48	TH104034	1	Clamp	-
54	AT121980	1	Mat	-
55	AT121962	11	Spring Washer	-
57	P50883	2	Ring	-
58	P51212	1	O-Ring	-
59	R10093	2	O-Ring	-
60	R33259	2	O-Ring	-
61	R34812	1	O-Ring	-
63	19M6614	18	Cap Screw	M6 X 12
64	12M7006	18	Lock Washer	6 mm
65	14M7272	8	Nut	M6
67	19M7865	4	Screw	M8 X 16
68	19M7162	3	Cap Screw	M8 X 16
69	19M7139	2	Cap Screw	M8 X 20
70	19M7163	6	Cap Screw	M8 X 25
71	19M7997	4	Cap Screw	M8 X 110
72	12M7065	19	Lock Washer	8 mm
73	24M7055	6	Washer	8.400 X 16 X 1.600 mm
74	14M7273	2	Nut	M8

AIR CONDITIONING CONDENSER, EVAPORATOR, HOSES AND MOTORS
