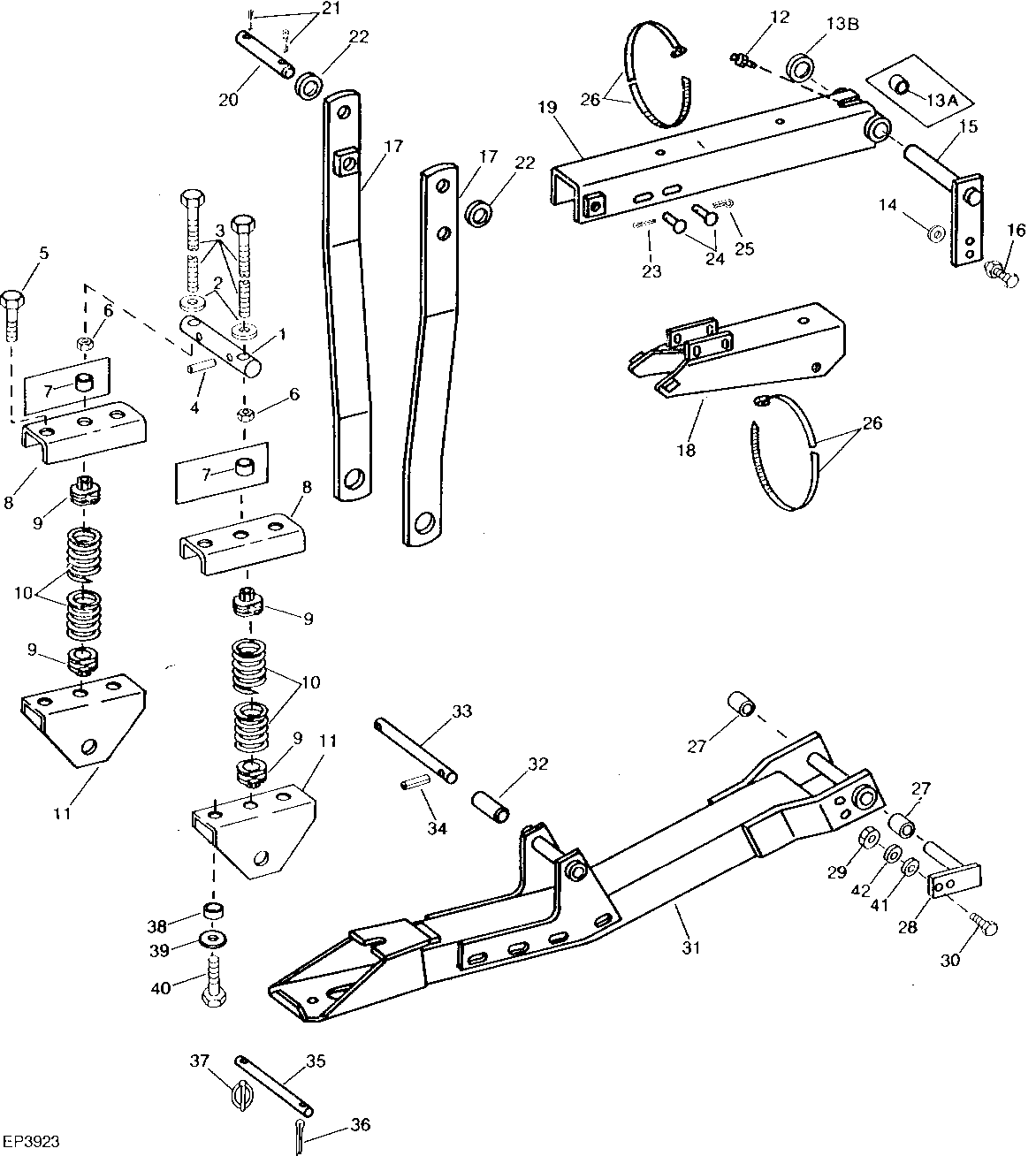

PLATFORM FLOAT SPRINGS AND LIFT ARMS [02F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	E67332	2	PIN FASTENER	-
2	24M7241	4	Washer	17 X 34 X 4 MM, (SUB FOR T40728)
3	E66098	4	Bolt	5/8" X 18"
4	34H385	4	Spring Pin	1/4" X 1-3/4"
5	19H1833	8	Cap Screw	5/8" X 1-1/4"
6	14H821	4	Nut	5/8"
7	28H2499	4	Bushing	0.742" X 1.050" X 5/8"
8	E64556	4	CHANNEL	-
9	E67400	24	PLUG	(MARKED N164538)
10	E64562	12	SPRING	-
11	E76393	4	CLEVIS	-
11	E64557	4	CLEVIS	(SUB E76393, (3) 19H2710, (3) R3020N AND (3) 24M7241)
12	JD7819	2	Lubrication Fitting	1/4", STRAIGHT
14	24H1909	2	Washer	13/32" X 1-3/8" X 1/4"
15	AE36650	2	PIN	-
16	19M7550	2	Cap Screw	M10 X 35 (HS, HEAD MARKED 10.9)
16	M82222	2	Nut	M10
17	AE43504	4	SUPPORT	-
18	AE38494	2	CHANNEL	-
19	AE43503	2	LIFT ARM	-
20	W22373	2	PIN FASTENER	3/4" X 5"
21	11M7038	4	Cotter Pin	6.300 X 40 MM
22	24H1265	4	Washer	13/16" X 1-1/4" X 0.060"
23	11M7032	2	Cotter Pin	5 X 50 MM
24	RV686A	4	PIN FASTENER	1/2" X 3"
25	J16931	2	Pin	-
26	H113196	2	Tie Band	(SUB FOR R76477)
27	G6889E	4	BUSHING	-
28	AE43073	2	PIN	-
29	E50102	2	Lock Nut	3/8"
30	19H3239	2	Cap Screw	3/8" X 1-1/4" (HS, SAE 8)
31	AE43501	1	LIFT ARM	R.H.
31	AE43502	1	LIFT ARM	L.H.
32	28H1695	2	Bushing	1.278" X 1.660" X 1-1/2"
33	E72792	2	PIN FASTENER	1-1/4" X 8.071"
34	34H357	4	Spring Pin	3/8" X 2-1/2"
35	32843	2	PIN	1" X 7.811", (SUB FOR N130708)
36	11M7038	2	Cotter Pin	6.300 X 40 MM
37	AA21292	2	Quick Lock Pin	-
38	R3020N	12	Bushing	-
39	24M7241	12	Washer	17 X 34 X 4 MM, (SUB FOR T40728)
40	19H2710	12	Cap Screw	5/8" X 1-3/4" (HS, SAE 8)
41	N109575	2	Washer	-
42	24H1909	2	Washer	13/32" X 1-3/8" X 1/4"
13A	E17669	2	BUSHING	1-25/64" X 1.660" X 1"
13B	24H1494	16	Washer	1-9/32" X 1-3/4" X 0.134"
