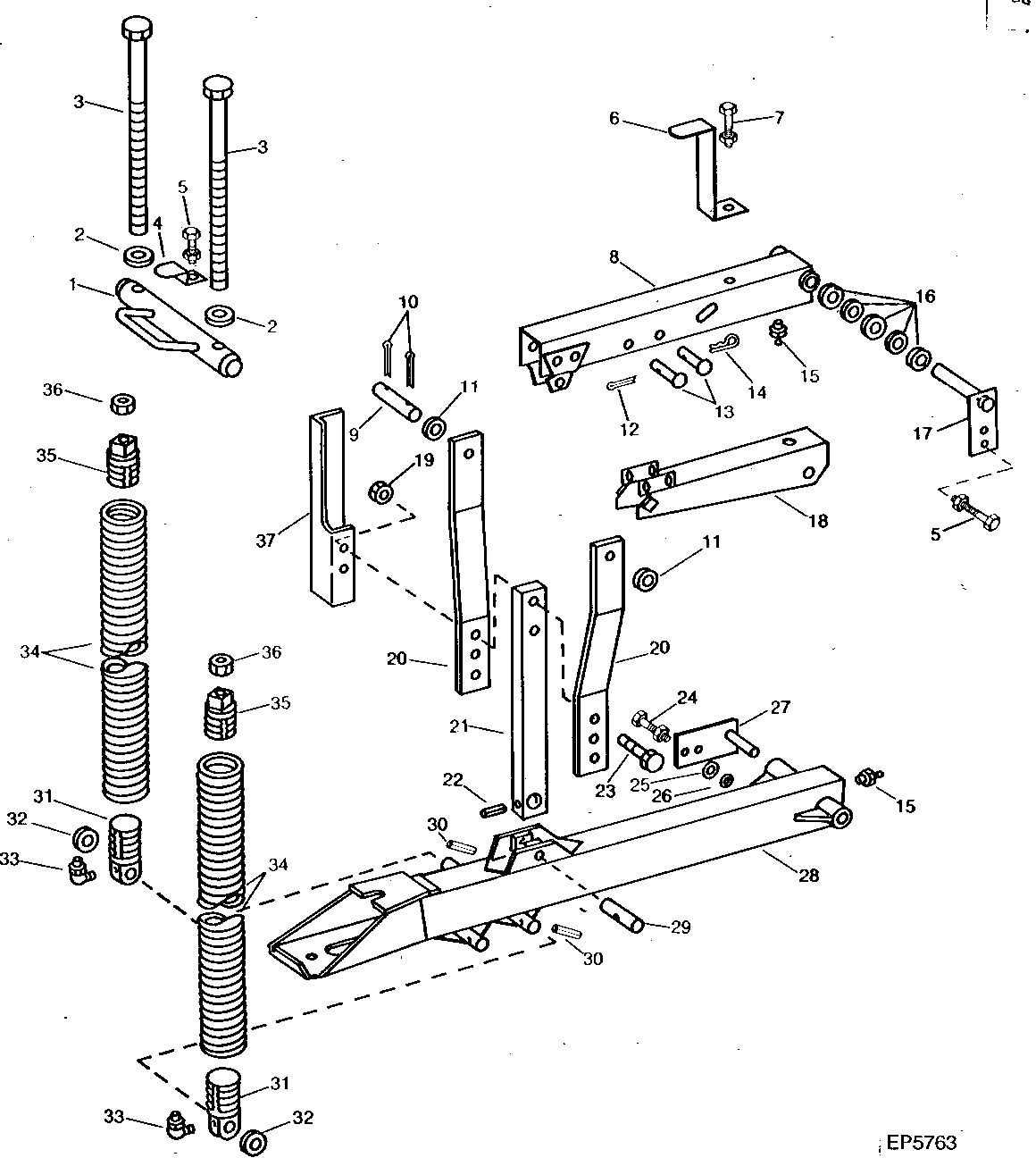

PLATFORM FLOAT SPRINGS AND LIFT ARMS [02F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE38038	2	PIN FASTENER	-
2	24M7241	4	Washer	17 X 34 X 4 MM, (SUB FOR T40728)
3	E66098	4	Bolt	5/8" X 18"
4	E57579	2	CLIP	-
5	19M7662	4	Cap Screw	M10 X 30 (HS, HEAD MARKED 10.9)
5	M82222	4	Nut	M10
6	E64878	2	STRAP	-
7	19M7662	2	Cap Screw	M10 X 30 (HS, HEAD MARKED 10.9)
7	E63526	2	Nut	M10
8	AE33564	2	ARM	UPPER
9	W22373	2	PIN FASTENER	3/4" X 5"
10	11M7038	4	Cotter Pin	6.300 X 40 MM
11	24H1265	4	Washer	13/16" X 1-1/4" X 0.060"
12	11M7028	2	Cotter Pin	5 X 32 MM
13	RV686A	4	PIN FASTENER	1/2" X 3"
14	J16931	2	Pin	-
15	JD7844	1	Lubrication Fitting	1/4", STRAIGHT, (SUB FOR JD7797)
16	24H1494	10	Washer	1.380" X 1.660" X 0.690"
17	AE36650	2	PIN	UPPER ARM
18	AE38494	2	CHANNEL	-
19	14H1039	4	Nut	5/8"
20	E56784	4	STRAP	UPPER
21	E56476	2	BAR	LOWER
22	M81896	2	Spring Pin	1/4" X 1-1/2", (SUB FOR M41192)
23	19H3107	2	Cap Screw	5/8" X 2-3/4" (HS, SAE 8)
24	19H3239	2	Cap Screw	3/8" X 1-1/4" (HS, SAE 8)
24	E50102	2	Lock Nut	3/8"
25	N109575	2	Washer	13/32" X 3/4" X 0.280"
26	24H1909	2	Washer	13/32" X 1-3/8" X 1/4"
27	AE36650	2	PIN	LOWER ARM
28	AE41494	2	LIFT ARM	LOWER (AUGER PLATFORMS)
29	E61531	2	PIN	3/4" X 2.380"
30	34M7070	4	Spring Pin	10 X 45 MM, (SUB FOR T45155)
31	E63936	4	PLUG	LOWER
32	24H1262	4	Washer	1-13/64" X 2" X 0.120"
33	JD7806	4	Lubrication Fitting	1/4", 90°
34	E69115	4	SPRING	-
35	E63172	4	PLUG	UPPER
36	14H821	4	Nut	5/8"
37	AE48068	1	CHANNEL	INSIDE OF L.H. LIFT BAR, (SUB FOR E76404)
37	E56784	1	STRAP	(PART OF AE48068)
