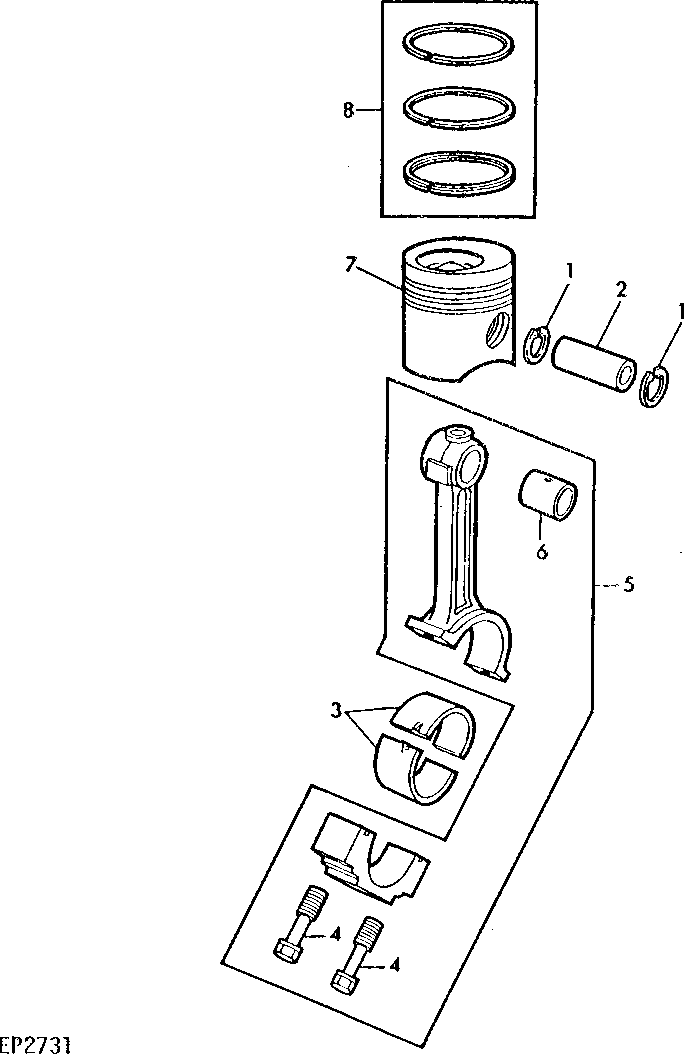

PISTON/CONNECTING ROD (SERIAL NO. -809840) [01C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54114	8	Snap Ring	(PKG. OF 2)
1	M41029	8	Snap Ring	(PKG. OF 6)
2	R125754	4	Piston Pin	(SUB FOR R51731)
2	R124230	4	Piston Pin	(SUB FOR R56188)
3	RE27358	1	Bearing	I.D.=-0.508MM (.020")(SET OF TWO R87754) (SUB FOR AR76130) (SET OF TWO R62074)
3	RE27364	1	BEARING KIT	I.D.=-0.762MM (.030")(SET OF TWO R87757) (SUB FOR AR76131) (SET OF TWO R62075)
3	RE27349	1	KIT	I.D.=-0.254MM (.010")(SET OF TWO R87748) (SUB FOR AR76128) (SET OF TWO R62072) AND (SUB FOR AR76129) (SET OF TWO R62073)
3	RE27348	4	Bearing Kit	I.D.=STANDARD (SET OF TWO R83379) (SUB FOR AR71080) (SET OF TWO R58980)
3	RE27364	1	BEARING KIT	I.D.=-0.762MM (.030")(SET OF TWO R87757) (SUB FOR AT21128) (SET OF TWO T23572)
3	RE27358	1	Bearing	I.D.=-0.508MM (.020")(SET OF TWO R87754) (SUB FOR AT21126) (SET OF TWO T23570)
3	RE27349	1	KIT	I.D.=-0.254MM (.010") SET OF TWO R87748) (SUB FOR AT21122) (SET OF TWO T23566) AND (SUB FOR AT21124) (SET OF TWO T23568)
3	RE27348	4	Bearing Kit	I.D.=STANDARD (SET OF TWO R83379) (SUB FOR AT21138) (SET OF TWO T20011)
4	R80033	8	Cap Screw	-
5	RE16495	4	CONNECTING ROD	(MARKED R80034)
5	RE16494	4	CONNECTING ROD	(MARKED R80032) (SUB RE42733)
6	R55647	4	BUSHING	-
6	R57451	4	BUSHING	-
7	-	1	Part 18	(ORDER RE24458)
7	-	1	Part 19	(ORDER RE22678)
8	RE15674	4	PISTON RING KIT	(PKG. 0F 3)

PISTON/CONNECTING ROD (SERIAL NO. -809840) [01C18]
