HYDROSTATIC TRANSMISSION FRONT PUMP [02A21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

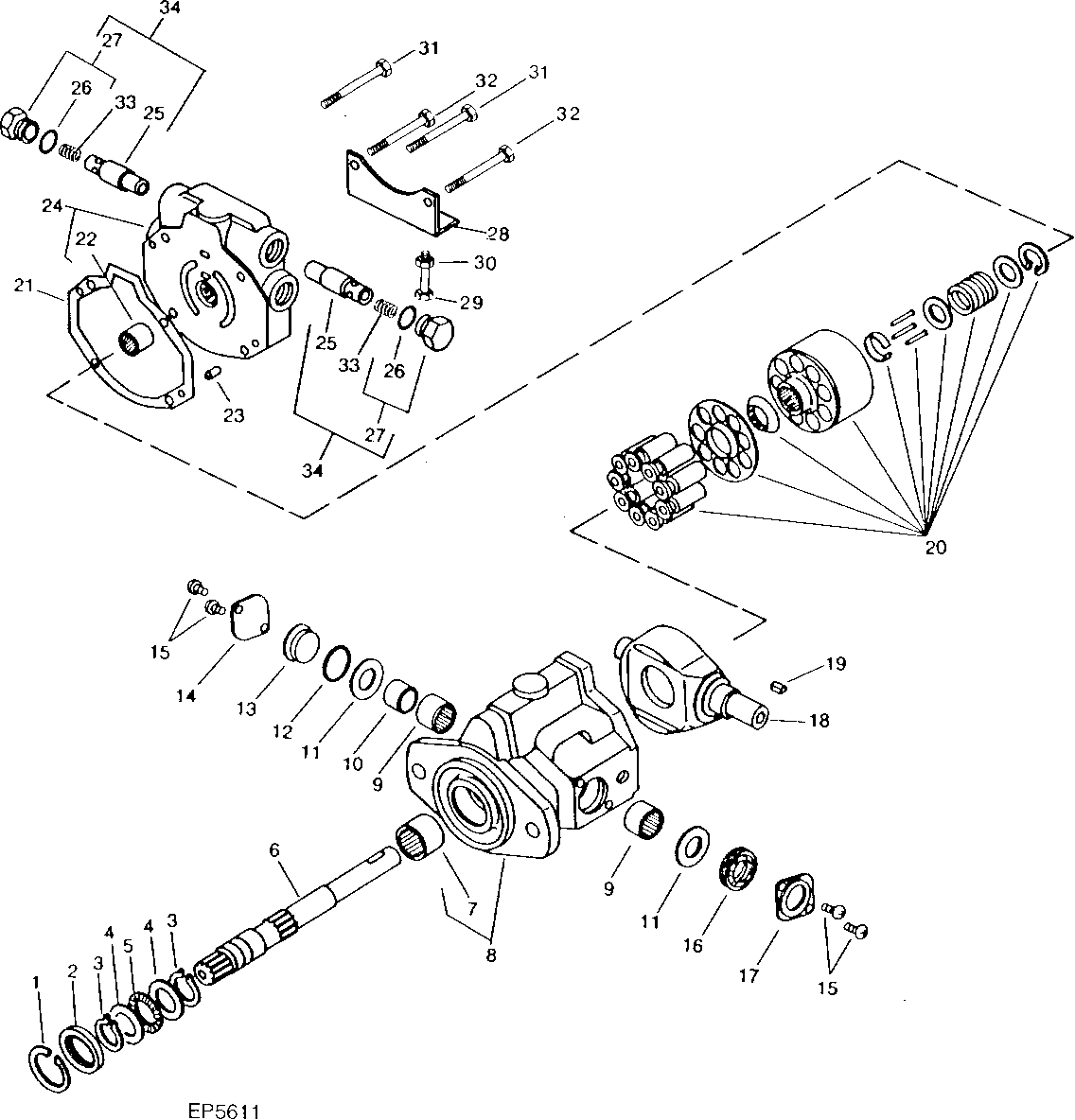

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N51168	1	Snap Ring	-
2	M83430	1	Spacer	-
3	M42702	2	Snap Ring	-
4	E57805	2	Thrust Bearing Race	(SUB FOR E55761)
5	JD9961	1	Thrust Bearing	(SUB FOR AE33317)
6	M83432	1	Drive Shaft	-
7	AE38359	1	Bearing	-
8	AE45472	1	HOUSING	-
9	JD8813	2	Needle Bearing	-
10	E65261	1	Bearing Race	-
11	M83438	2	WASHER	-
12	R1138R	1	O-Ring	-
13	M83434	1	COVER	-
14	M83426	1	COVER	-
15	21H1300	4	SCREW	0.190" X 3/8", (SUB FOR M83439)
16	E65252	1	Seal	-
17	M83435	1	COVER	-
18	E65262	1	SWASH PLATE	-
19	H64374	1	Shaft Key	-
20	AE46588	1	KIT	ROTATING, (SUB FOR AE35703)
21	E65248	1	Gasket	-
22	JD8806	1	Needle Bearing	-
23	R42882	2	Dowel Pin	(SUB FOR E18044)
24	AE45473	1	COVER	-
25	AE46594	2	RELIEF VALVE	(SUB FOR AE39231) (SUB AE49264)
26	N130510	2	O-Ring	-
27	AE48670	2	Fitting Plug	-
28	E72991	1	ANGLE	-
29	19H2676	2	Cap Screw	3/8" X 1" (HS, SAE 8)
30	14H1076	2	Nut	3/8"
31	19H3031	2	Cap Screw	3/8" X 2-1/2" (HS, SAE 8)
32	19H3065	2	Cap Screw	3/8" X 2" (HS, SAE 8)
33	E79612	2	Compression Spring	-
34	AE49264	2	KIT	(SUB FOR AE39372)
..	AE46586	1	HYDRAULIC PUMP	(SUB FOR AE44652) FRONT
..	AE45471	1	SEAL KIT	(SUB FOR AE45474)

HYDROSTATIC TRANSMISSION FRONT PUMP [02A21]
