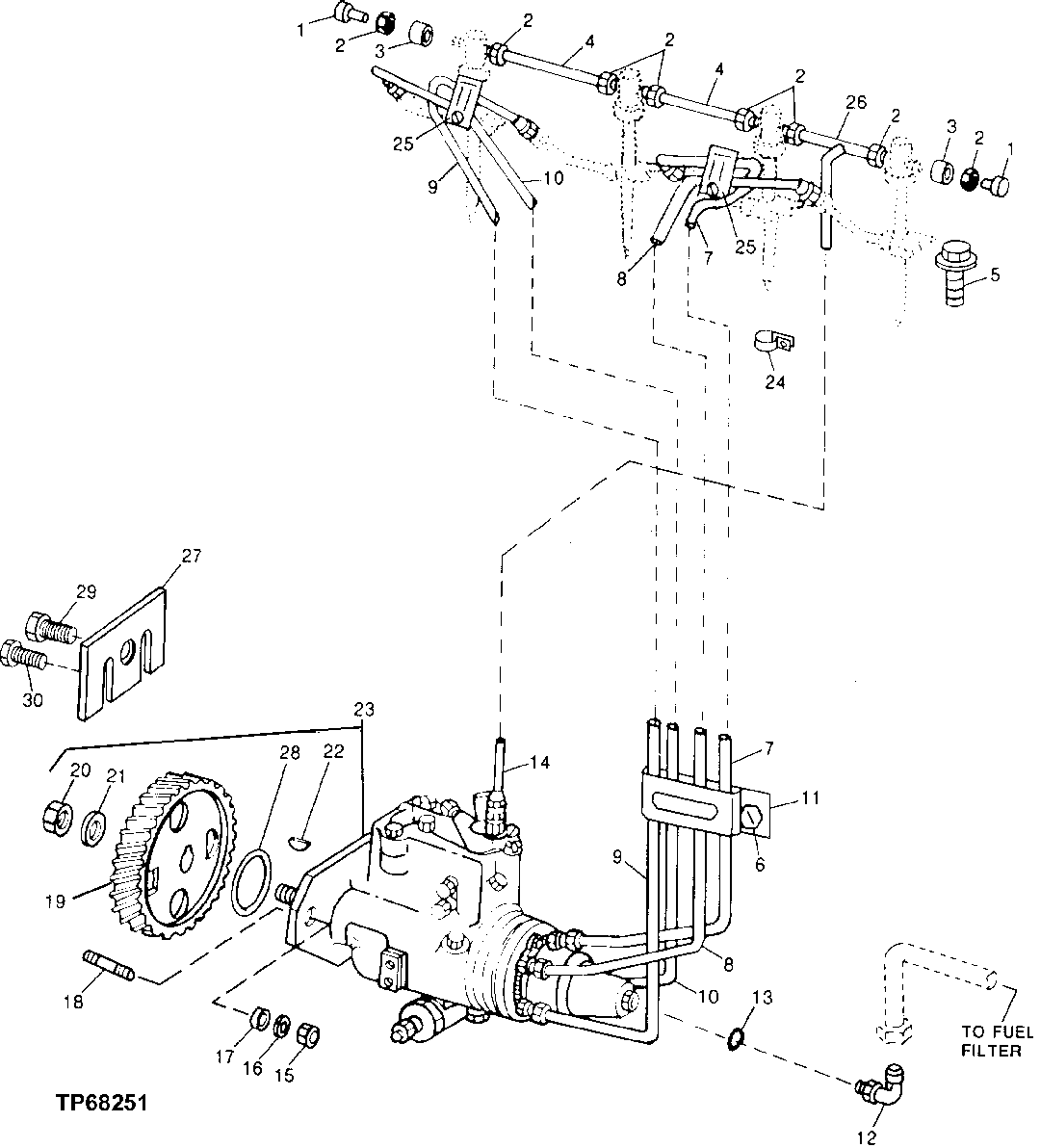

FUEL INJECTION SYSTEM (3830) (ENGINE SERIAL NO. 300000- ) [01G12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR85519	2	Plug	(SUB FOR 16H658, THIS APPLICATION)
2	R51937	6	Tube Nut	-
2	R123593	2	Tube Nut	(LEAK-OFF)
3	R51936	8	Sealing Washer	-
4	R66090	2	Tube	-
5	R101201	4	Cap Screw	-
6	19M7300	1	Cap Screw	M6 X 10
7	RE43286	1	Fuel Line	NO. 3
7	RE53874	1	Fuel Line	NO. 3
8	RE53873	1	Fuel Line	NO. 4
8	RE43287	1	Fuel Line	NO. 4
9	RE43285	1	Fuel Line	NO. 2
9	RE53873	1	Fuel Line	NO. 2
10	RE43284	1	Fuel Line	NO. 1
10	RE53872	1	Fuel Line	NO. 1
11	RE19799	1	Clamp	-
12	RE56322	1	Tee Fitting	(SUB FOR AT32333)
13	R26286	1	O-Ring	-
14	R35352	1	Fitting	-
15	14H785	3	Nut	5/16"
16	12H303	3	Lock Washer	5/16"
17	T27860	3	Washer	-
18	T23442	3	Stud	-
19	R104907	1	Gear	(48-TEETH)
20	R91360	1	Nut	-
21	R132874	1	Washer	(SUB FOR R48600)
22	26H10	1	Shaft Key	5/32" X 5/8"
23	RE40611	1	FUEL INJECTION PUMP	(A) (STANADYNE NO. )
24	T29969	1	Clamp	-
25	RE19797	2	Clamp	-
25	19M7300	2	Cap Screw	M6 X 10
26	AR89852	1	Fuel Line	LEAK-OFF
27	-	1	Part 33	( R100163 NO LONGER AVAILABLE) (USE TO REMOVE RE40611 FUEL INJECTION PUMP)
28	R502076	1	O-Ring	(SUB FOR R89944)
29	19H2898	1	Cap Screw	1/2" X 1-1/4"
30	19M7320	2	Cap Screw	M6 X 40

FUEL INJECTION SYSTEM (3830) (ENGINE SERIAL NO. 300000- ) [01G12]
