Открытый узел

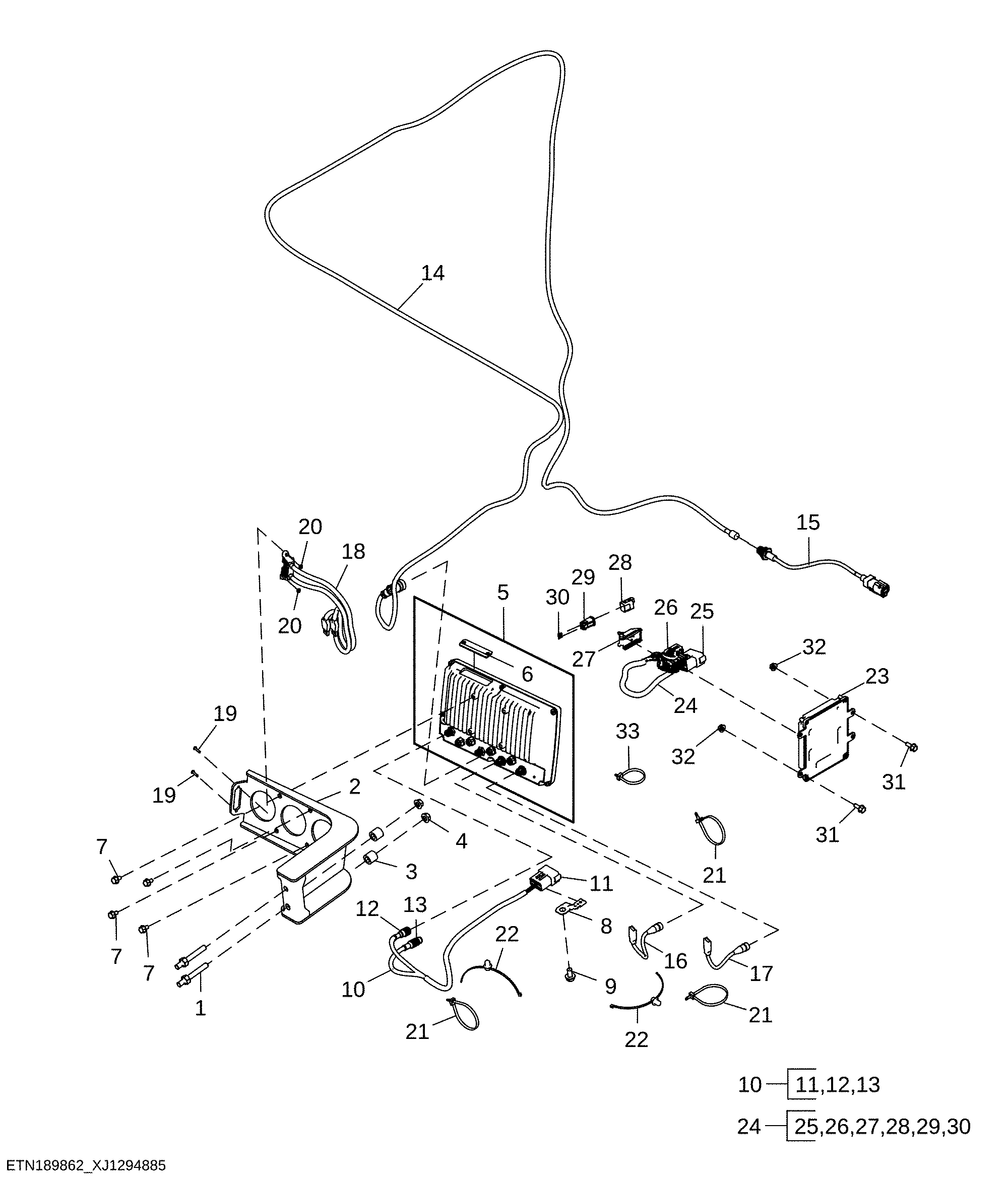

Timbermatics Maps, Standard (381718 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T433258	2	Rod	-
2	AT486649	1	Bracket	XMPC Monitor
3	T264057	2	Bushing	-
4	14M7298	2	Flange Nut	M8
5	AT498613	1	Microcomputer	XM 9 PC
6	AT498789	1	Computer Accessory	XM9 Cover Plate Kit
7	19M7774	4	Screw	M6 X 12
8	57M8736	1	Elec. Connector Accessory	-
9	19M7865	1	Screw	M8 X 16
10	AT438097	1	Wiring Harness	TimerNavi Harness
11	R78069	6	Elec. Connector Cavity Plug	-
11	57M7682	1	Elec.Connect Locking Device	-
11	R78066	6	Elec. Connector Terminal	-
11	57M11395	1	Elec. Connector Housing	X44
12	57M13597	1	Elec. Connector Housing	X5501, Engine Control Unit(ECU) Connector 1
13	57M13598	1	Elec. Connector Housing	X5504
14	PFP11275	1	Cable	-
15	PFP16073	1	Cable	-
16	F683508	1	Wiring Harness	-
17	F683508	1	Wiring Harness	-
18	AT482316	1	Computer Accessory	-
19	21M7284	2	Screw	M3 X 16
20	14M7030	2	Nut	M3
21	R44302	3	Tie Band	-
22	T209627	2	Clamp	-
23	AT472332	1	Vehicle Controller	-
24	AT487351	1	Cab Wiring Harness	Control With TimerNavi Harness
25	57M11395	1	Elec. Connector Housing	X19B, Right Hand Console Harness-to-Armrest Right Control Harness Interconnect
25	57M8264	3	Elec. Connector Terminal	-
25	R78066	6	Elec. Connector Terminal	-
25	R78069	3	Elec. Connector Cavity Plug	-
25	57M7682	1	Elec.Connect Locking Device	-
26	57M10333	38	Elec. Connector Cavity Plug	-
26	57M10617	4	Elec. Connector Housing	-
26	57M10331	2	Elec. Connector Terminal	-
26	57M10330	4	Elec. Connector Terminal	-
26	57M10614	1	Elec. Connector Housing	A3001, Cab Control Unit
27	57M10613	1	Elec. Connector Housing	-
28	57M11230	1	Elec. Connector Accessory	-
29	57M8021	1	Electrical Connector Assy	X123 , Horn Interconnect Cap
29	57M8022	1	Elec.Connect Locking Device	-
30	R78069	2	Elec. Connector Cavity Plug	-
31	19M7775	4	Screw	M6 X 16
32	14M7744	4	Flange Nut	M6
33	R44302	1	Tie Band	-

Timbermatics Maps, Standard (381718 - )

Нет текстового описания
