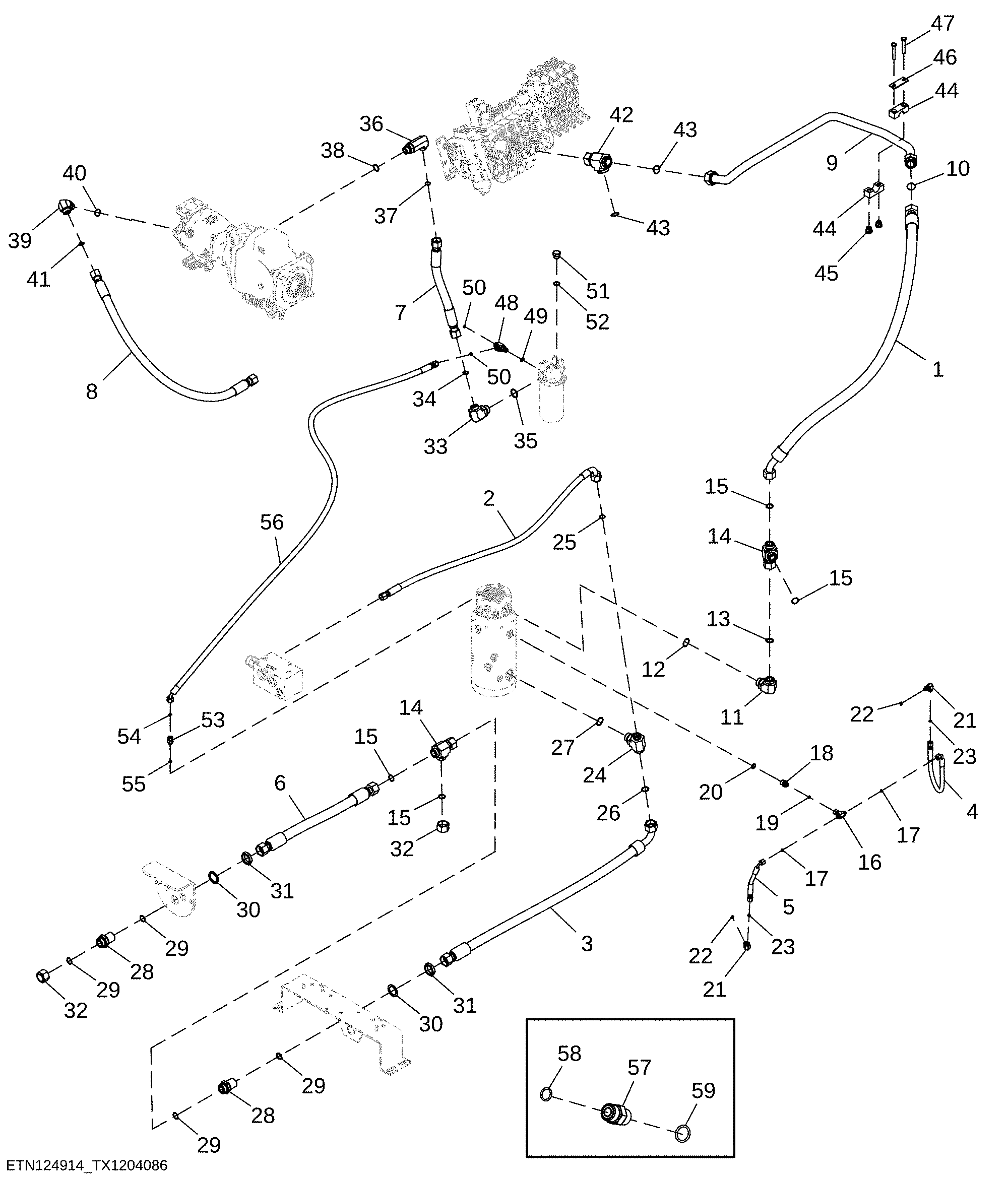

Return Plumbing, Delimber ( - 394055)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT435707	1	Hydraulic Hose	Fabricate
2	AT463924	1	Hydraulic Hose	-
3	AT363320	1	Hydraulic Hose	Fabricate
4	AT367445	1	Hydraulic Hose	To Rotary Manifold
5	AT367444	1	Hydraulic Hose	To Rotary Manifold
6	AT363318	1	Hydraulic Hose	Fabricate To Rotary Manifold
7	AT443971	1	Hydraulic Hose	Fabricate
8	AT443972	1	Hydraulic Hose	Fabricate To Filter
9	AT450096	1	Oil Tube	-
10	T78612	1	O-Ring	-
11	38H3037	1	Elbow Fitting	SUB FOR 38H1037
12	R29936	1	O-Ring	-
13	T76938	1	O-Ring	-
14	38H5408	2	Adapter Fitting	SUB FOR 38H1002
15	T76938	4	O-Ring	-
16	38H1036	1	Tee Fitting	-
17	T77814	2	O-Ring	-
18	38H1445	1	Adapter Fitting	-
19	T77814	1	O-Ring	-
20	R26375	1	O-Ring	-
21	38H1003	2	Elbow Fitting	-
22	R28782	2	O-Ring	-
23	T77814	2	O-Ring	-
24	38H1437	1	Tee Fitting	-
25	T77858	1	O-Ring	-
26	T76938	4	O-Ring	-
27	R29936	1	O-Ring	-
28	38H5220	2	Adapter Fitting	SUB FOR 38H1287
29	T76938	4	O-Ring	-
30	24H1520	2	Washer	1-15/32" X 2" X 0.105"
31	38H5095	2	Nut	1-7/16"
32	38H1419	2	Fitting	-
33	38H1052	1	Elbow Fitting	-
34	T77858	1	O-Ring	-
35	R29936	1	O-Ring	-
36	38H1492	1	Elbow Fitting	-
37	T77858	1	O-Ring	-
38	U12547	1	O-Ring	-
39	38H1007	1	Elbow Fitting	-
40	U12547	1	O-Ring	-
41	T77858	1	O-Ring	-
42	38H1034	1	Tee Fitting	-
43	T78612	2	O-Ring	-
44	T354824	2	Hose Clamp	-
45	T392052	2	Nut	SUB FOR F120999
46	T355852	1	Strap	-
47	19M7742	2	Cap Screw	M10 X 65
48	38H1023	1	Tee Fitting	-
49	R26448	1	O-Ring	-
50	T77613	2	O-Ring	-
51	64H1006	1	Drain Plug	-
52	R26906	1	O-Ring	-
53	38H1309	1	Adapter Fitting	-
54	T77613	1	O-Ring	-
55	R28782	1	O-Ring	-
56	AT463345	1	Hydraulic Hose	Fabricate
57	38H1161	1	Adapter Fitting	USE WITH AT463924
58	T77857	1	O-Ring	USE WITH AT463924
59	R26375	1	O-Ring	USE WITH AT463924

Return Plumbing, Delimber ( - 394055)
