Большое обновление пильных узлов

Смотреть

Открытый узел

Plumbing, Delimber Saw Knife, Upper Frame

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

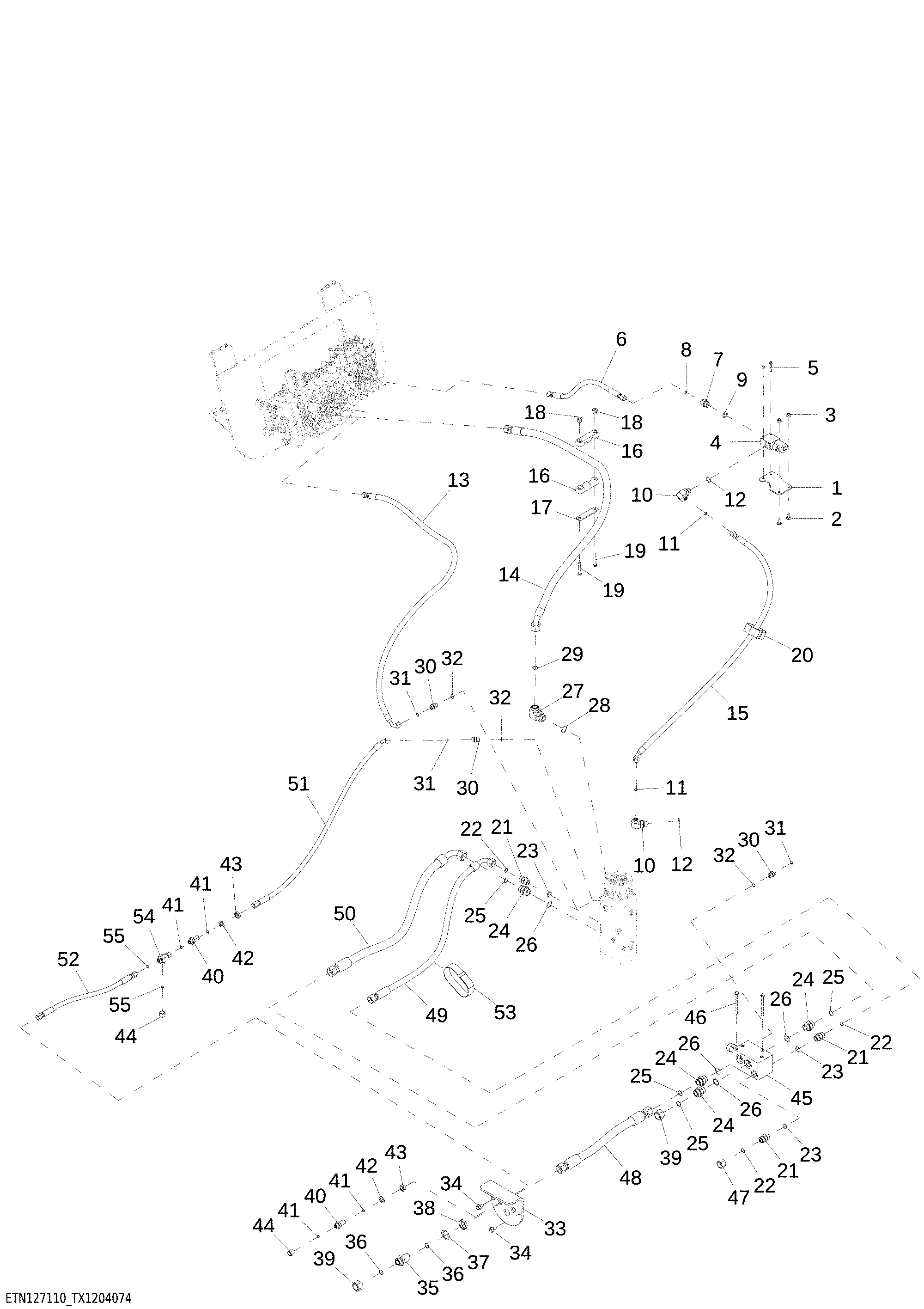

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT449649	1	Bracket	Common
2	03M7191	2	Bolt	M10 X 25
3	14M7296	2	Flange Nut	M10
4	AT413566	1	Manifold	Delimber Manifold, INCLUDES AT302919 AND AT333815
4	AT302919	1	Solenoid Valve	INCLUDES AT224864 AND T181306
4	AT224864	1	Seal Kit	-
4	T181306	1	Nut	-
4	AT333815	1	Solenoid Valve Coil	-
5	19M9053	2	Screw	M6 X 50
6	AT449113	1	Hydraulic Hose	Delimber Manifold to Combo Valve, ORDER AT501771
6	AT501771	1	Hydraulic Hose	Delimber Manifold to Combo Valve
7	38H3175	1	Adapter Fitting	-
8	T77857	1	O-Ring	-
9	U12547	1	O-Ring	-
10	38H1013	2	Elbow Fitting	-
11	T77857	2	O-Ring	-
12	U12547	2	O-Ring	-
13	AT449111	1	Hydraulic Hose	Rotary Manifold to Combo Valve Fabricate
14	AT449114	1	Hydraulic Hose	Rotary Manifold to Combo Valve Fabricate
15	AT449112	1	Hydraulic Hose	Delimber Manifold Fabricate
16	T358208	2	Hose Clamp	-
17	T327830	1	Plate	-
18	T392052	2	Nut	SUB FOR F120999
19	19M7742	2	Cap Screw	M10 X 65
20	T238029	1	Adjusting Strap	-
21	38H3163	3	Adapter Fitting	-
22	T77858	3	O-Ring	-
23	U12547	3	O-Ring	-
24	38H3164	4	Adapter Fitting	-
25	T76938	4	O-Ring	-
26	R29936	4	O-Ring	-
27	38H3037	1	Elbow Fitting	-
28	R29936	1	O-Ring	-
29	T76938	1	O-Ring	-
30	38H3161	3	Adapter Fitting	-
31	T77857	3	O-Ring	-
32	R26375	3	O-Ring	-
33	T376281	1	Bracket	-
34	19M7788	2	Screw	M12 X 25
35	38H5220	1	Adapter Fitting	-
36	T76938	2	O-Ring	-
37	24H1520	1	Washer	1-15/32" X 2" X 0.105"
38	38H5095	1	Nut	1-7/16"
39	38H1419	2	Fitting	-
40	38H5073	2	Adapter Fitting	-
41	T77857	4	O-Ring	-
42	24M7396	2	Washer	21 X 34 X 3 mm
43	38H5092	2	Nut	13/16"
44	38H5120	2	Fitting	-
45	AT457429	1	Control Valve	Hydraulic Valve, Diverter, INCLUDES AT442052 AND AT442583
45	AT442052	1	Hydr./Pilot Control Valve	-
45	AT442583	1	Seal Kit	-
46	19M8006	2	Screw	M8 X 120
47	38H1418	1	Fitting	-
48	AT363318	1	Hydraulic Hose	Rotary Manifold to Hydraulic Valve, Diverter
49	AT463923	1	Hydraulic Hose	Rotary Manifold to Hydraulic Valve, Diverter
50	AT368570	1	Hydraulic Hose	Rotary Manifold to Hydraulic Valve, Diverter
51	AT375064	1	Hydraulic Hose	To Rotary Manifold
52	AT363319	1	Hydraulic Hose	To Rotary Manifold
53	T364670	1	Adjusting Strap	-
54	38H5069	1	Tee Fitting	-
55	T77857	2	O-Ring	-

Plumbing, Delimber Saw Knife, Upper Frame
