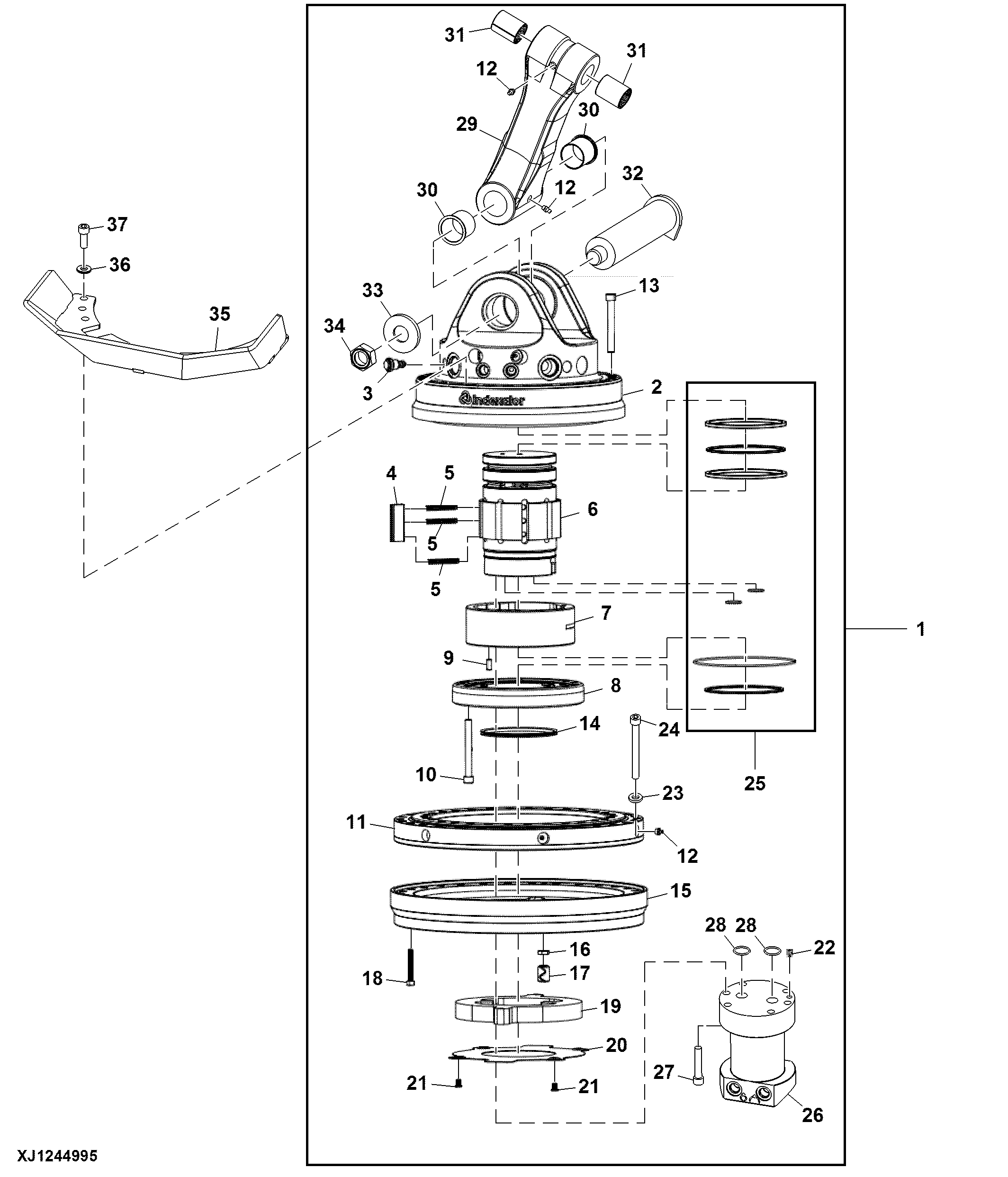

John Deere Grapple Rotator Hydraulic Motor Components

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT522643	1	Rotator Kit	SUB FOR AT512357
2	T381434	1	Stator	-
3	T381436	2	Pressure Relief Valve	-
4	T381440	9	Vane	-
5	T381442	27	Spring	-
6	T395295	1	Shaft	-
7	T381431	1	Frame	-
8	T392664	1	Plate	-
9	T382399	4	Pin	-
10	19M9896	15	Socket Head Screw	M12 X 110
11	T416052	1	Seal	Upper Seal, USE WITH AT496219
11	T464990	1	Seal	Lower Seal, USE WITH AT505204
11	T427850	1	Seal	Upper Seal, USE WITH AT505204
11	T465275	1	Seal	Lower Seal, USE WITH AT496219
11	AT505204	1	Bearing Kit	SUB FOR AT496219
12	58M7006	8	Lubrication Fitting	-
13	19M8442	30	Screw	M12 X 100
14	T392662	1	Seal	-
15	T381433	1	Linkage	-
16	14M7740	4	Nut	M12
17	T376462	4	Pin	-
18	T382032	3	Screw	-
19	T381429	1	Plate	-
20	T381428	1	Plate	-
21	T382031	4	Screw	-
22	T377482	1	Pin	-
23	19M9507	30	Screw	M12 X 120
24	T384608	30	Washer	-
25	T438949	1	Seal Kit	SUB FOR T381432
26	T452299	1	Manifold	SUB FOR T365258
27	19M8444	6	Screw	M12 X 60
28	T74425	2	O-Ring	-
29	T372408	1	Link	-
30	T372413	2	Bushing	-
31	T372412	2	Bushing	-
32	AT464976	1	Pin	-
33	T372415	1	Spacer	-
34	T376460	1	Lock Nut	-
35	AT513542	1	Guard	SUB FOR AT462873
36	T373070	8	Lock Washer	-
37	19M8169	8	Screw	M12 X 30

John Deere Grapple Rotator Hydraulic Motor Components

Нет текстового описания
