JDLink™ Modular Telematics Gateway (MTG) Antenna and Harness, 4G (323973 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8317	4	Screw	M8 X 40
2	14M7396	4	Lock Nut	M8
3	R44302	1	Tie Band	-
4	R62356	1	Grommet	-
5	PFA10896	1	Antenna	MTG 4G LTE Cell/GPS/Wi-Fi, SUB FOR PFA10890
6	AT475996	1	Wiring Harness	JDLink™ Modular Telematics Gateway (MTG) Harness
6	57M8674	1	Elec. Connector Housing	-
7	57M10334	4	Elec. Connector Cavity Plug	-
7	57M10333	32	Elec. Connector Cavity Plug	-
7	57M10617	4	Elec. Connector Housing	-
7	57M10330	8	Elec. Connector Terminal	-
7	57M10615	1	Elec. Connector Housing	X9002, Modular Telematics Gateway (MTG) - J2
8	57M10613	1	Elec. Connector Housing	-
9	57M11395	1	Elec. Connector Housing	X9, Cab Inline
9	R78066	10	Elec. Connector Terminal	-
9	R78069	2	Elec. Connector Cavity Plug	-
10	57M8634	1	Elec. Connector Housing	X91A, Satellite Module Inline
10	R78065	5	Elec. Connector Terminal	-
10	R78069	1	Elec. Connector Cavity Plug	-
11	57M7682	1	Elec.Connect Locking Device	-
12	57M8013	1	Elec.Connect Locking Device	-
13	57M11287	1	Elec. Connector Accessory	-

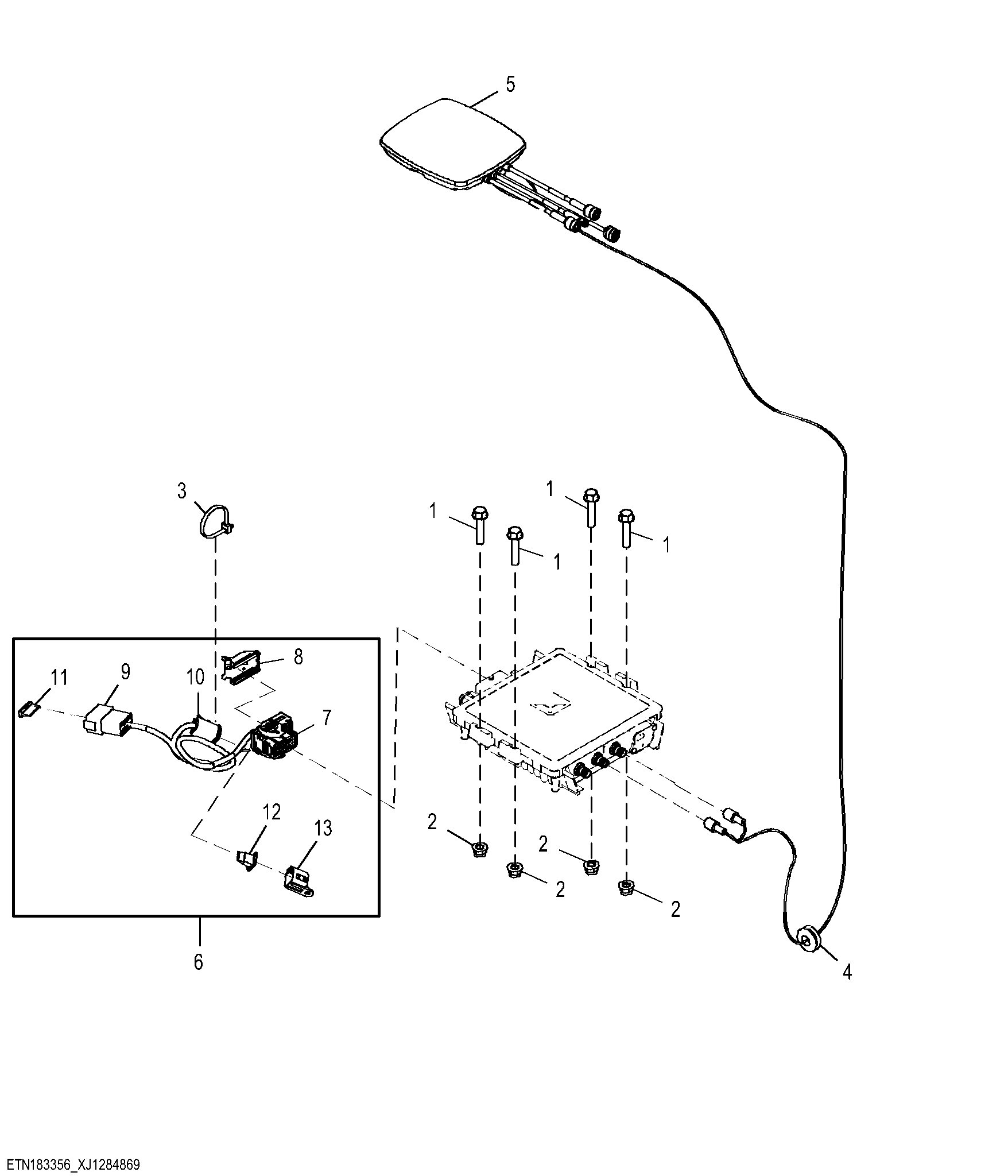

JDLink™ Modular Telematics Gateway (MTG) Antenna and Harness, 4G (323973 - )

Нет текстового описания
