JDLink™ Modular Telematics Gateway (MTG) Antenna and Harness, 3G ( - 323972)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT390680	1	Wiring Harness	JDLink™ Modular Telematics Gateway (MTG) Harness
2	57M10615	1	Elec. Connector Housing	X45 MTG
2	57M8527	1	Elec. Connector Housing	-
2	57M8529	1	Electrical Connector Cap	-
2	57M8770	9	Elec. Connector Terminal	-
2	57M8605	31	Elec. Connector Seal	-
2	57M10493	4	Elec. Connector Terminal	-
2	57M8604	4	Elec. Connector Seal	-
3	57M8674	1	Elec. Connector Housing	X99 JDLINK Interface, SUB FOR 57M7633
3	R78066	6	Elec. Connector Terminal	-
3	R78069	4	Elec. Connector Cavity Plug	-
3	57M7682	1	Elec.Connect Locking Device	-
4	57M10613	1	Elec. Connector Housing	-
5	57M8634	1	Elec. Connector Housing	X42 JDLINK Satellite Connection
5	57M8013	1	Elec.Connect Locking Device	-
5	R78069	1	Elec. Connector Cavity Plug	-
5	R78065	5	Elec. Connector Terminal	-
6	57M8014	1	Elec. Connector Housing	-
6	R78069	9	Elec. Connector Cavity Plug	-
7	AT399832	1	Antenna	4.5m (15 ft), See DTAC Solution 88359
8	19M8317	4	Screw	M8 X 40
9	14M7396	4	Lock Nut	M8
10	R62356	1	Grommet	-
11	R44302	1	Tie Band	-
12	R36235	1	Grommet	-
13	T76252	1	Clamp	-
14	19M7867	1	Screw	M8 X 25

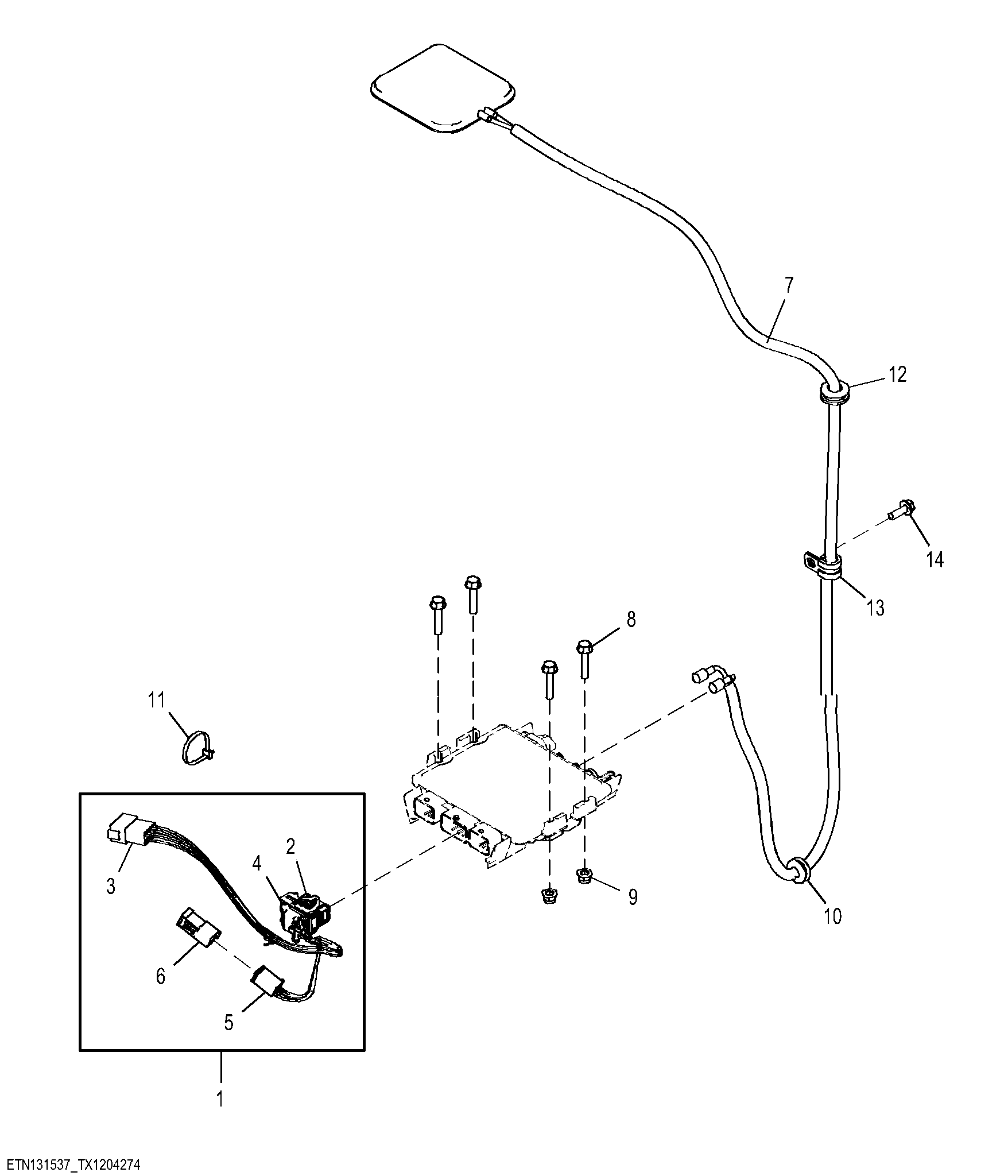

JDLink™ Modular Telematics Gateway (MTG) Antenna and Harness, 3G ( - 323972)
