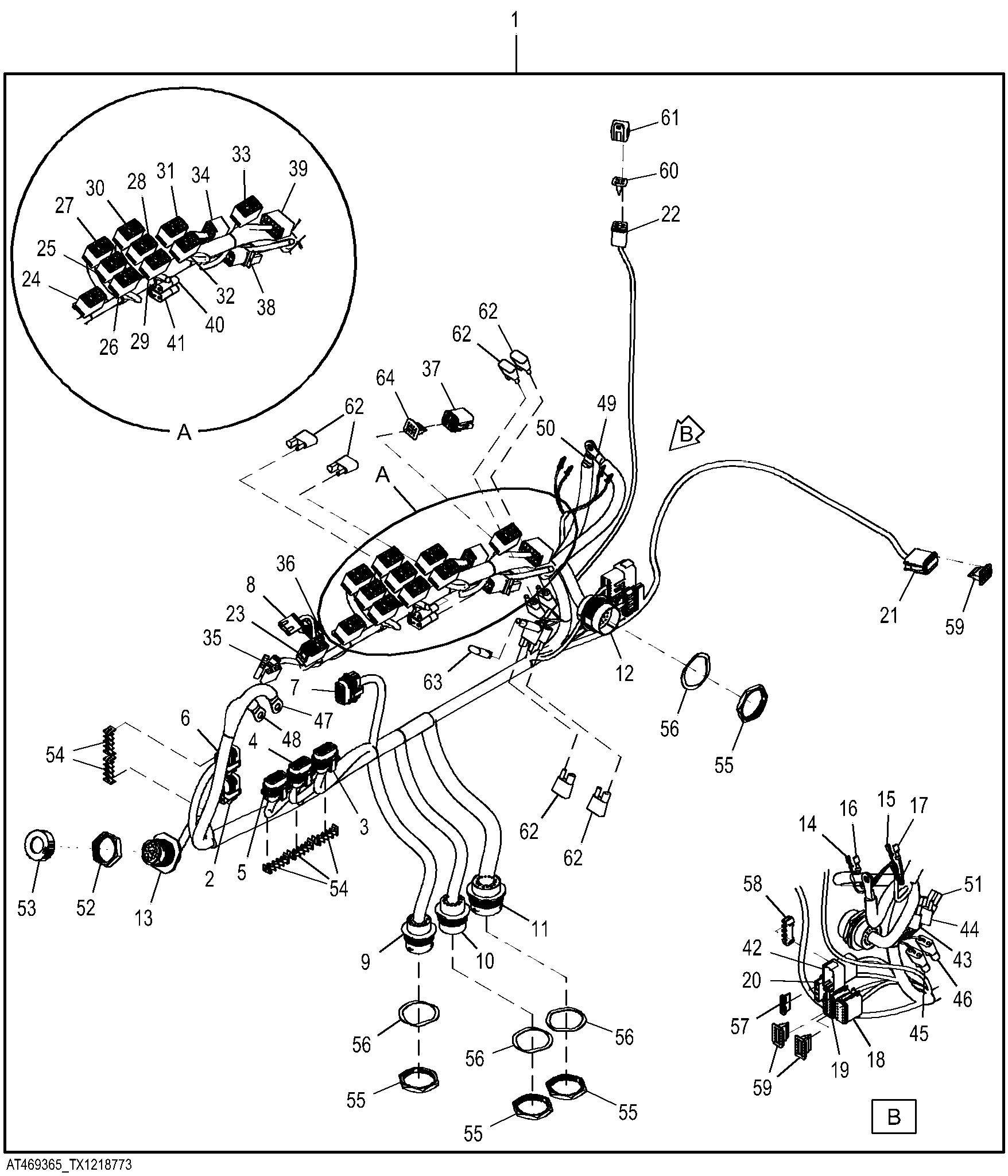

Console Wiring Harness and Connectors ( - 381570)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT483624	1	Cab Wiring Harness	SUB FOR AT469365
1	AT436854	1	Cab Wiring Harness	ORDER AT469365
2	57M7298	6	Elec. Connector Terminal	-
2	57M8987	1	Elec. Connector Housing	Vehicle Electrical Center (VEC) Yellow
2	57M9216	1	Elec. Connector Seal	-
2	57M9218	6	Elec. Connector Seal	-
2	57M7491	1	Elec. Connector Terminal	-
3	57M8988	1	Elec. Connector Housing	VEC Red
3	57M7298	8	Elec. Connector Terminal	-
3	57M9218	8	Elec. Connector Seal	-
4	57M8984	1	Elec. Connector Housing	VEC Gray
4	57M7298	8	Elec. Connector Terminal	-
4	57M9218	8	Elec. Connector Seal	-
5	57M8990	1	Elec. Connector Housing	VEC Brown
5	57M9217	3	Elec. Connector Seal	-
5	57M9216	2	Elec. Connector Seal	-
5	57M7491	5	Elec. Connector Terminal	-
5	57M9218	2	Elec. Connector Seal	-
5	57M7298	2	Elec. Connector Terminal	-
6	57M9217	1	Elec. Connector Seal	-
6	57M9216	1	Elec. Connector Seal	-
6	57M7491	2	Elec. Connector Terminal	-
6	57M7298	5	Elec. Connector Terminal	-
6	57M8986	1	Elec. Connector Housing	VEC Blue
6	57M9218	5	Elec. Connector Seal	-
7	57M8989	1	Elec. Connector Housing	VEC Orange
7	57M7298	6	Elec. Connector Terminal	-
7	57M9218	8	Elec. Connector Seal	-
7	57M7491	2	Elec. Connector Terminal	-
7	57M9216	1	Elec. Connector Seal	-
7	57M9217	1	Elec. Connector Seal	-
8	57M9200	2	Elec. Connector Terminal	-
8	R77480	1	Electrical Connector Assy	Horn Switch
9	57M8111	1	Elec. Connector Housing	Front Cab Bulkhead
9	57M7537	1	Elec. Connector Terminal	-
9	57M7541	1	Elec. Connector Terminal	-
9	R78066	10	Elec. Connector Terminal	-
10	57M7944	1	Elec. Connector Housing	Mid Cab Bulkhead
10	57M7613	1	Elec. Connector Terminal	-
10	57M11135	2	Elec. Connector Terminal	-
10	R78066	12	Elec. Connector Terminal	-
11	R78066	21	Elec. Connector Terminal	-
11	57M8264	2	Elec. Connector Terminal	-
11	57M7544	1	Elec. Connector Housing	Rear Cab Bulkhead
12	57M7748	1	Elec. Connector Housing	Seat Harness Interconnect
12	R78066	16	Elec. Connector Terminal	-
12	57M11135	2	Elec. Connector Terminal	-
13	57M9183	1	Elec. Connector Housing	Service ADVISOR™
13	R78066	2	Elec. Connector Terminal	-
13	57M8264	2	Elec. Connector Terminal	-
14	57M9711	1	Elec. Connector Terminal	Power Plug
14	57M9711	1	Elec. Connector Terminal	-
15	57M9711	1	Elec. Connector Terminal	Power Plug
15	57M9711	1	Elec. Connector Terminal	-
16	57M9451	1	Elec. Connector Terminal	Power Plug
16	57M9451	1	Elec. Connector Terminal	-
17	57M9451	1	Elec. Connector Terminal	Power Plug
17	57M9451	1	Elec. Connector Terminal	-
18	57M8008	1	Electrical Connector Assy	Cab Upper Harness
18	57M7542	3	Elec. Connector Terminal	-
18	R78065	7	Elec. Connector Terminal	-
19	R78065	10	Elec. Connector Terminal	-
19	57M9459	1	Elec. Connector Housing	Standard Display Monitor (SDM) Harness 2
19	57M8263	2	Elec. Connector Terminal	-
20	57M7808	1	Elec. Connector Housing	Heating and Air Conditioning (A/C) Harness
20	57M7298	3	Elec. Connector Terminal	-
20	57M9218	3	Elec. Connector Seal	-
20	57M7491	1	Elec. Connector Terminal	-
20	57M9217	1	Elec. Connector Seal	-
21	57M8008	1	Electrical Connector Assy	JDLink™
21	57M8263	2	Elec. Connector Terminal	-
21	R78065	4	Elec. Connector Terminal	-
22	57M8015	1	Electrical Connector Assy	Diesel Fired Coolant Heater (DFCH) Harness
22	R78065	4	Elec. Connector Terminal	-
23	57M10961	1	Elec. Connector Housing	Pilot Enable
23	57M7429	4	Elec. Connector Terminal	-
23	57M7512	4	Elec. Connector Terminal	-
24	57M10961	1	Elec. Connector Housing	Auto Idle
24	57M7512	2	Elec. Connector Terminal	-
24	57M7511	2	Elec. Connector Terminal	-
24	57M7429	1	Elec. Connector Terminal	-
25	57M7511	2	Elec. Connector Terminal	-
25	57M7512	6	Elec. Connector Terminal	-
25	57M10961	1	Elec. Connector Housing	Right Front Stabilizer
25	57M7429	3	Elec. Connector Terminal	-
26	57M7512	6	Elec. Connector Terminal	-
26	57M10961	1	Elec. Connector Housing	Left Front Stabilizer
26	57M7511	2	Elec. Connector Terminal	-
26	57M7429	3	Elec. Connector Terminal	-
27	57M10961	1	Elec. Connector Housing	All Stabilizer
27	57M7512	4	Elec. Connector Terminal	-
27	57M7429	4	Elec. Connector Terminal	-
27	57M7511	2	Elec. Connector Terminal	-
28	57M10961	1	Elec. Connector Housing	Right Rear Stabilizer
28	57M7512	3	Elec. Connector Terminal	-
28	57M7429	3	Elec. Connector Terminal	-
28	57M7511	2	Elec. Connector Terminal	-
29	57M10961	1	Elec. Connector Housing	Left Rear Stabilizer
29	57M7511	2	Elec. Connector Terminal	-
29	57M7429	4	Elec. Connector Terminal	-
29	57M7512	2	Elec. Connector Terminal	-
30	57M10961	1	Elec. Connector Housing	Work Lights
30	57M7429	2	Elec. Connector Terminal	-
30	57M7511	2	Elec. Connector Terminal	-
31	57M7511	2	Elec. Connector Terminal	-
31	57M7429	2	Elec. Connector Terminal	-
31	57M10961	1	Elec. Connector Housing	Washer Pump
32	57M10961	1	Elec. Connector Housing	Wiper Motor
32	57M7429	6	Elec. Connector Terminal	-
32	57M7511	2	Elec. Connector Terminal	-
33	57M10961	1	Elec. Connector Housing	A/C Defrost
33	57M7429	4	Elec. Connector Terminal	-
34	57M10961	1	Elec. Connector Housing	Travel Alarm Cancel
34	57M7429	4	Elec. Connector Terminal	-
35	57M9200	4	Elec. Connector Terminal	-
35	L38138	1	Elec. Connector Housing	Keyswitch
36	57M7255	1	Elec. Connector Housing	Throttle
36	57M10770	3	Elec. Connector Terminal	-
36	57M7258	3	Elec. Connector Seal	-
37	57M8010	1	Electrical Connector Assy	Circle Saw/Mobile Hydraulics Controls Intconn 1
37	R78065	8	Elec. Connector Terminal	-
38	57M7631	1	Elec. Connector Housing	CS/MH Controls Intconn 2
38	R78066	4	Elec. Connector Terminal	-
39	57M7512	6	Elec. Connector Terminal	-
39	57M7429	3	Elec. Connector Terminal	-
39	57M10961	1	Elec. Connector Housing	Circle Saw Enable
40	57M10942	1	Diode	All Stabilizer Up Diode
40	57M10690	1	Elec. Connector Terminal	-
40	57M10687	1	Elec. Connector Terminal	-
41	57M10942	1	Diode	All Stabilizer Down Diode
41	57M10687	1	Elec. Connector Terminal	-
41	57M10690	1	Elec. Connector Terminal	-
42	57M7633	1	Electrical Connector Assy	SDM/Console Harness 1
42	R78066	8	Elec. Connector Terminal	-
42	57M7541	1	Elec. Connector Terminal	-
43	57M10690	1	Elec. Connector Terminal	-
43	57M10687	1	Elec. Connector Terminal	-
43	57M10942	1	Diode	Left Rear Stabilizer Diode
44	57M10942	1	Diode	Right Rear Stabilizer Diode
44	57M10687	1	Elec. Connector Terminal	-
44	57M10690	1	Elec. Connector Terminal	-
45	57M10942	1	Diode	Right Front Stablizier Diode
45	57M10687	1	Elec. Connector Terminal	-
45	57M10690	1	Elec. Connector Terminal	-
46	57M10690	1	Elec. Connector Terminal	-
46	57M10687	1	Elec. Connector Terminal	-
46	57M10942	1	Diode	Left Front Stabilzier Diode
47	57M9945	1	Elec. Connector Terminal	-
48	57M9945	1	Elec. Connector Terminal	-
49	57M9945	1	Elec. Connector Terminal	-
50	57M9945	1	Elec. Connector Terminal	-
51	57M11483	1	Elec. Connector Housing	-
52	57M9182	1	Nut	-
53	57M9358	1	Elec. Connector Accessory	-
54	57M9083	6	Elec. Connector Accessory	-
55	57M8035	4	Nut	-
56	57M9061	4	Elec.Connect Locking Device	-
57	57M7682	1	Elec.Connect Locking Device	-
58	57M7810	1	Elec.Connect Locking Device	-
59	57M8009	3	Elec.Connect Locking Device	-
60	57M8016	1	Elec.Connect Locking Device	-
61	57M11286	1	Elec. Connector Accessory	-
62	AT103399	6	Diode	-
63	AR94101	1	Diode	-
64	57M8011	1	Elec.Connect Locking Device	-
