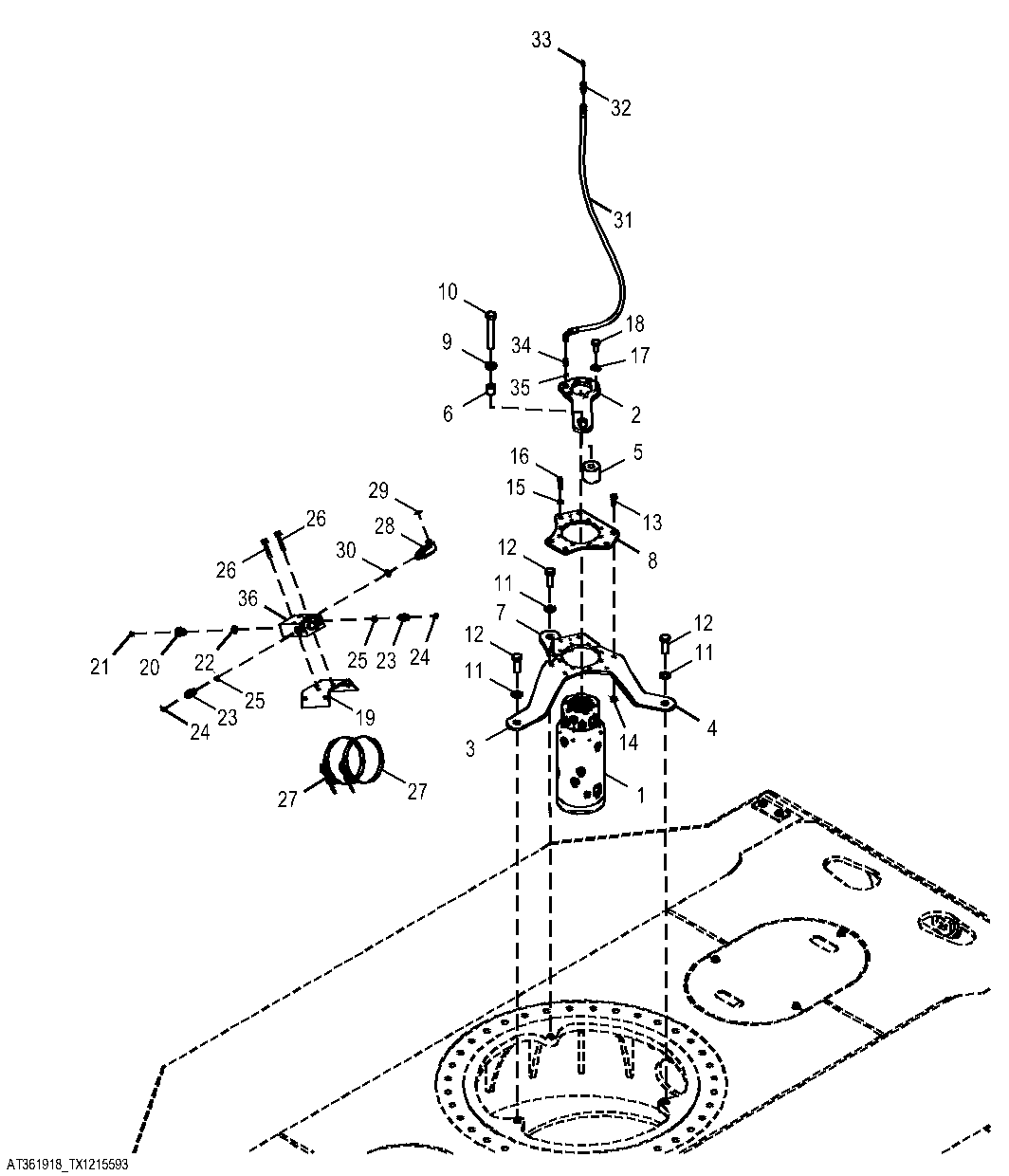

Rotary Manifold and Stabilizer Manifold ( - 254105)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PG201140	1	Manifold Reman	REMAN FOR AT363325
1	AT363325	1	Manifold	Components Listed on Seperate Page
2	T255248	1	Arm	-
3	T267171	1	Bracket	-
4	T257341	1	Bracket	-
5	T242527	1	Spacer	-
6	F383894	1	Bushing	-
7	T257342	1	Bracket	-
8	T257349	1	Bracket	-
9	N231749	1	Washer	-
10	19M7907	1	Screw	M20 X 140
11	24M7349	3	Washer	21 X 37 X 3 mm
12	19M8002	3	Cap Screw	M20 X 55
13	19M7835	6	Screw	M10 X 35
14	14M7296	6	Flange Nut	M10
15	24M7346	8	Washer	11 X 20 X 2 mm
16	19H3124	8	Screw	3/8" X 1-1/2"
17	24M7241	5	Washer	17 X 34 X 4 mm
18	19H2637	5	Cap Screw	5/8" X 1-3/8"
19	AT368191	4	Bracket	To Stabilizer Cylinders
20	38H1172	1	Adapter Fitting	-
21	T77613	1	O-Ring	-
22	R26906	1	O-Ring	-
23	38H1161	1	Adapter Fitting	-
24	T77857	1	O-Ring	-
25	R26375	1	O-Ring	-
26	19M7807	8	Screw	M10 X 60
27	F125006	8	Clamp	To Stabilizer Cylinders
28	38H1623	1	Adapter Fitting	-
29	T77857	1	O-Ring	-
30	R26375	1	O-Ring	-
31	AT420614	1	Hydraulic Hose	Sheet Metal Group
32	AT119064	1	Fitting	SUB FOR 811103400
33	JD7759	1	Lubrication Fitting	-
34	H63599	1	Union Fitting	SUB FOR AN142253 AND JD7781
35	R28782	1	O-Ring	-
36	AT428826	4	Valve	Stabilizer Manifold, NLA; ORDER AT461967
36	AT461967	4	Valve	Components on Separate Page Stabilizer Manifold

Rotary Manifold and Stabilizer Manifold ( - 254105)

Нет текстового описания
