Console Controls / Switches ( - 254105)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

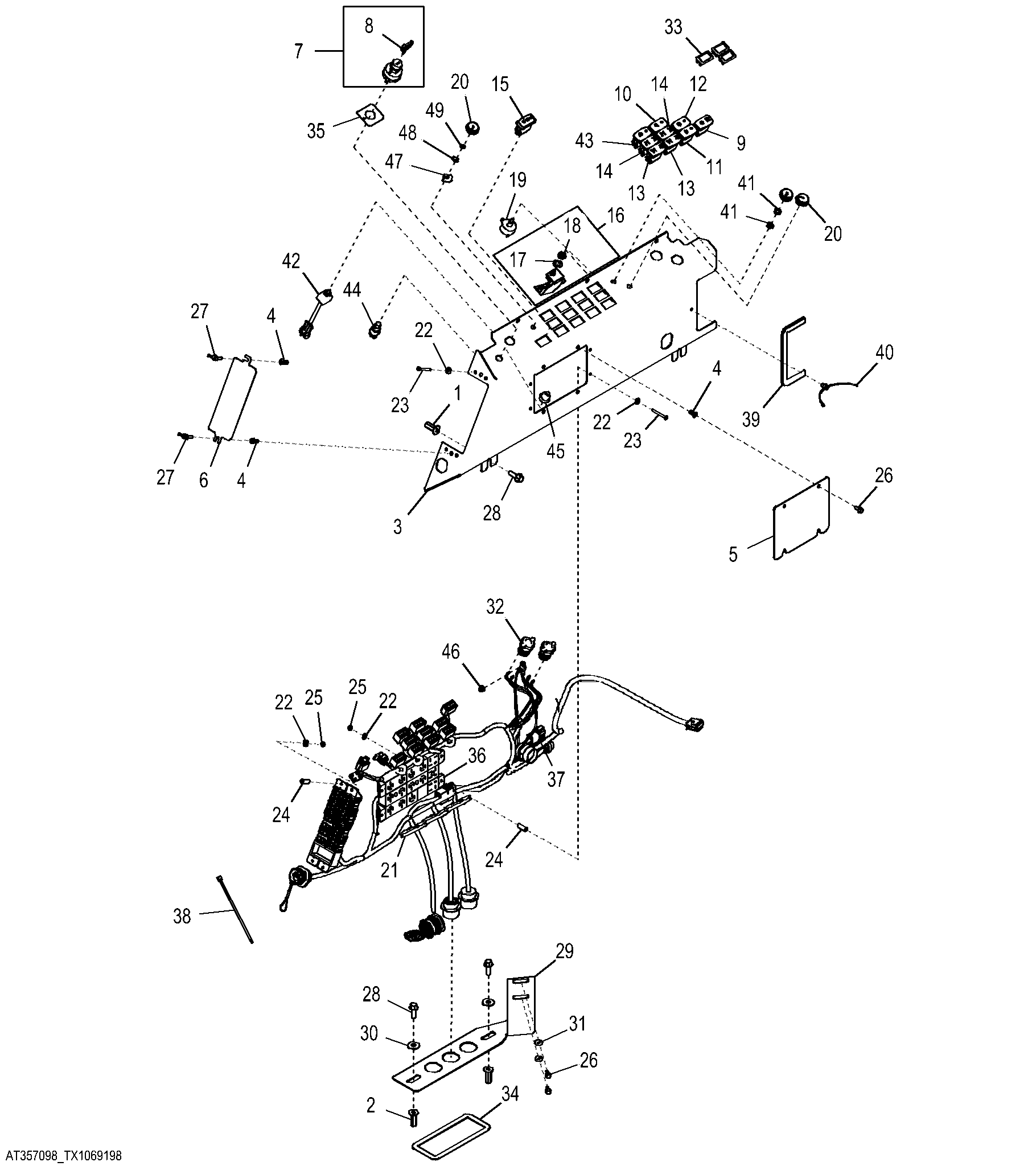

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T148409	1	Nut	-
2	T148411	2	Nut	-
3	T244850	1	Plate	-
4	T196077	3	Nut	-
5	T248477	1	Plate	-
6	T232121	1	Plate	-
7	AT195301	1	Switch	Key Switch
8	AT195302	1	Key	-
9	AT303865	1	Toggle/Rocker Switch	A/C Switch
10	AT303862	1	Toggle/Rocker Switch	Work Light Switch
11	AT347133	1	Toggle/Rocker Switch	Wiper
12	AT347136	1	Toggle/Rocker Switch	Windshield Washer
13	AT347141	2	Toggle/Rocker Switch	Stabilizer LH
14	AT347140	2	Toggle/Rocker Switch	Stabilizer RH
15	AT347137	1	Toggle/Rocker Switch	Pilot Enable Switch
16	RE46742	1	Control	Temperature Control
17	12H292	1	Lock Washer	1/2"
18	14H934	1	Nut	7/16"
19	RE43497	1	Switch	Rotary
19	RE46734	1	Electrical Connector Assy	-
19	57M7512	1	Elec. Connector Terminal	-
20	AL76568	3	Knob	-
21	T59423	3	Grommet	-
22	24M7138	16	Washer	5.300 X 15 X 1 mm
23	19M8834	8	Cap Screw	M5 X 45
24	28H1921	8	Bushing	0.269" X 0.405" X 1"
25	14M7375	8	Flange Nut	M5
26	19M7775	9	Screw	M6 X 16
27	21M7344	2	Screw	M6 X 25
28	19M7786	4	Screw	M10 X 30
29	T233671	1	Bulkhead Wiring Harness	-
30	24M7296	2	Washer	10.500 X 30 X 2.500 mm
31	24M7139	2	Washer	6.400 X 18 X 1.600 mm
32	GY20126	2	Socket Outlet	-
33	M115279	3	Plug	-
34	-	1	Part 36	MF T63019, CTL 690 mm (2.26 ft)
35	T157172	1	Label	Key Start
36	AT357099	1	Wiring Harness	Side Console
36	AT170067	3	Diode	Horn Ignition Circle Saw
37	57M7631	1	Elec. Connector Housing	-
38	R44302	1	Tie Band	-
39	-	1	Part 42	MF T58056, CTL 366 mm (1.2 ft)
40	T209627	1	Clamp	-
41	E46066	2	Nut	-
42	AT340550	1	Potentiometer	-
43	AT302732	1	Toggle/Rocker Switch	Throttle
44	R39554	1	Switch	Horn
45	T55501	1	Cap	-
46	14M7397	1	Lock Nut	M6
47	T226430	1	Tube	-
48	T226427	1	Washer	-
49	R78035	1	Push Nut	-

Console Controls / Switches ( - 254105)
