Swing Drive - Gear Case (335C) (144765 - 197674)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810593500	1	CLAMP*10 -	-
2	TY22466	2	Clamp	-
3	AH20868	1	Breather	-
4	AT174926	1	Dipstick	-
5	F125888	1	Elbow Fitting	-
6	F393703	1	Dipstick Tube	-
7	R42312	1	Hose Fitting	-
8	-	1	Part 8	T232427 CTL .6M
9	19H2473	2	Cap Screw	1/2" X 1-3/4"
10	24H1748	2	Washer	1/2" X 1-1/4" X 0.105"
11	810440000	1	O-RING -	-
12	R36599	1	Plug	-
13	810609700	1	Plug	-
14	811903500	2	Screw	-
15	A4444R	1	O-Ring	-
16	DT5037	1	Sealant	-
17	F125859	1	Gear Case	-
18	F390487	1	Retainer	-
19	T260037	1	Pinion	(ALSO ORDER <service-part qty="1">T260166</service-part> ) (SUB FOR <service-part qty="1">T232596</service-part>)(SEE DTAC SOLUTION XX)
19	T260166	1	Washer	-
20	DT5037	1	Sealant	-
21	F309027	1	Motor	-
22	03M7307	6	Bolt	M10 X 25
23	14M7518	10	Flange Nut	M10
24	19H2898	2	Cap Screw	1/2" X 1-1/4"
25	19H3137	9	Cap Screw	3/4" X 2-3/4"
26	19H3871	6	Cap Screw	5/16" X 1-1/4"
27	19H3971	29	Socket Head Screw	3/4" X 4-1/2"
28	19H3990	36	Socket Head Screw	3/4" X 5"
29	19M7784	2	Screw	M10 X 20
30	24H1294	6	Washer	11/32" X 1-1/8" X 1/16"
31	AT345819	1	Grease Cup	-
32	19M7402	4	Cap Screw	M10 X 25
33	AT345820	1	Guard	-
34	AT345821	1	Guard	-
35	DT5037	1	Sealant	-
36	F124578	1	Bearing	-
37	F392921	2	Dowel Pin	-
38	R70663	8	Washer	-
39	R94361	72	Washer	-
40	T232042	4	Shim	-
41	T232612	1	Flat Belt	-
42	T239407	1	Plate	-

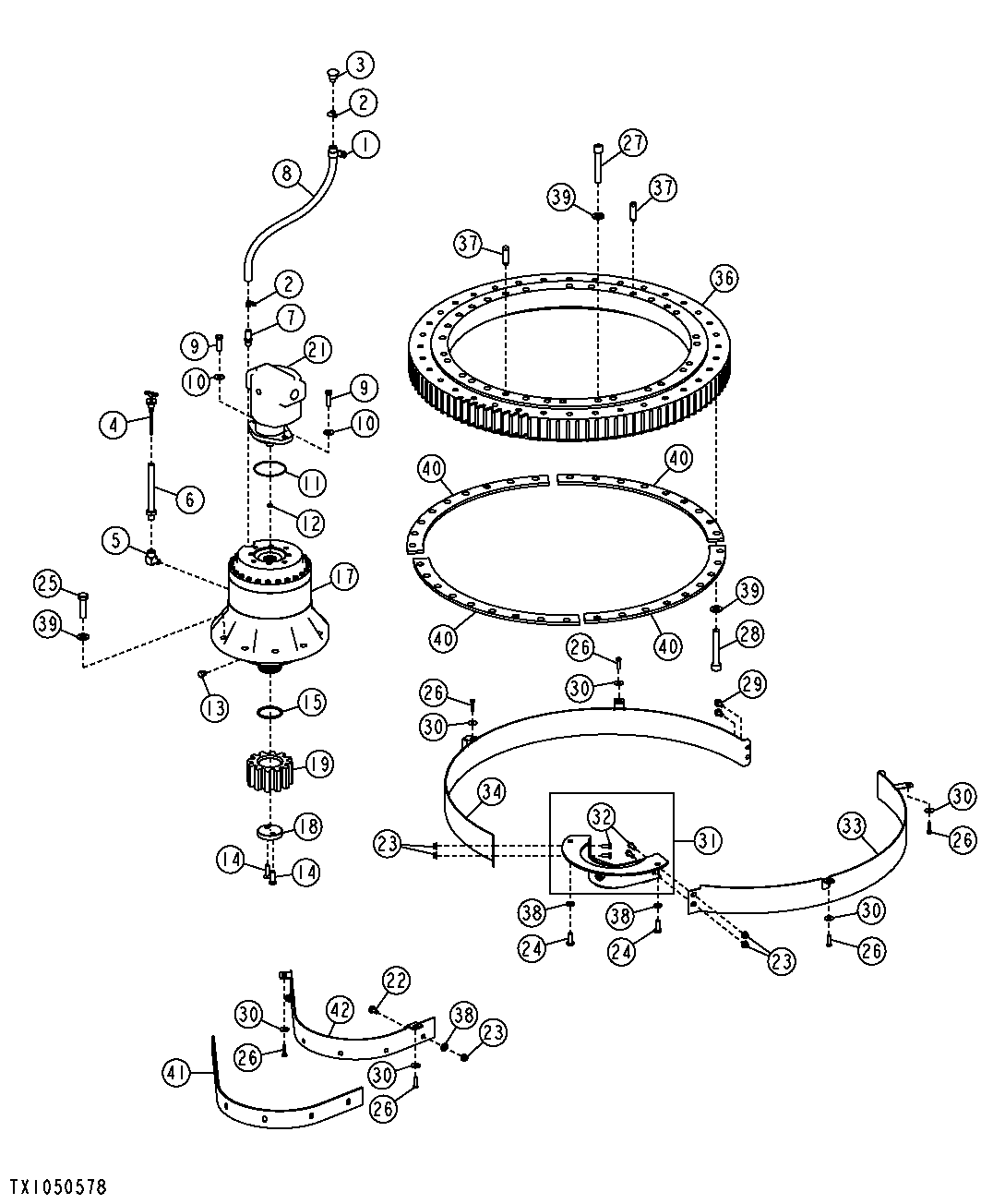

Swing Drive - Gear Case (335C) (144765 - 197674)

Нет текстового описания
