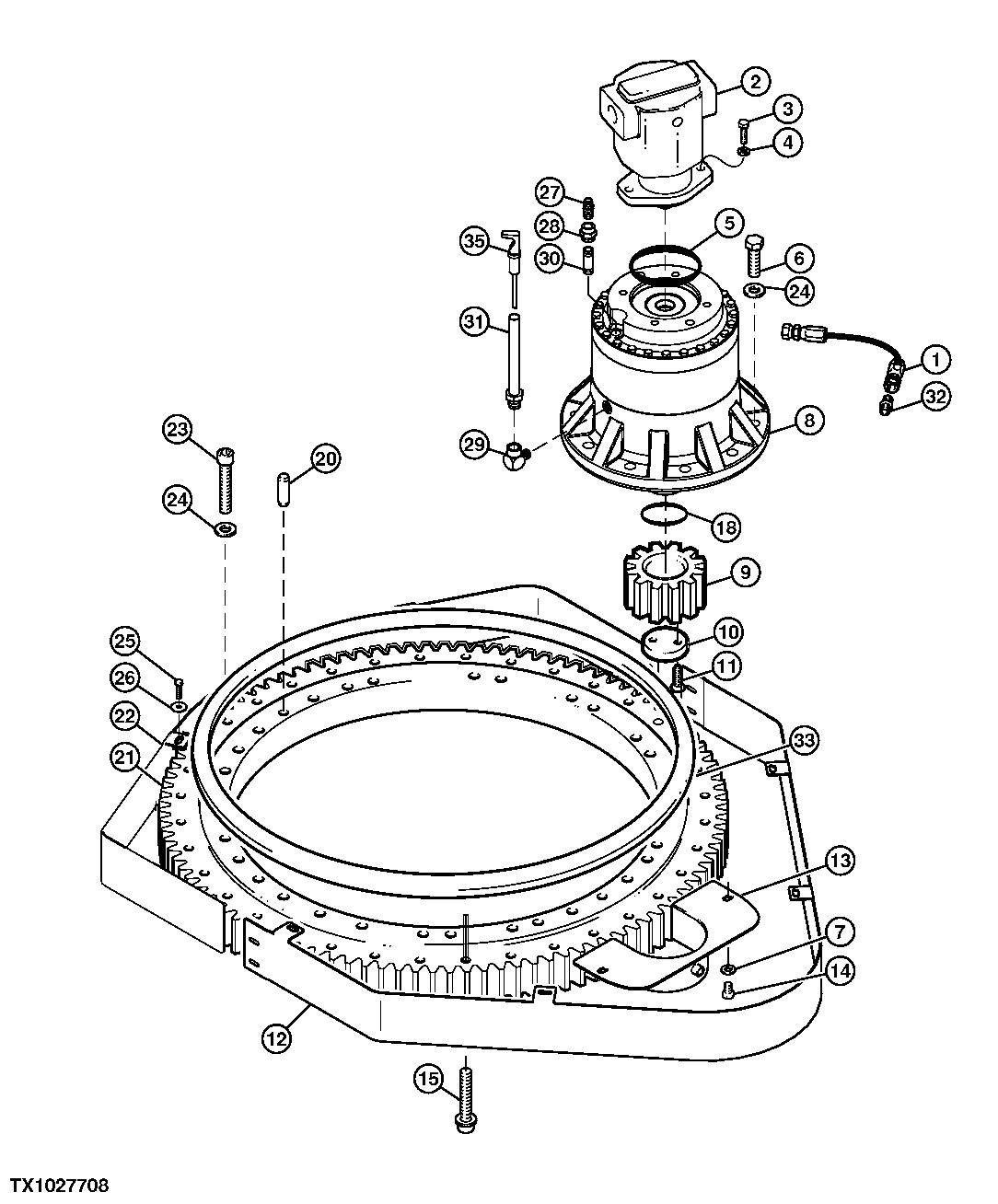

SWING DRIVE - GEAR CASE (011320-144764)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810576300	1	Hydraulic Hose	( 810576300 NA) (ORDER 19H666)
2	-	1	Part 2	SEE: SWING DRIVE MOTOR
3	19H2473	2	Cap Screw	1/2" X 1-3/4"
4	24H1748	2	Washer	1/2" X 1-1/4" X 0.105"
5	T42302	1	O-Ring	(SUB FOR 810440000)
6	19H3137	9	Cap Screw	3/4" X 2-3/4", (SUB FOR 810084700)
7	R70663	2	Washer	-
8	-	1	Part 8	SEE INDEX: SWING DRIVE GEARBOX
9	T260037	1	Pinion	(ALSO ORDER <service-part qty="1">T260166</service-part> ) (SUB FOR <service-part qty="1">F125163</service-part>)(SEE DTAC SOLUTION XX)
9	T260037	1	Pinion	-
10	F390487	1	Retainer	-
11	811903500	2	Screw	-
12	F399225	1	Guard	(SUB FOR F389119 AND F399225) (ALSO ORDER AT347900, AT348038, AT340230, T231255, (5) 19M7784, (10) 14M7518, (8) R70663, (2) 19H2898, (6) 03M7307 AND T232612)
13	F399168	1	Grease Cup	(SUB FOR F389457 AND F399168)
14	19H2943	2	Cap Screw	1/2" X 3/4"
15	19H3908	36	Screw	3/4" X 4-1/2"
16	19H3887	4	Cap Screw	1/4" X 1/2"
17	24M7435	4	Washer	8 X 15 X 1.600 mm
18	A4444R	1	O-Ring	72.390 X 5.334 mm (2.850" X 0.210")
20	F392921	2	Dowel Pin	-
21	F124578	1	Bearing	-
22	AT340230	1	Guard	(SUB FOR F389118 AND F399174) (ALSO ORDER AT347900, AT348038, AT340229, T231255, (5) 19M7784, (10) 14M7518, (8) R70663, (2) 19H2898, (6) 03M7307 AND T232612)
23	19H3908	29	Screw	3/4" X 4-1/2"
24	810002100	36	WASHER*3/4	-
25	19H3871	6	Cap Screw	5/16" X 1-1/4"
26	24H1294	6	Washer	11/32" X 1-1/8" X 1/16"
27	AH20868	1	Breather	(SUB FOR F125889)
28	T232427	1	Adapter Fitting	(SUB FOR 811134200)
29	F125888	1	Elbow Fitting	-
30	R42312	1	Hose Fitting	(3/8"), (SUB FOR 29H601, AND 29H668THIS APPLICATION)
31	F393703	1	Dipstick Tube	(SUB FOR F303884)
32	-	1	Part 32	(SUB FOR 810328700 AND T41651)( X8FTX-S NA) (ORDER 19H666)
33	F437300	1	Seal	-
35	AT174926	1	Dipstick	-
36	810533500	1	CLAMP*1	-
37	810593500	1	CLAMP*10 -	-
