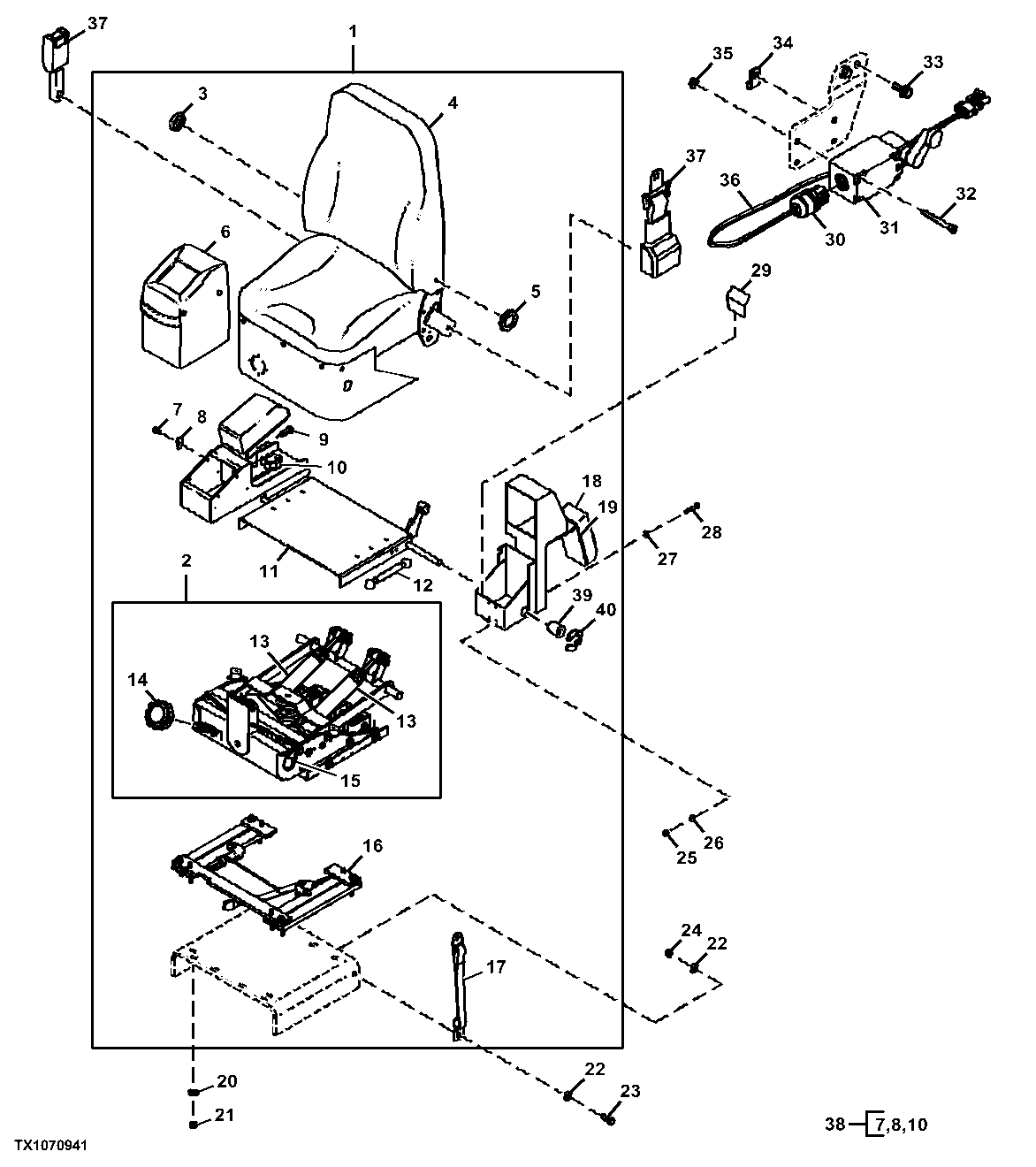

Mechanical Suspension Seat Components ( - 236908)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F302756	1	Seat	-
2	AT346174	1	Seat Suspension	-
3	F304260	1	Knob	Lumbar Adjuster
4	F304258	1	Cover	-
4	AT359311	1	Cushion	Seat Cushion
4	AT440790	1	Seat Back	Seat Back Cushion and Cover
5	F304259	1	Knob	-
6	F434644	1	Cover	LH
6	F434643	1	Cover	RH
7	-	8	Part 10	-
8	-	8	Part 11	-
9	-	4	Part 12	-
10	F304262	1	Knob	-
10	F437444	1	Bracket	-
11	F435522	1	Plate	-
12	AT251042	1	Absorber	-
13	F304269	2	Seat Shock Absorber Kit	Shock Absorber Kit
14	AT251053	1	Knob	Weight Adjustment
15	AT260792	1	Lever	Height Adjustment
16	F304265	1	Rubber Track Belt	-
17	F304264	1	Strap Kit	Tether
18	F434638	1	Armrest	-
18	F304271	1	Bracket	-
19	F309131	1	Bracket	-
20	24M7024	4	Washer	9 X 28 X 3 mm
21	14M7375	4	Flange Nut	M5
22	24M7240	2	Washer	13 X 25 X 3 mm
23	19M7403	1	Cap Screw	M12 X 35
24	A31867	2	Lock Nut	-
25	14H605	4	Nut	0.164"
26	12M7084	4	Lock Washer	4.300 mm
27	24H1943	4	Washer	3/16" X 3/8" X 0.040"
28	T82791	4	Screw	-
29	F385823	2	Plate	-
30	811147300	1	Electrical Connector Assy	-
31	F123771	1	Switch	Armrest Switch
32	19M9384	4	Screw	M5 X 45
33	19M7775	2	Screw	M6 X 16
34	AH87142	1	Clip	-
35	14M7375	4	Flange Nut	M5
36	F389080	1	Wiring Harness	Armrest Switch
37	812006100	1	Seat Belt	-
38	F437444	1	Bracket	(INCLUDES 7, 8, 10)
39	AT440791	1	Seat Kit	Armrest Pad and Bracket Not Illustrated
40	H86839	2	Snap Ring	-
41	F436327	2	Bushing	-

Mechanical Suspension Seat Components ( - 236908)

Нет текстового описания
