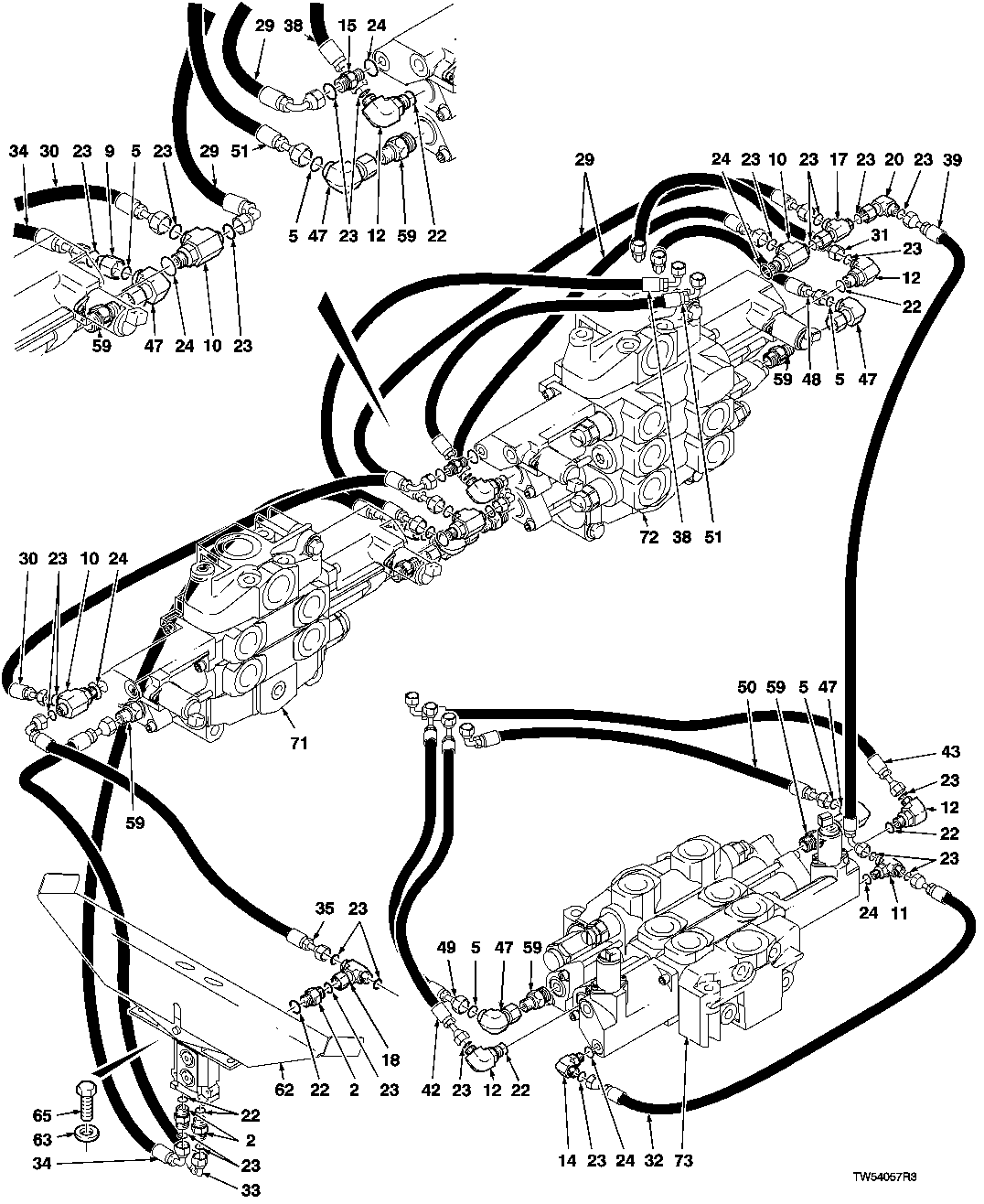

HYDRAULIC SYSTEM - SUPPLY LINES (VALVES) (SN -135123)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	1	Adapter Fitting	-
2	38H1168	3	Adapter Fitting	-
5	T77613	4	O-Ring	-
9	38H1480	1	Reducer	-
10	38H1022	3	Tee Fitting	-
11	38H1015	1	Tee Fitting	-
12	38H1009	4	Elbow Fitting	-
14	38H1003	1	Elbow Fitting	-
15	38H1159	1	Adapter Fitting	-
17	38H1029	1	Tee Fitting	-
18	38H1036	1	Tee Fitting	-
20	38H1093	1	Elbow Fitting	-
22	R26448	6	O-Ring	-
23	T77814	23	O-Ring	-
24	R28782	6	O-Ring	-
29	AT363347	2	Hydraulic Hose	Fabricate, (SUB FOR F125081)
30	AT363466	1	Hydraulic Hose	(SUB FOR 811393500)
31	F124022	1	Hydraulic Hose	Fabricate
32	AT363465	1	Hydraulic Hose	(SUB FOR 811393400)
33	AT363389	1	Hydraulic Hose	(SUB FOR F125148)
34	AT363348	1	Hydraulic Hose	(SUB FOR F125082)
35	AT363346	1	Hydraulic Hose	(SUB FOR F125080)
38	F124024	1	Hydraulic Hose	Fabricate
39	AT363349	1	Hydraulic Hose	(SUB FOR F125083)
42	AT363342	1	Hydraulic Hose	(SUB FOR F124027)
43	AT363347	1	Hydraulic Hose	Fabricate, (SUB FOR F125081)
47	38H1094	5	Elbow Fitting	-
48	AT363387	1	Hydraulic Hose	(SUB FOR F125098)
49	AT363388	1	Hydraulic Hose	(SUB FOR F125099)
50	AT363388	1	Hydraulic Hose	(SUB FOR F125099)
51	AT363388	1	Hydraulic Hose	(SUB FOR F125099)
59	F125105	6	Orifice	-
62	-	1	Part 33	SEE FOOT PEDAL FOR LIST OF PARTS
63	24M7336	4	Washer	9 X 16 X 1.600 mm
65	19M7867	4	Screw	M8 X 25, (SUB FOR 810917400 AND 19M7407)
71	-	1	Part 36	SEE SWING VALVE FOR LIST OF PARTS
72	-	1	Part 37	SEE JIB VALVE FOR LIST OF PARTS
73	-	1	Part 38	SEE MAIN VALVE FOR LIST OF PARTS

HYDRAULIC SYSTEM - SUPPLY LINES (VALVES) (SN -135123)
