HYDRAULIC SYSTEM - DRAIN LINES (VALVES) (SN 171240-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	5	Adapter Fitting	-
2	R28782	1	O-Ring	-
3	T77814	1	O-Ring	-
4	38H1004	1	Elbow Fitting	-
5	R26448	1	O-Ring	-
6	T77613	1	O-Ring	-
7	38H1009	1	Elbow Fitting	-
8	38H1010	1	Elbow Fitting	-
9	R26375	1	O-Ring	-
10	38H1015	1	Tee Fitting	-
11	38H1022	1	Tee Fitting	-
12	38H1024	1	Tee Fitting	-
13	T77857	2	O-Ring	-
14	38H1029	1	Tee Fitting	-
15	38H1030	1	Tee Fitting	-
16	38H1036	1	Tee Fitting	-
17	38H1038	1	Tee Fitting	-
18	38H1093	1	Elbow Fitting	-
19	38H1094	1	Elbow Fitting	-
20	38H1159	1	Adapter Fitting	-
21	38H1160	1	Adapter Fitting	-
22	38H1168	1	Adapter Fitting	-
23	38H1480	1	Reducer	-
24	38H1481	1	Reducer	-
25	AT363340	1	Hydraulic Hose	-
26	AT363342	2	Hydraulic Hose	-
27	AT363343	1	Hydraulic Hose	-
28	AT363345	1	Hydraulic Hose	-
29	AT363346	1	Hydraulic Hose	-
30	AT363347	3	Hydraulic Hose	-
31	AT363348	1	Hydraulic Hose	-
32	AT363349	1	Hydraulic Hose	-
33	AT363350	3	Hydraulic Hose	-
34	AT363351	1	Hydraulic Hose	-
35	AT363387	1	Hydraulic Hose	-
36	AT363388	3	Hydraulic Hose	-
37	AT363389	1	Hydraulic Hose	-
38	AT363465	1	Hydraulic Hose	-
39	AT363466	1	Hydraulic Hose	-
40	AT364086	1	Hydraulic Hose	-
41	AT364087	1	Hydraulic Hose	-
42	AT364088	1	Hose	-

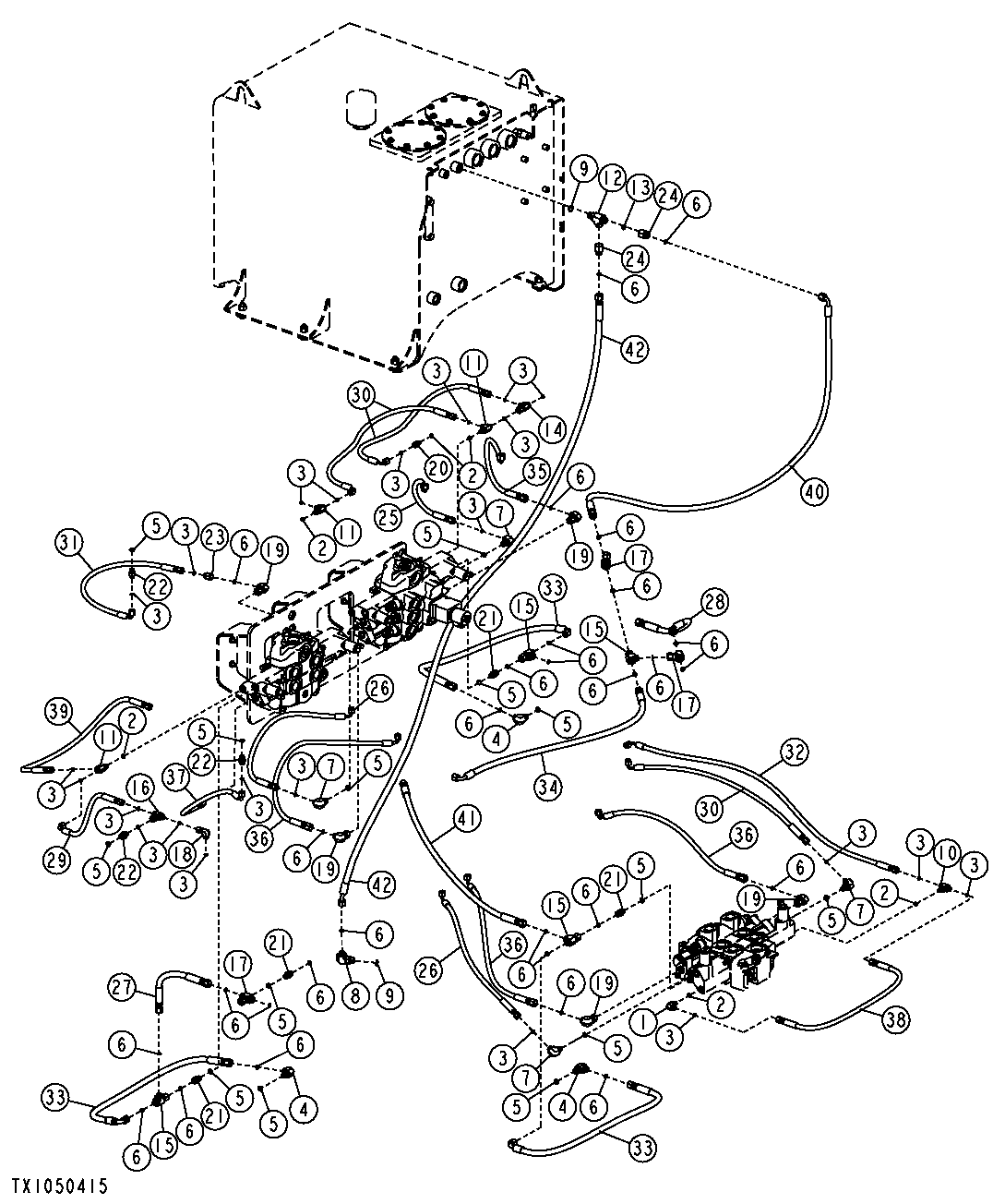

HYDRAULIC SYSTEM - DRAIN LINES (VALVES) (SN 171240-)
