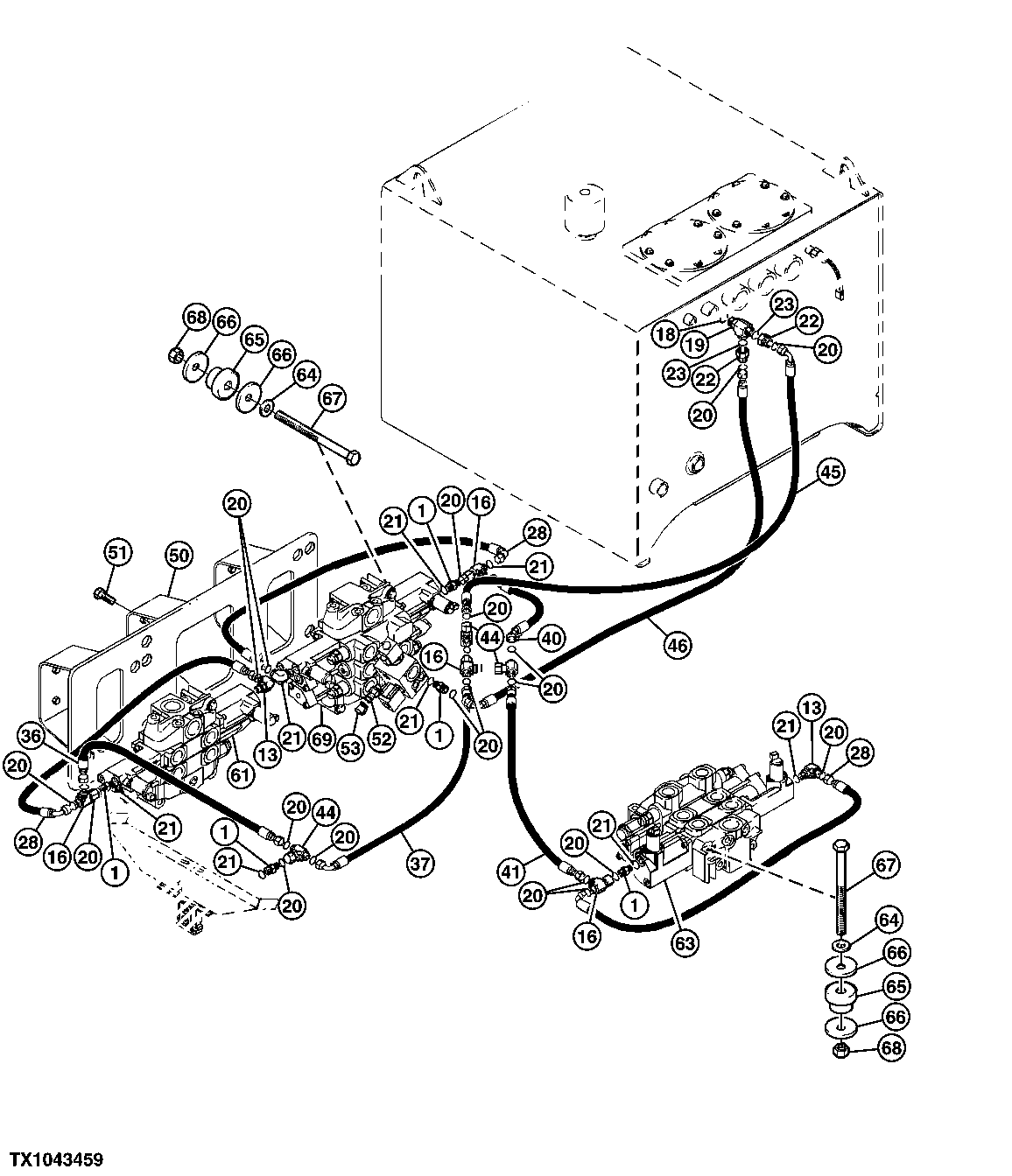

HYDRAULIC SYSTEM - DRAIN LINES (VALVES) (SN -171239)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	5	Adapter Fitting	-
13	38H1004	3	Elbow Fitting	-
16	38H1030	4	Tee Fitting	-
18	R26375	1	O-Ring	-
19	38H1024	1	Tee Fitting	-
20	T77613	21	O-Ring	-
21	R26448	8	O-Ring	-
22	38H1481	2	Reducer	-
23	T77857	2	O-Ring	-
28	AT363350	3	Hydraulic Hose	(SUB FOR F125087)
36	AT363343	1	Hydraulic Hose	(SUB FOR F125073)
37	AT363351	1	Hydraulic Hose	(SUB FOR F125088)
40	AT363345	1	Hydraulic Hose	(SUB FOR F125078)
41	AT364087	1	Hydraulic Hose	(SUB FOR AT251077)
44	38H1038	3	Tee Fitting	-
45	AT364086	2	Hydraulic Hose	(SUB FOR AT182343)
46	AT364086	1	Hydraulic Hose	(SUB FOR AT182343)
46	AT364088	1	Hose	Fabricate, (SUB FOR AT359784)
50	F389403	1	Bracket	-
50	AT347186	1	Bracket	(SUB FOR F399172)
51	19M7662	6	Cap Screw	M10 X 30
52	XPD341	1	Diagnostic Coupling	-
53	R77175	1	Cover	(SUB FOR AT205083)
61	-	1	Part 24	SEE JIB VALVE FOR PARTS LIST
63	-	1	Part 25	SEE MAIN VALVE FOR PARTS LIST
64	R70663	6	Washer	-
65	AT139776	6	Isolator	-
66	T20217	12	Washer	-
67	19M8413	6	Cap Screw	M12 X 150
68	A31867	6	Lock Nut	-
69	-	1	Part 31	SEE SWING VALVE FOR PARTS LIST

HYDRAULIC SYSTEM - DRAIN LINES (VALVES) (SN -171239)
