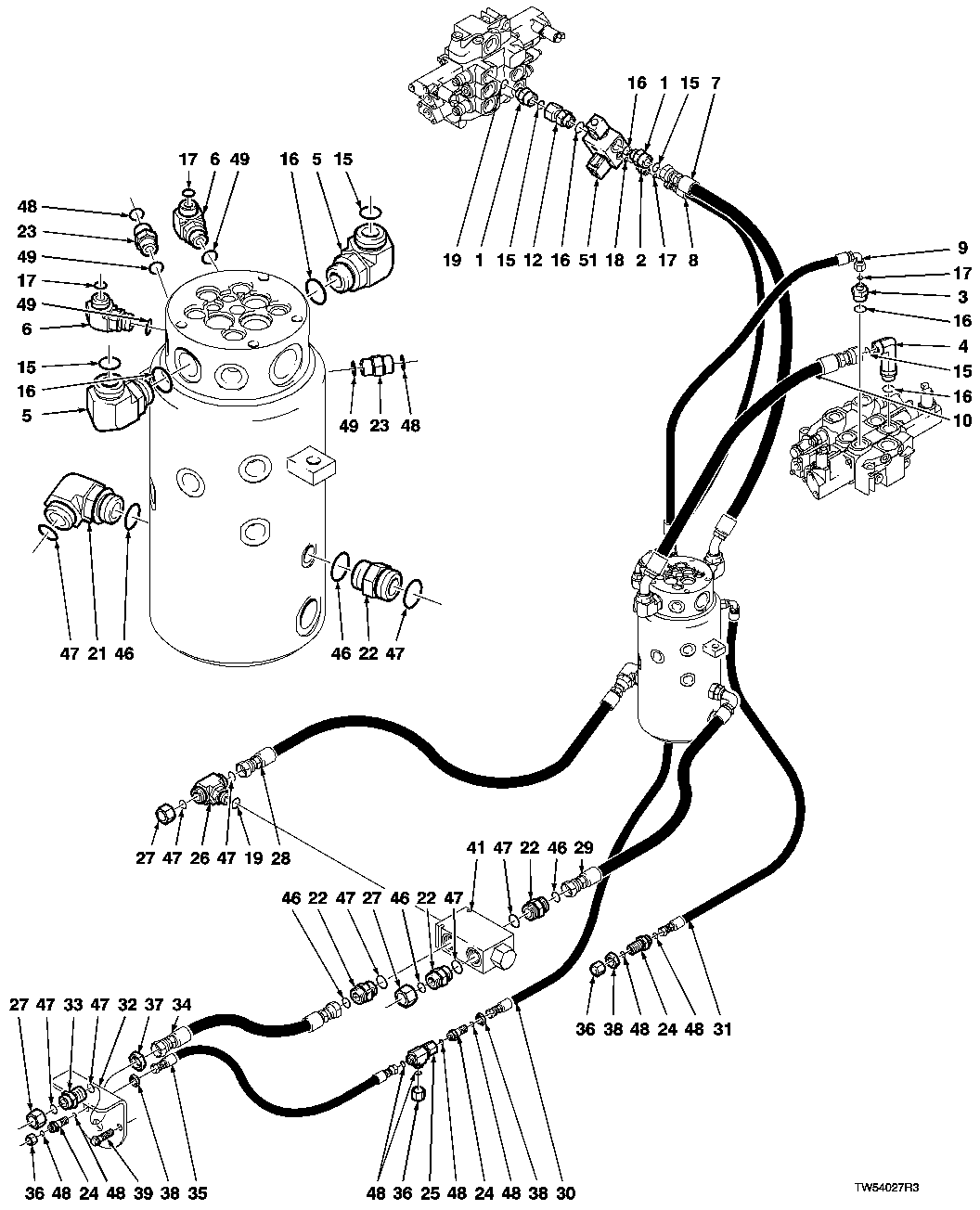

HYDRAULIC SYSTEM - ATTACHMENTS (SN -171648)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1164	2	Adapter Fitting	-
2	38H1173	1	Adapter Fitting	-
3	38H1176	1	Adapter Fitting	-
4	38H1493	1	Elbow Fitting	-
5	38H1037	2	Elbow Fitting	-
6	38H1005	2	Elbow Fitting	-
7	AT363336	1	Hydraulic Hose	(SUB FOR F125051)
8	F125048	1	Hydraulic Hose	Fabricate
9	AT363330	1	Hydraulic Hose	Fabricate, (SUB FOR 811682800)
10	AT363335	1	Hydraulic Hose	(SUB FOR F125050)
12	38H1071	1	Adapter Fitting	-
15	T76938	5	O-Ring	-
16	R29936	6	O-Ring	-
17	T77857	4	O-Ring	-
18	R26448	1	O-Ring	-
19	U12547	3	O-Ring	-
21	38H1037	1	Elbow Fitting	-
22	38H1164	4	Adapter Fitting	-
23	38H1161	2	Adapter Fitting	-
24	38H1275	3	Adapter Fitting	-
25	38H1031	1	Tee Fitting	-
26	38H1318	1	Tee Fitting	-
27	38H1419	3	Fitting	-
28	AT363321	1	Hydraulic Hose	Fabricate, (SUB FOR 811277400)
29	AT363320	1	Hydraulic Hose	Fabricate, (SUB FOR 811288500)
30	AT363322	1	Hydraulic Hose	Fabricate, (SUB FOR F125053)
31	F124189	1	Hydraulic Hose	Fabricate
32	F399145	1	Plate	(SUB FOR F390513)
33	38H1287	1	Adapter Fitting	-
34	AT363318	1	Hydraulic Hose	Fabricate, (SUB FOR 811277000)
35	AT363319	1	Hydraulic Hose	Fabricate, (SUB FOR F125271)
36	38H5120	3	Fitting	-
37	38H5095	1	Nut	1-7/16"
38	38H5092	3	Nut	13/16"
39	19M7788	2	Screw	M12 X 25
41	-	1	Part 36	SEE SAW DIVERTER VALVE FOR PARTS LIST
46	R29936	5	O-Ring	-
47	T76938	9	O-Ring	-
48	T77857	10	O-Ring	-
49	R26375	4	O-Ring	-
51	-	1	Part 41	SEE DELIMBER VALVE FOR PARTS LIST
