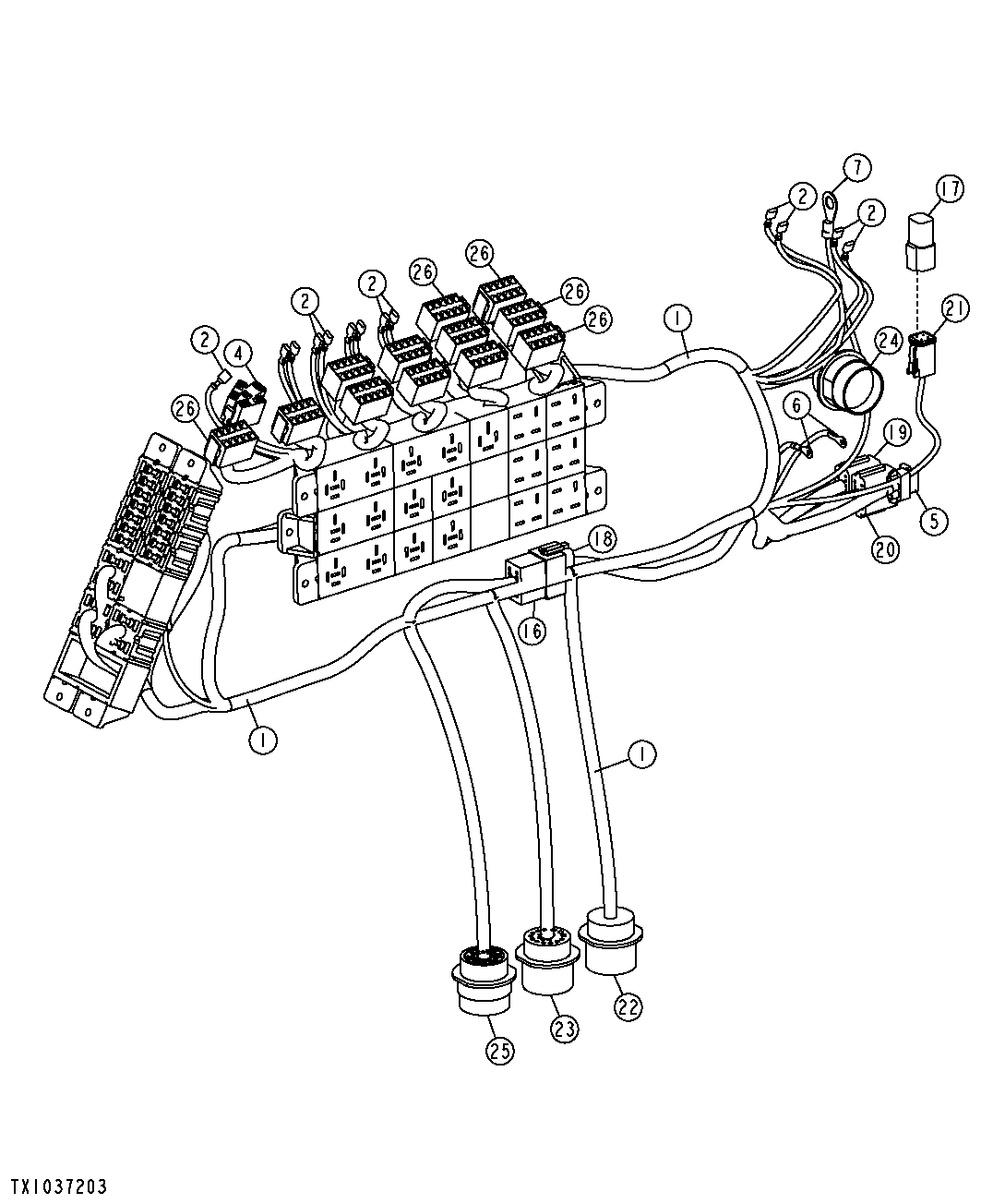

CONSOLE WIRING (167282-)

CONSOLE WIRING (167282-)

CONSOLE WIRING (167282-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

CONSOLE WIRING (167282-)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT347931	1	Wiring Harness	-
2	57M9451	14	Elec. Connector Terminal	(WARNING LIGHTS)
4	L38138	1	Elec. Connector Housing	(KEY SWITCH)
4	-	3	Part 4	(ORDER 12124519)
4	57M8888	2	Elec. Connector Terminal	-
5	57M7280	1	Elec. Connector Housing	(HVAC)
5	57M7491	1	Elec. Connector Terminal	-
5	R78062	1	Elec. Connector Seal	-
5	57M7297	2	Elec. Connector Terminal	-
5	R78059	2	Elec. Connector Seal	-
5	57M7274	1	Elec. Connector Accessory	-
6	-	2	Part 12	(ORDER 101414K02)(ALARM)
7	-	2	Part 13	(ORDER 110640AK01)(GROUND)
16	57M7633	1	Electrical Connector Assy	(JS INTERFACE TO JS PLUG)
16	-	1	Part 15	(ORDER 10613361016)
16	57M7682	1	Elec.Connect Locking Device	-
17	57M7628	1	Electrical Connector Assy	(CAP)
17	R78069	2	Elec. Connector Cavity Plug	-
18	57M8008	1	Electrical Connector Assy	(JS INTERFACE TO FRAME)
18	-	12	Part 20	(ORDER 10613362016)
18	57M7681	1	Elec. Connector Terminal	-
19	57M8008	1	Electrical Connector Assy	(CAB PLUG)
19	-	7	Part 23	(ORDER 10613362016)
19	57M7542	3	Elec. Connector Terminal	-
19	R78069	2	Elec. Connector Cavity Plug	-
19	57M7681	1	Elec. Connector Terminal	-
20	57M9459	1	Elec. Connector Housing	(TO GAUGE PACK)
20	-	10	Part 28	(ORDER 10613362016)
20	R78069	2	Elec. Connector Cavity Plug	-
20	57M7681	1	Elec. Connector Terminal	-
21	57M7535	1	Elec. Connector Terminal	(JD LINK)
21	57M7618	1	Electrical Connector Assy	-
21	-	4	Part 32	(ORDER 10613362016)
22	57M8111	1	Elec. Connector Housing	(RIGHT BOTTOM CONSOLE PLUG)
22	-	6	Part 35	(ORDER 10613361016)
22	57M7537	1	Elec. Connector Terminal	-
22	R78069	7	Elec. Connector Cavity Plug	-
22	57M7765	1	Lock Washer	-
22	E73240	1	Nut	-
23	R78068	3	Elec. Connector Terminal	-
23	E73240	1	Nut	-
23	57M7765	1	Lock Washer	-
23	R78069	1	Elec. Connector Cavity Plug	-
23	57M7613	1	Elec. Connector Terminal	-
23	-	13	Part 41	(ORDER 10613361016)
23	57M8005	1	Elec. Connector Housing	(MID BOTTOM CONSOLE PLUG)
24	57M7748	1	Elec. Connector Housing	(JOYSTICK)
24	E73240	1	Nut	-
24	57M7765	1	Lock Washer	-
24	R78069	2	Elec. Connector Cavity Plug	-
24	57M7429	2	Elec. Connector Terminal	-
24	R78068	2	Elec. Connector Terminal	-
24	-	15	Part 48	(ORDER 10613361016)
25	57M7666	101	Elec. Connector Housing	(LEFT BOTTOM CONSOLE PLUG)
25	-	20	Part 55	(ORDER 10613361016)
25	R78069	11	Elec. Connector Cavity Plug	-
25	57M7765	1	Lock Washer	-
25	E73240	1	Nut	-
26	T210282	12	Elec. Connector Housing	(SWITCHS)
26	57M7429	62	Elec. Connector Terminal	(14-16 GA)
26	57M7512	14	Elec. Connector Terminal	(10-12 GA)
