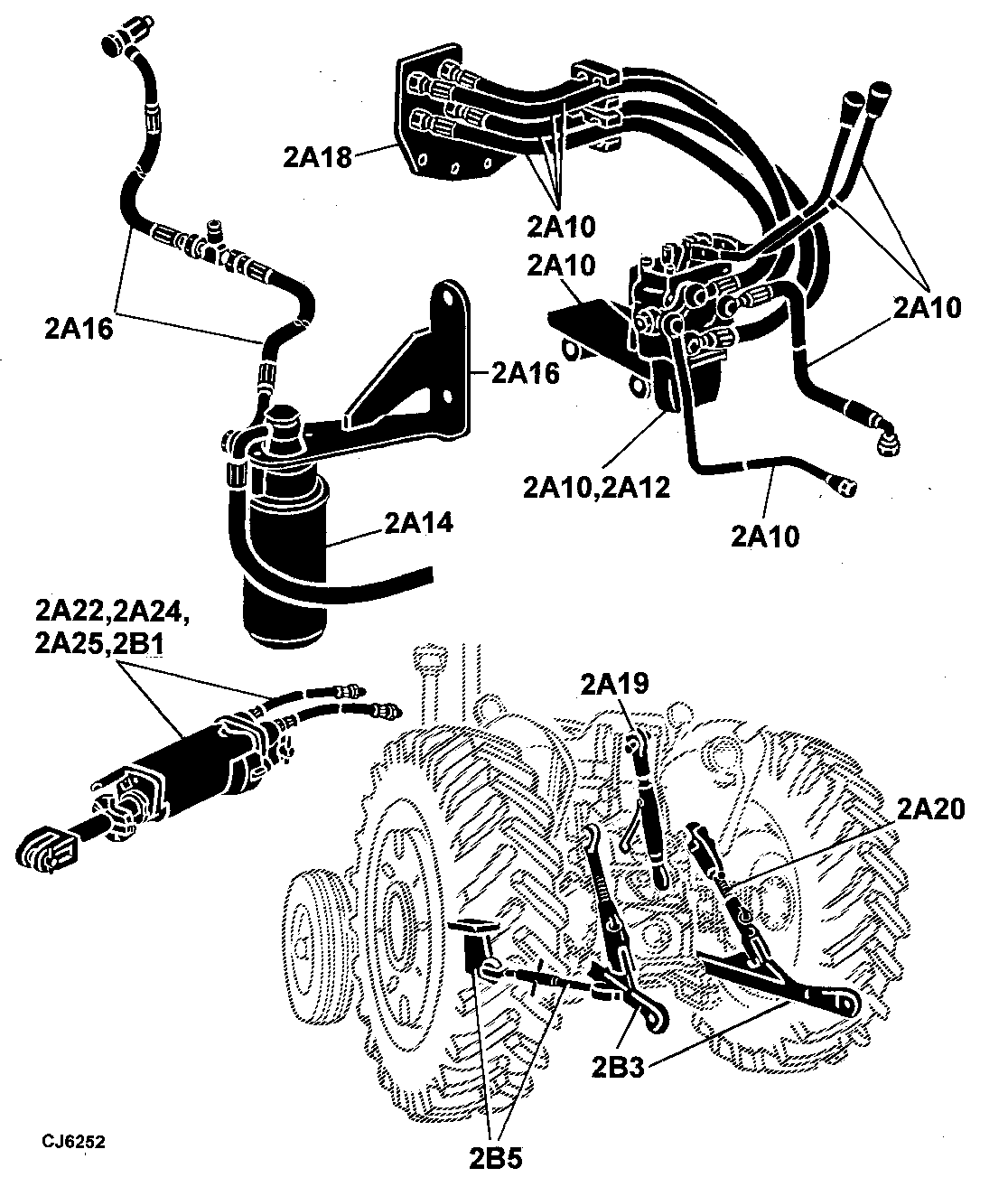

72 3-POINT HITCH, SELECTIVE CONTROL VALVES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	LATERAL STABILIZING BAR [02B05]	-
-	-	1	OIL FILTER/REDUCTION VALVE OIL LINES [02A14]	-
-	-	1	OIL LINES AND OIL FILTER BRACKET [02A16]	-
-	-	1	OIL LINES-SELECTIVE CONTROL VALVE(DOUBLE-ACTING) [02A10]	-
-	-	1	REAR BREAKAWAY COUPLER [02A18]	-
-	-	1	REMOTE CYLINDER [02A22]	-
-	-	1	REMOTE CYLINDER [02A24]	-
-	-	1	REMOTE CYLINDER [02A25]	-
-	-	1	REMOTE CYLINDER [02B01]	-
-	-	1	SELECTIVE VALVE [02A12]	-
-	-	1	THREE POINT HITCH CENTER LINK [02A19]	-
-	-	1	THREE POINT HITCH LIFT LINKS [02A20]	-
-	-	1	THREE POINT HITCH TELESCOPING DRAFT LINKS [02B03]	-

72 3-POINT HITCH, SELECTIVE CONTROL VALVES
