HYDR.TRAILER BRAKE-WITH HYDROST.STEERING [02B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

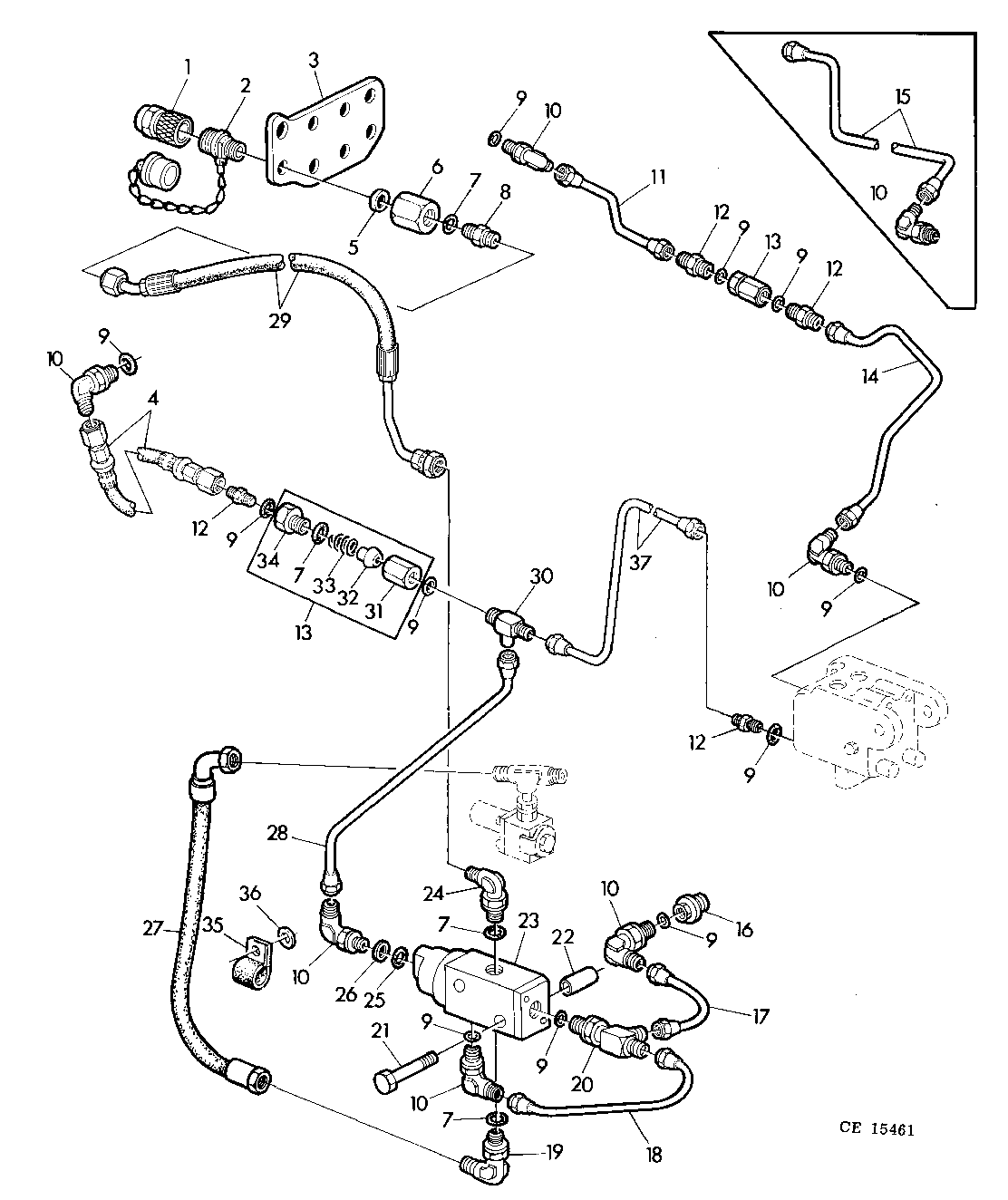

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR52361	1	HYD. QUICK-CONNECT COUPLER	-
2	AR52372	1	PLUG	(SUB FOR AL31944)
3	L30207	1	PLATE	-
4	AL29859	1	OIL LINE	RH
5	L37599	1	Sealing Ring	-
6	L40525	1	Nut	(SUB FOR L30206)
7	R26448	5	O-Ring	-
8	R27212	1	Fitting	-
9	R26287	11	O-Ring	-
10	AR26746	7	Elbow Fitting	-
11	AL29860	1	OIL LINE	LH
12	R27139	3	FITTING	-
13	AL25103	2	Valve	ASSY,INCL KEYS 7(2),31-34
14	AL25114	1	OIL LINE	LH
15	AL25113	1	OIL LINE	RH
16	L28639	1	Pipe Plug	-
17	AL23076	1	OIL LINE	-
18	AL25104	1	OIL LINE	-
19	AT35120	1	Elbow Fitting	(SUB FOR AR37017)
20	AL25099	1	TEE FITTING	1,2MM
20	AL25791	1	TEE FITTING	1,4MM
21	19H2054	1	CAP SCREW	3/8"X4-3/4"
22	28H1521	1	Spacer	3/8"X.562"
23	AL25867	1	VALVE	(ORD W/ AL25099, AL25791)
24	AR26725	1	ELBOW FITTING	-
25	L53811	1	O-Ring	-
26	51M4234	1	Sealing Ring	12X16MM
27	AL34910	1	OIL LINE	-
28	AL36187	1	Oil Line	-
28	AL25143	1	OIL LINE	-
29	AL24693	1	OIL LINE	-
30	AR45251	1	Tee Fitting	-
31	L30719	2	Valve	-
32	L30722	2	Poppet	-
33	L30720	2	Compression Spring	-
34	L30721	2	Valve Cover	-
35	L37536	1	Clamp	-
36	24M7028	1	Washer	-
37	AL36189	1	Oil Line	-
