POWER STEERING LINES, HOSES AND STEERING CYLINDER [E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

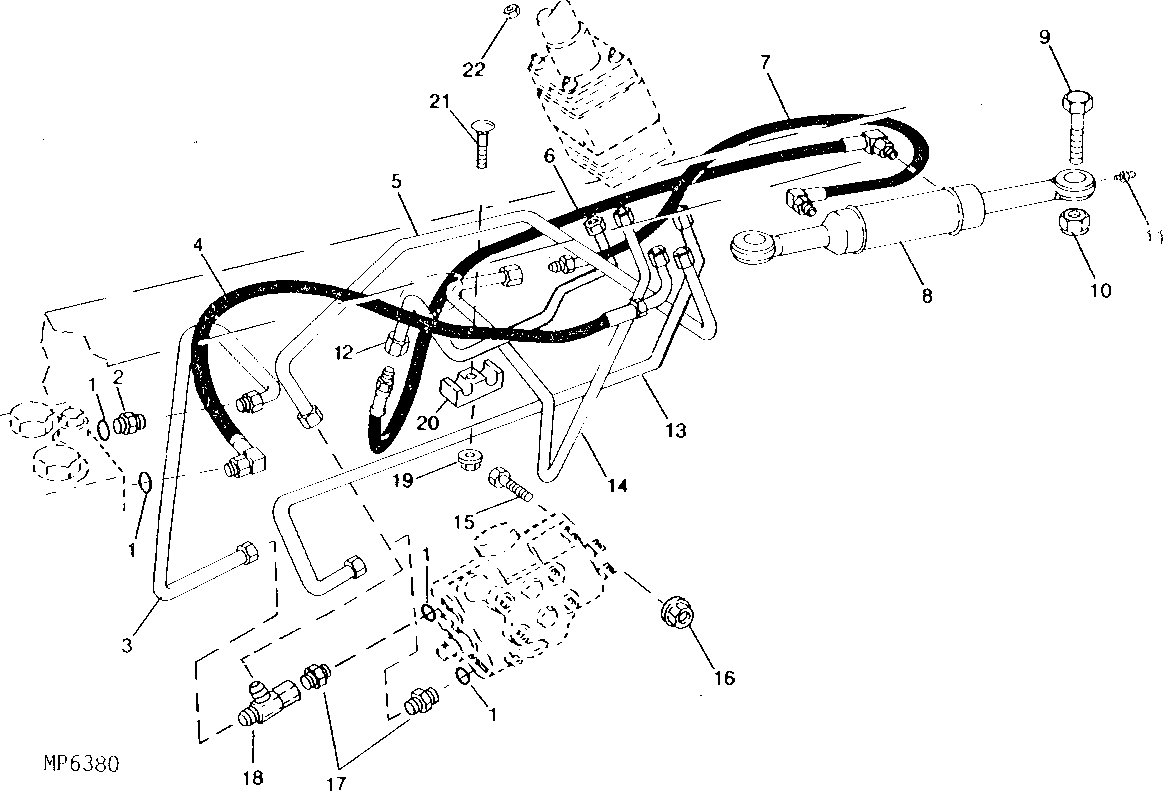

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26448	4	O-Ring	-
2	AM31413	1	Fitting	-
3	AM102884	1	OIL LINE	TRANSMISSION CHARGE PUMP RETURN, (SUB AM107102) (ALSO ORDER AT37518)
3	AM107102	1	OIL LINE	-
4	AM100312	1	HYDRAULIC HOSE	POWER STEERING INLET (L.H. MIDDLE PORT TO TRANSMISSION CHARGE PUMP)
5	AM102885	1	OIL LINE	POWER STEERING OUTLET (R.H. MIDDLE PORT TO CONTROL VALVE)
5	AM107103	1	OIL LINE	-
6	AM39190	1	HYDRAULIC HOSE	STEERING CYLINDER FRONT
7	AM39190	1	HYDRAULIC HOSE	STEERING CYLINDER REAR
8	AM39310	1	Hydraulic Cylinder	(SUB AM108777)
8	AM108777	1	HYDRAULIC CYLINDER	(WITH PERMANENT GREASE FITTING) (SUB FOR AM105769)
9	19M7417	2	Cap Screw	M16 X 65, HS, HEAD MARKED 10.9
10	14M7328	2	Lock Nut	M16
11	JD7844	1	Lubrication Fitting	-
12	AM102882	1	Tube	(L.H. REAR PORT TO FRONT CYLINDER HOSE)
13	AM102883	1	Tube	(FRONT PORT TO CONTROL VALVE INLET)
14	AM100311	1	OIL LINE	(R.H. REAR PORT TO REAR CYLINDER HOSE)
14	AM103905	1	OIL LINE	(SUB AM103905) (R.H. REAR PORT TO REAR CYLINDER HOSE)
14	AM106597	1	OIL LINE	(R.H. REAR PORT TO REAR CYLINDER HOSE)
15	19M7595	2	Cap Screw	M6 X 50, (VALVE TO FRAME)
16	14M7303	2	Flange Nut	M6
17	AM31413	2	Fitting	(USE WITH AM102884 OIL LINE)
18	AT36921	1	Tee Fitting	(USE WITH AM102884 OIL LINE)
18	AT37518	1	Tee Fitting	(USE WITH AM107102 OIL LINE)
19	14M7165	1	Lock Nut	-
19	24M7139	1	Washer	6.400 X 18 X 1.600 MM
20	M84962	1	Clamp	(STEERING CYLINDER LINES TO FRAME)
21	03M7290	1	Bolt	M6 X 30
22	14H650	1	Nut	5/16", (STEERING VALVE TO FRAME)
