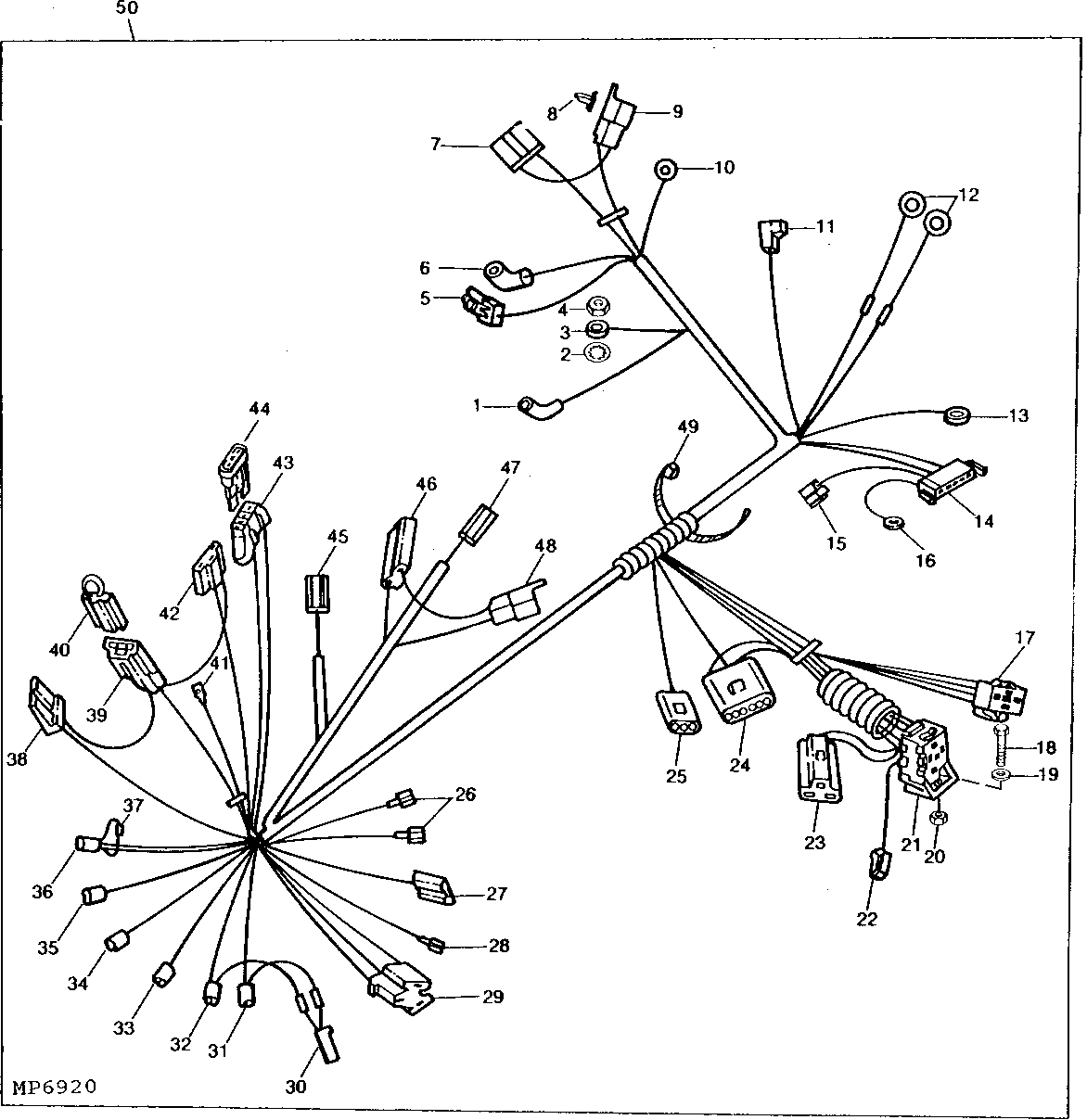

MAIN WIRING HARNESS (S.N. 596723- ) [C05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	WATER TEMP
2	12H295	1	Lock Washer	0.190"
3	-	1	Part 3	GLOW PLUG
4	14M7100	1	Nut	M4
5	-	1	Part 5	PTO CLUTCH
6	-	1	Part 6	OIL PRESSURE
7	-	1	Part 7	HOURMETER
8	M76268	1	Clip	TERMINAL RETAINER
9	-	1	Part 9	HEADLIGHT
10	-	1	Part 10	ENGINE GROUND
11	-	1	Part 11	STARTER (SOLENOID TERMINAL)
12	-	2	Part 12	STARTER (POSITIVE TERMINAL)
13	-	1	Part 13	RECTIFIER REGULATOR GROUND
14	-	1	Part 14	RECTIFIER REGULATOR
15	-	1	Part 15	ALTERNATOR (ORDER AM108847)
16	-	1	Part 16	(CHARGING CIRCUIT TO STARTER)
17	-	1	Part 17	NEUTRAL START RELAY (ORDER AM108843)
18	19M7640	1	Cap Screw	M5 X 12
19	24M7054	1	Washer	6.400 X 12 X 1.600 MM
20	14M7265	1	Lock Nut	M5
21	-	1	Part 21	GLOW PLUG CONTROLLER
22	-	1	Part 22	FUEL PUMP
23	-	1	Part 23	ELECTRIC FUEL SHUTOFF
24	-	1	Part 24	CONTROL MODULE
25	-	1	Part 25	CONTROL MODULE
26	-	2	Part 26	TRANS. NEUTRAL START SWITCH
27	-	1	Part 27	LIGHT SWITCH
28	-	1	Part 28	IGNITION SWITCH GROUND FITTING
29	-	1	Part 29	IGNITION SWITCH
30	-	1	Part 30	IGNITION SWITCH
31	-	1	Part 31	LOW FUEL LIGHT (ORDER AM108844)
32	-	1	Part 32	TEMPERATURE LIGHT (ORDER AM108844)
33	-	1	Part 33	OIL LIGHT (ORDER AM108844)
34	-	1	Part 34	CHARGE LIGHT (ORDER AM108844)
35	-	1	Part 35	GLOW PLUG LIGHT (ORDER AM108844)
36	-	1	Part 36	PTO LIGHT (ORDER AM108844)
37	AM101006	1	Rectifier Kit	DIODE
38	-	1	Part 38	FRONT PTO
39	-	1	Part 39	REAR PTO KIT
40	-	1	Part 40	JUMPER (WITHOUT REAR PTO)
41	-	1	Part 41	REAR PTO LIGHT
42	-	1	Part 42	FRONT PTO
43	-	1	Part 43	(ORDER AM108846)
44	57M7121	1	Fuse	10 AMP
44	99M7069	1	Fuse	25 AMP (FLAT)
45	-	1	Part 46	BRAKE SWITCH
46	-	1	Part 47	LOW FUEL SENSOR
47	-	1	Part 48	SEAT SWITCH
48	-	1	Part 49	TAILLIGHTS
49	R44302	2	Tie Band	(TO FRAME)
50	AM107764	1	WIRING HARNESS	MAIN
..	AM107087	1	Link Kit	(*) FUSIBLE LINK
..	AM108843	1	Socket Kit	RELAY SOCKET (INCLUDES RELAY SOCKET, (7) RELAY TERMINALS AND M76268 TERMINAL RETAINER)
..	AM108844	1	Socket Kit	BULB SOCKET (INCLUDES BULB SOCKET AND (3) TERMINALS)
..	AM108846	1	Fuse Box	FUSE BLOCK HOLDER (INCLUDES 4-PLACE FUSE HOLDER, 4-POSITION FUSE TERMINAL AND (6) SINGLE BLADE TERMINALS)
..	AM108847	1	Electrical Repair Kit	ALTERNATOR CONNECTOR (INCLUDES 2-PIN CONNECTOR AND (3) TERMINALS)

MAIN WIRING HARNESS (S.N. 596723- ) [C05]
