Открытый узел

LONG ARM 4.0 M

LONG ARM 4.0 M

LONG ARM 4.0 M

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

LONG ARM 4.0 M

Нет текстового описания

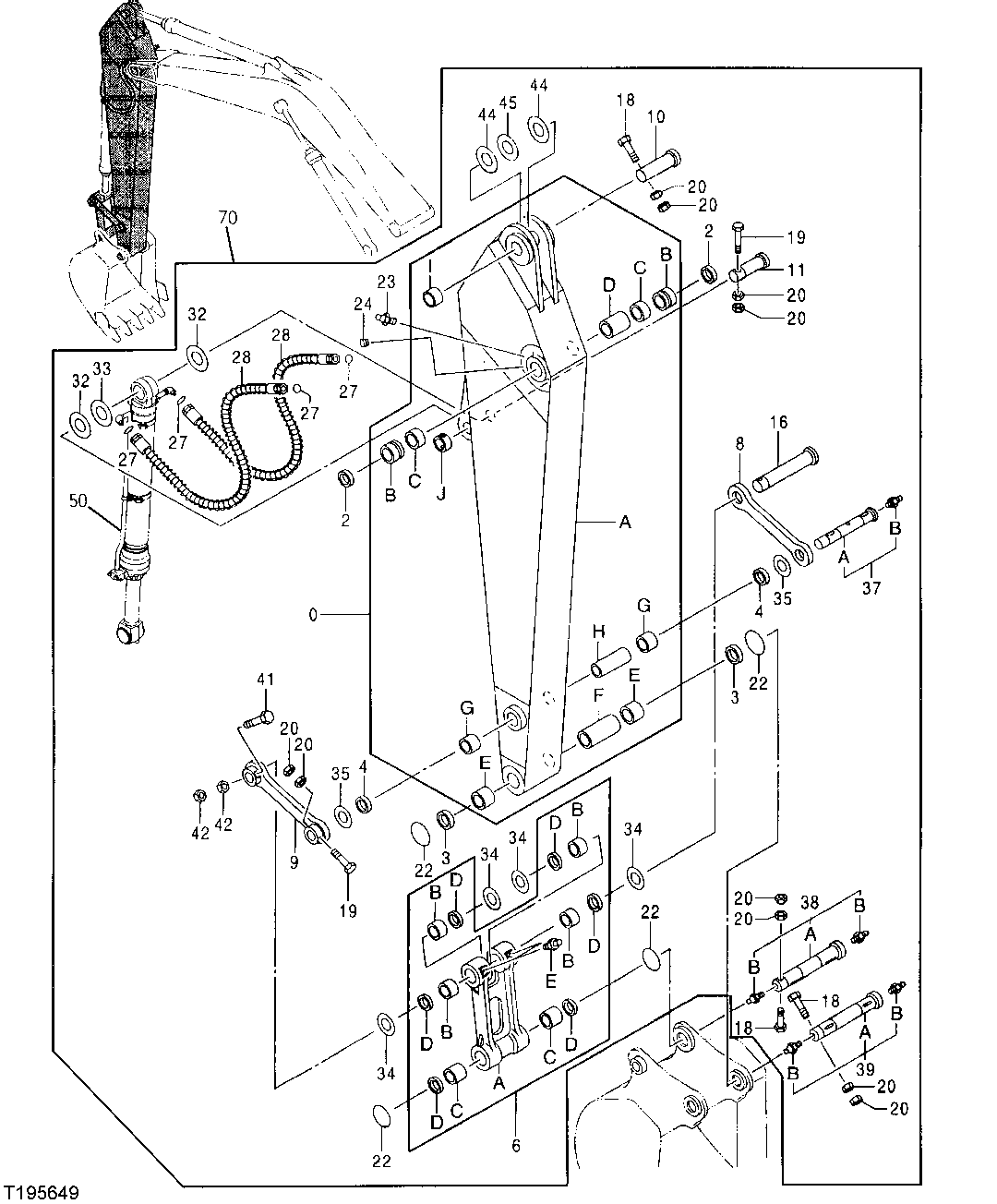

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7034140	1	Arm	(SUB FOR AT183136)(CONVENIENCE ASSEMBLY)
2	TH103200	2	Seal	-
3	TH102411	2	Seal	-
4	TH102445	2	Seal	-
6	8069128	1	Link	(SUB FOR AT250209)
8	3055521J	1	Link	(SUB FOR AT200979 OR 3055521)
9	8071699J	1	Link	(SUB FOR AT250240 OR 8071699)
10	8080908	1	Pin Fastener	(FLAG PIN)
10	AT219637	1	Pin	(CROSSBOLT PIN)
11	AT219638	1	Pin Fastener	-
16	AT192341	1	Pin Fastener	(SUB FOR AT219655)
18	19M8100	3	Cap Screw	M20 X 180
19	19M8503	2	Cap Screw	M20 X 160
20	14M7277	10	Nut	M20
22	AT349467	4	Seal	SPLIT O-RING
22	4100180	4	O-Ring	(SUB FOR TH103229)STANDARD O-RING
23	TH100074	2	Lubrication Fitting	-
24	94-2010	2	Fitting Plug	(SUB FOR TH100689)
27	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
28	4397354	2	Hydraulic Hose	Fabricate, (SUB FOR AT250113)
32	4372971	2	Washer	(SUB FOR AT217822)
33	4380739	1	Washer	(SUB FOR AT250023)
34	4387447R	4	Thrust Washer	(SUB FOR AT250076 OR 4387447)
35	4387448	2	Washer	(SUB FOR AT250077)
37	-	1	Part 40	-
38	-	1	Part 43	-
39	-	1	Part 46	-
41	AT128457	1	Bolt	M22 X 200
42	J951022	2	Nut	(SUB FOR TH102457)
44	4387440	2	Washer	(SUB FOR AT250073)
45	4387443	1	Washer	(SUB FOR AT250074)
50	-	1	Part 53	(BUCKET) (FOR DETAIL SEE SEPARATE PAGE)
70	AT183132	1	Arm	WHOLEGOODS (INCLUDES STANDARD ARM, BUCKET CYLINDER, HOSES, AND LINKAGE)
90	AT349467	1	Seal	(SUB FOR T238397)(NOT ILLUSTRATED)
90	19M9304	1	Cap Screw	M5 X 90, (NOT ILLUSTRATED)
90	14M7572	1	Lock Nut	M5, (NOT ILLUSTRATED)
90	24M7027	1	Washer	5.300 X 10 X 1 mm, (NOT ILLUSTRATED)
0A	-	1	Part 2	-
0B	4443884	2	Bushing	(SUB FOR 4381854 ) (SUB FOR AT250025)
0C	4381855	2	Bushing	(SUB FOR AT250026)
0D	4382146	1	Spacer	(SUB FOR AT250031)
0E	4381856	2	Bushing	(SUB FOR AT250027)
0F	4382148	1	Spacer	(SUB FOR AT250033)
0G	4358100	2	Bushing	(SUB FOR AT217787)
0H	4382147	1	Spacer	(SUB FOR AT250032)
0I	4662435	1	Stop	(SUB FOR AT131769 OR 4205110)
0J	TH102409	1	Bushing	92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")
6A	-	1	Part 16	-
6B	4381857	4	Bushing	(SUB FOR AT250028)
6C	4381856	2	Bushing	(SUB FOR AT250027)
6D	TH102411	6	Seal	-
6E	TH100074	2	Lubrication Fitting	-
37A	TH111181	1	Pin Fastener	-
37B	TH100074	1	Lubrication Fitting	-
38A	TH112086	1	Pin Fastener	-
38B	TH100074	2	Lubrication Fitting	-
39A	AT164648	1	Pin Fastener	-
39B	TH100074	2	Lubrication Fitting	-
