Открытый узел

Auxiliary Hydraulic Line (One Way Flow - Hammers)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4419373	1	Pressure Relief Valve	(SUB FOR AT185397)
2	H61354	2	Flange Fitting	-
3	19M7576	4	Screw	M10 X 30, (SUB FOR J781030)
4	TH101926	1	O-Ring	-
5	4207425	1	Adapter Fitting	(SUB FOR TH111740)
6	T78612	1	O-Ring	-
7	T78313	1	O-Ring	-
8	AT217763	1	Hydraulic Hose	1" X 1700 mm (67") X 36.5252"
9	19M7753	12	Cap Screw	M12 X 70
10	12H301	16	Lock Washer	1/2"
11	4189860	10	Clamp	(SUB FOR TH108314)
12	AT163473	1	Hydraulic Hose	36.5252" X 1612 mm (63-1/2") X 36.5252"
13	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
14	AT163479	1	Line	-
15	AT186558	1	Oil Line	-
16	AT187891	1	Hydraulic Hose	36.5252" X 1828 mm (72") X 36.5252"
17	AT186575	1	Hydraulic Hose	1-5/8" X 1828 mm (72") X 42.8752"
19	U13639	2	O-Ring	-
20	AT186126	1	Quick Coupler	(ORDER (1) FOR EACH ADDITIONAL ATTACHMENT)
21	AT186124	1	Quick Coupler	(ORDER (1) FOR EACH ADDITIONAL ATTACHMENT)
22	19M7361	4	Cap Screw	M12 X 50
23	4202103	8	Clamp	(SUB FOR TH108302)
24	14M7275	4	Nut	M12
25	AT186557	1	Hydraulic Hose	-
26	AT186556	1	Oil Line	-
27	AT163476	2	Line	-
28	AT186574	1	Hydraulic Hose	-
29	T184549	2	Spacer	-
30	T166675	2	Plate	(RIGHT SIDE OF BOOM)
30	T167276	2	Plate	(LEFT SIDE OF BOOM)
31	AT190587	2	Clamp	(RIGHT SIDE OF BOOM)
31	AT190586	2	Clamp	(LEFT SIDE OF BOOM)
32	T166674	2	Plate	(RIGHT SIDE OF BOOM)
32	T167277	2	Plate	(LEFT SIDE OF BOOM)
33	24H1219	8	Washer	7/16" X 1" X 0.083"
34	19H3197	4	CAP SCREW	7/16" X 4", (RIGHT SIDE OF BOOM)
34	19H2732	4	Cap Screw	3/8" X 2-3/4", (LEFT SIDE OF BOOM)
35	4190127	2	Clamp	(SUB FOR TH108313)
36	38H1418	2	Fitting	-
37	T77858	2	O-Ring	-
38	38H1180	1	Adapter Fitting	(NOT ILLUSTRATED)
39	AT186128	1	Cap	DUST COVER, (NOT ILLUSTRATED)
40	AT186129	1	Plug	DUST COVER, (NOT ILLUSTRATED)
41	H126247	1	Clamp	(NOT ILLUSTRATED)
42	03M7189	1	Bolt	M8 X 45, (NOT ILLUSTRATED)
43	14M7020	1	Wing Nut	M8, (NOT ILLUSTRATED)
44	24M7036	1	Washer	9 X 16 X 1.600 mm, (NOT ILLUSTRATED)
45	T183966	1	Wrench	-
46	-	1	Part 49	WHOLEGOODS (AUXILIARY HYDRAULIC LINE) (ONE WAY FLOW - HAMMERS), ( AT196996 NLA)

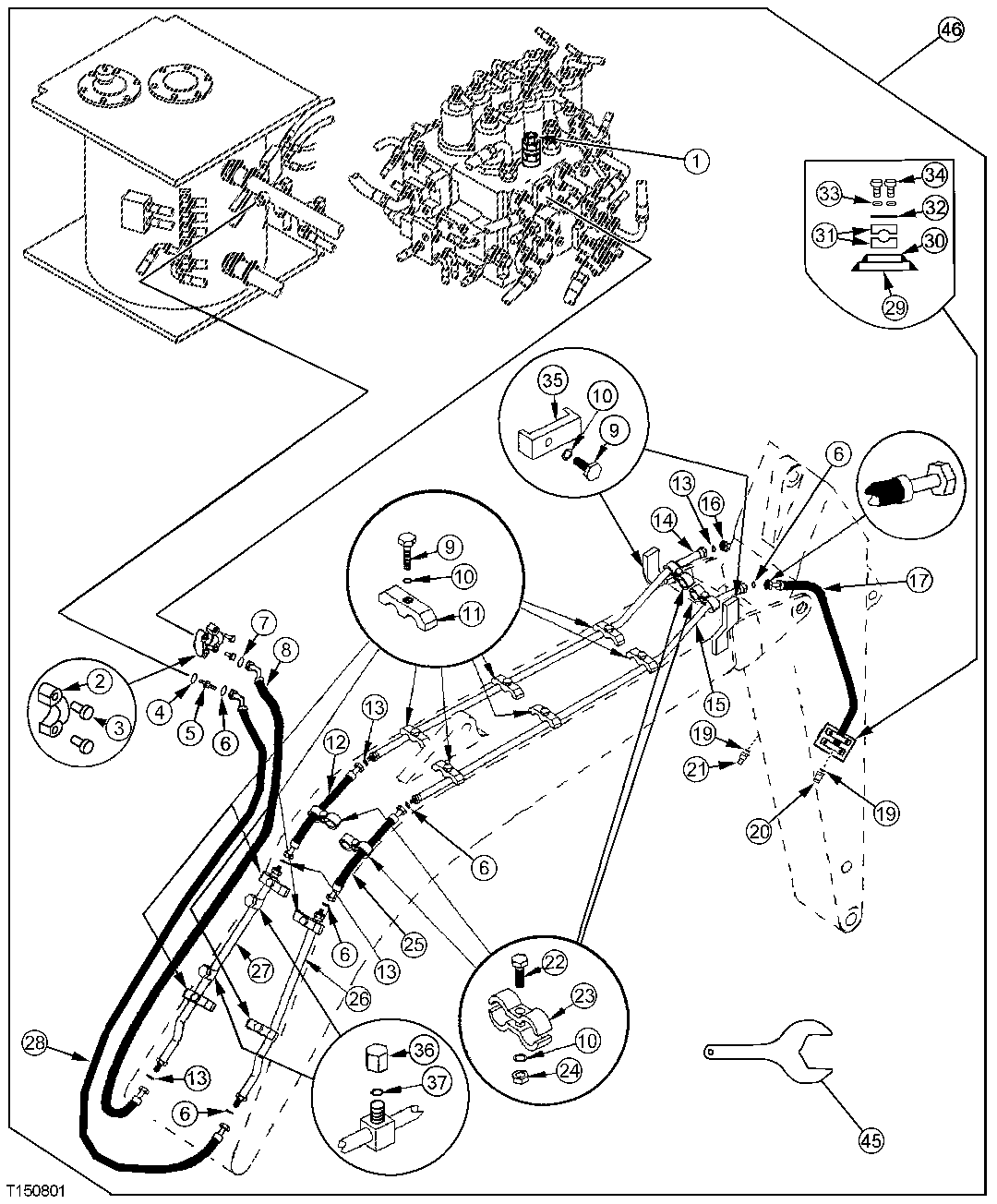

Auxiliary Hydraulic Line (One Way Flow - Hammers)
