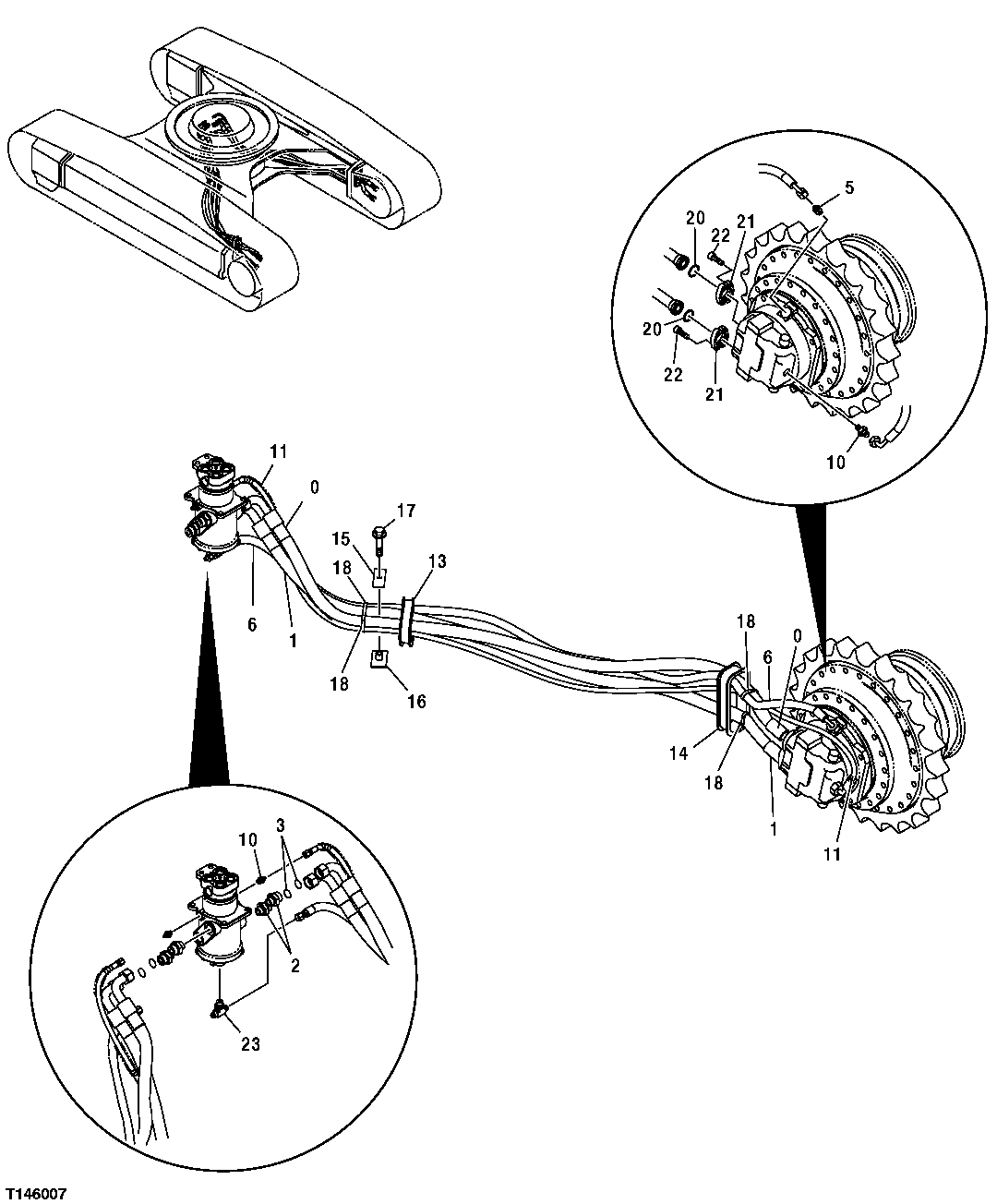

PROPEL MOTOR LINES (TRACK FRAME) (370C)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4327470	1	Hydraulic Hose	(SUB FOR TH4327470)
1	4327471	1	Hydraulic Hose	(SUB FOR TH4327471)
2	4189601	2	Adapter Fitting	(SUB FOR THA853168, OR A853168THIS APPLICATION)
3	T76938	2	O-Ring	-
5	4279302	1	Adapter Fitting	(SUB FOR AT200475)
6	4459853	1	Hydraulic Hose	(SUB FOR TH4459853)
10	4200465	2	Adapter Fitting	(SUB FOR TH108328)
11	4459854	1	Hydraulic Hose	-
13	4396013	1	Bushing	(SUB FOR AT250104)
14	4438597	1	Bushing	(SUB FOR TH4438597)
15	4202103	1	Clamp	(SUB FOR TH108302)
16	9736782	1	Clamp	(SUB FOR AT201191)
17	19M8348	1	Cap Screw	M12 X 65
18	H77698	3	Tie Band	-
20	T78313	2	O-Ring	-
21	4085560	4	Flange Fitting	(SUB FOR TH101960)
22	19M9163	8	Screw	M12 X 40, (SUB FOR J781240)
23	A852544	1	Tee Fitting	(SUB FOR THA852544)
2A	AT318035	1	O-Ring	(SUB FOR <service-part qty="1">4506424</service-part>, <service-part qty="1">TH100055</service-part>)(NOT ILLUSTRATED)
5A	AT318035	1	O-Ring	(SUB FOR <service-part qty="1">4506424</service-part>, <service-part qty="1">TH100055</service-part>)(NOT ILLUSTRATED)
10A	M800650	1	Packing	(NOT ILLUSTRATED)
23A	4506418	1	O-Ring	(NOT ILLUSTRATED)

PROPEL MOTOR LINES (TRACK FRAME) (370C)
