Открытый узел

LONG ARM 4.0M

LONG ARM 4.0M

LONG ARM 4.0M

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

LONG ARM 4.0M

Нет текстового описания

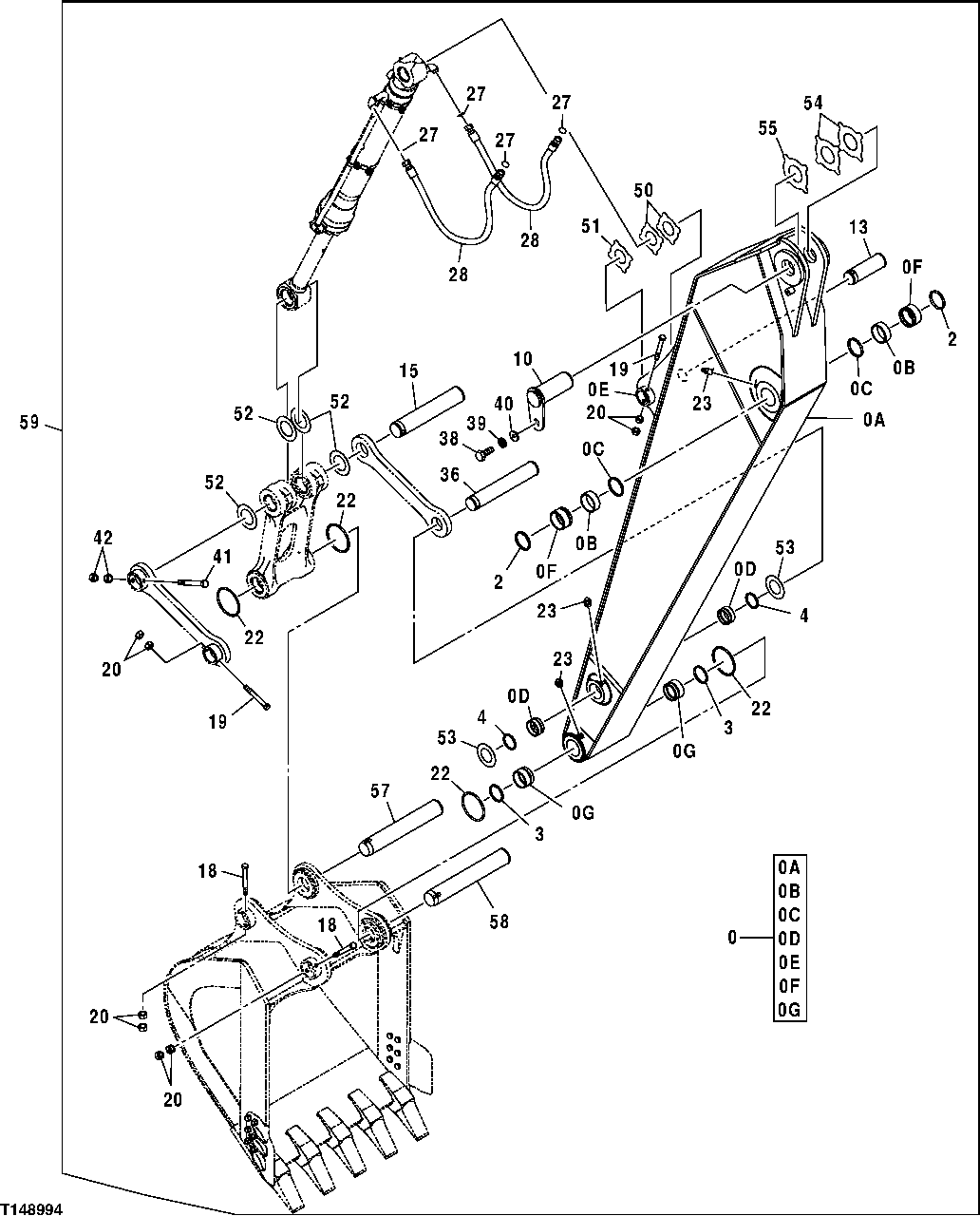

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7040868	1	Arm	(SUB FOR TH7040868)
2	TH103200	2	Seal	-
3	TH102411	2	Seal	-
4	TH102445	2	Seal	-
10	8080908	1	Pin Fastener	(SUB FOR TH8080908)
13	AT219638	1	Pin Fastener	-
15	FF551119	1	Pin	(SUB FOR TH3092037 AND 3092037)
18	4435127	2	Pin Fastener	(SUB FOR TH4435127)
19	4435126	2	Pin Fastener	(SUB FOR TH4435126)
20	14M7277	8	Nut	M20, (SUB FOR 14M7144)
22	4100180	4	O-Ring	(STANDARD O-RING)
22	AT349467	4	Seal	(SPLIT O-RING)
23	TH100074	6	Lubrication Fitting	-
27	T76938	4	O-Ring	-
28	4397354	2	Hydraulic Hose	36.5252" X 2250 mm (88-1/2") X 36.5252", Fabricate, (SUB FOR AT250113)
36	FF551124	1	Pin	(SUB FOR TH3089968 AND 3089968)
38	T116332	1	Bolt	(SUB FOR THJ921840)
39	J257218	1	Lock Washer	(SUB FOR AT250277)
40	4441471	1	Plate	(SUB FOR TH4441471)
41	4435128	1	Pin Fastener	(SUB FOR TH4435128)
42	R114125	2	Nut	(SUB FOR THJ950022 OR J950022)
50	4470743	2	Thrust Washer	(SUB FOR 4444284)
51	4444285	1	Thrust Washer	(SUB FOR TH4444285)
52	4450014	4	Plate	(SUB FOR TH4450014)
53	4476062	2	Thrust Washer	(SUB FOR 4450013)
54	FF110031	2	Shim	(SUB FOR 4445635 AND 4469095)
55	FF110033	1	Shim	(SUB FOR 4445636 AND 4469097)
57	3090418	1	Pin Fastener	(SUB FOR TH3090418)
58	FF551093	1	Pin	(SUB FOR TH3090417 AND 3090417)
59	AT196054	1	Arm	WHOLE GOODS (INCLUDES LONG ARM, BUCKET CYLINDER, HOSES AND LINKAGE) (DOES NOT INCLUDE BUCKET)
90	24M7027	1	Washer	5.300 X 10 X 1 mm, (NOT ILLUSTRATED)
90	14M7572	1	Lock Nut	M5, (NOT ILLUSTRATED)
90	19M9304	1	Cap Screw	M5 X 90, (NOT ILLUSTRATED)
90	AT349467	1	Seal	(SUB FOR <service-part qty="1">T238397</service-part>)(NOT ILLUSTRATED)
0A	-	1	Part 2	( <service-part>TH5007892</service-part> NLA)
0B	4381855	2	Bushing	(SUB FOR AT250026)
0C	TH103200	2	Seal	-
0D	4438771	2	Bushing	(SUB FOR TH4438771)
0E	TH102409	1	Bushing	-
0F	4443884	2	Bushing	(SUB FOR TH4443884)
0G	4443885	2	Bushing	(SUB FOR TH4443885)
0H	8080587	1	Boss	Replacement Arm End Parts Not Illustrated
