LEFT BOOM CYLINDER (370C) (SN -083162)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	TH9206359	1	Hydraulic Cylinder	NLA
1	9206362	1	Hydraulic Cylinder Barrel	-
2	1026691	1	Cylinder Head	(SUB FOR TH1026691)
3	7037753	1	Rod	(SUB FOR TH7037753)
4	19M8630	9	Screw	M24 X 80
6	AT264298	1	Seal	Dust, (SUB FOR 4351498)
7	AT333702	1	Seal	(ALSO ORDER AT280445 ) (SUB FOR TH111838, 4171485 OR 4411660)
8	AT264414	1	Seal	(SUB FOR TH111839, 4171487 OR 4411655)
9	4383089	1	Snap Ring	(SUB FOR AT250038)
10	AT264307	1	O-Ring	(SUB FOR AT250040, 4383091)
11	2041628	1	Ring	(SUB FOR TH2041628)
14	4268206	1	Snap Ring	(SUB FOR AT130834)
15	AT264308	1	Bushing	(SUB FOR AT250041, 4383093)
17	3080834	1	Piston	(SUB FOR AT219644)
18	AT264306	1	Seal	(NOT ILLUSTRATED)
19	AT264415	2	Ring	(SUB FOR TH111845, 4171490)
20	AT264416	2	Wear Ring	(SUB FOR TH111846, 4194622)
21	AT264417	1	Ring	(SUB FOR TH111847, 4386916)
22	AT280445	1	Back-Up Ring	(NOT ILLUSTRATED)
23	3039349	1	Nut	(SUB FOR TH111848)
24	4201806	1	Set Screw	(SUB FOR TH110066)
27	4260204	2	Nut	(SUB FOR AT219663)
28	8069110	1	Oil Line	(SUB FOR AT250207)
29	8069111	1	Oil Line	(SUB FOR AT250208)
31	19M8341	4	Screw	M12 X 45
32	19M8444	4	Screw	M12 X 60
33	AT264324	2	O-Ring	(SUB FOR TH100044)
35	TH100074	1	Lubrication Fitting	-
38	3080216	2	Clamp	(SUB FOR TH3080216)
39	8069891	1	Clamp	(SUB FOR TH8069891)
40	8079344	1	Clamp	(SUB FOR TH8079344)
43	19M7550	4	Cap Screw	M10 X 35
43	12M7066	4	Lock Washer	10 mm
45	4174241	1	Clamp	(SUB FOR TH110059)
46	12M7066	2	Lock Washer	10 mm
46	19M7402	2	Cap Screw	M10 X 25
48	4229234	1	Clamp	(SUB FOR TH111990)
49	19M8348	1	Cap Screw	M12 X 65
50	14M7275	1	Nut	M12
51	12H301	1	Lock Washer	1/2"
52	-	1	Part 43	(AT264440 NLA) (SUB 9180581, ALSO ORDER AT264308, AT264416,AT264415 AND AT264324)
53	9180581	1	Seal Kit	-
1A	4381855	2	Bushing	(SUB FOR AT250026)
3A	4381855	2	Bushing	(SUB FOR AT250026)

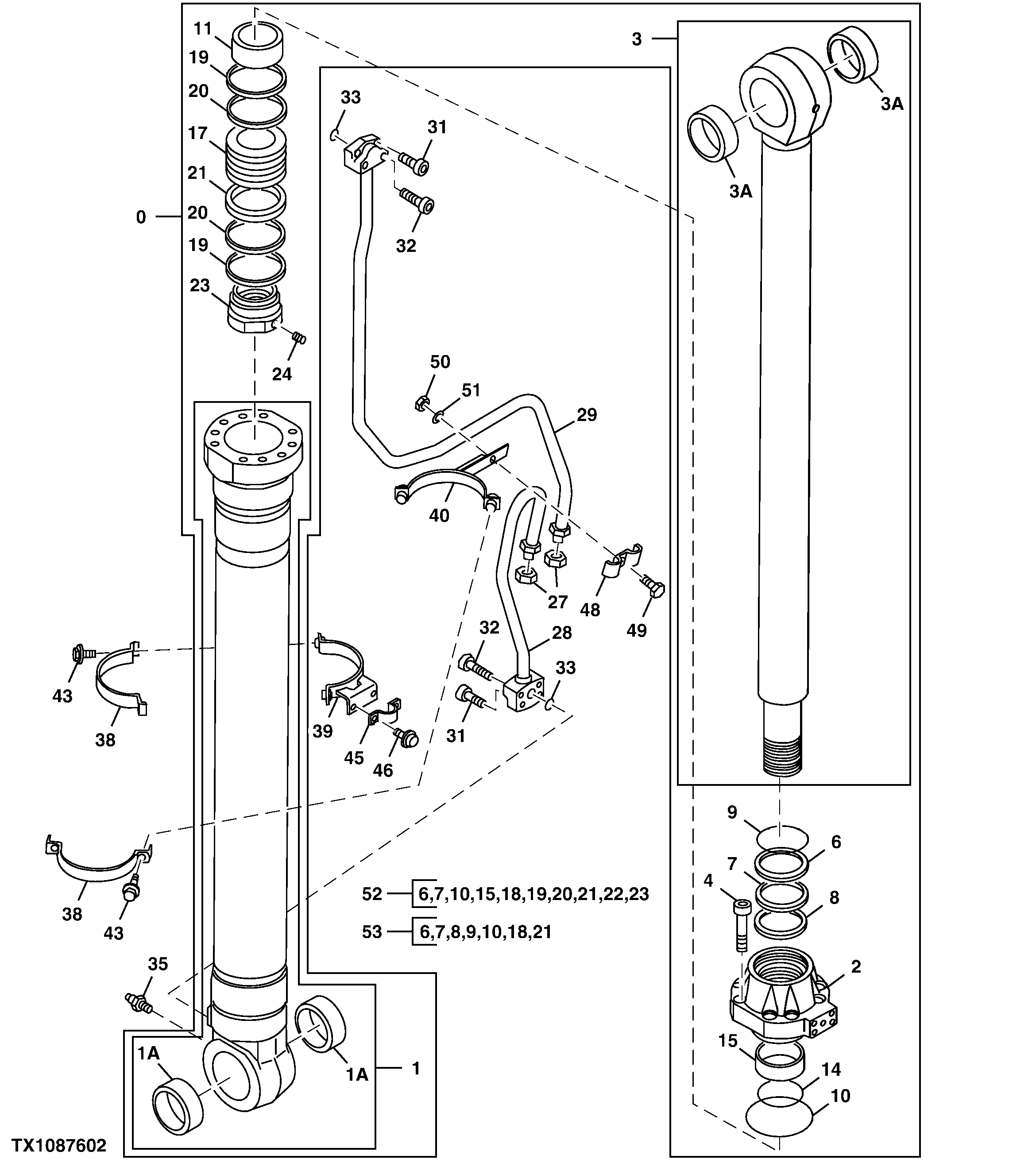

LEFT BOOM CYLINDER (370C) (SN -083162)
