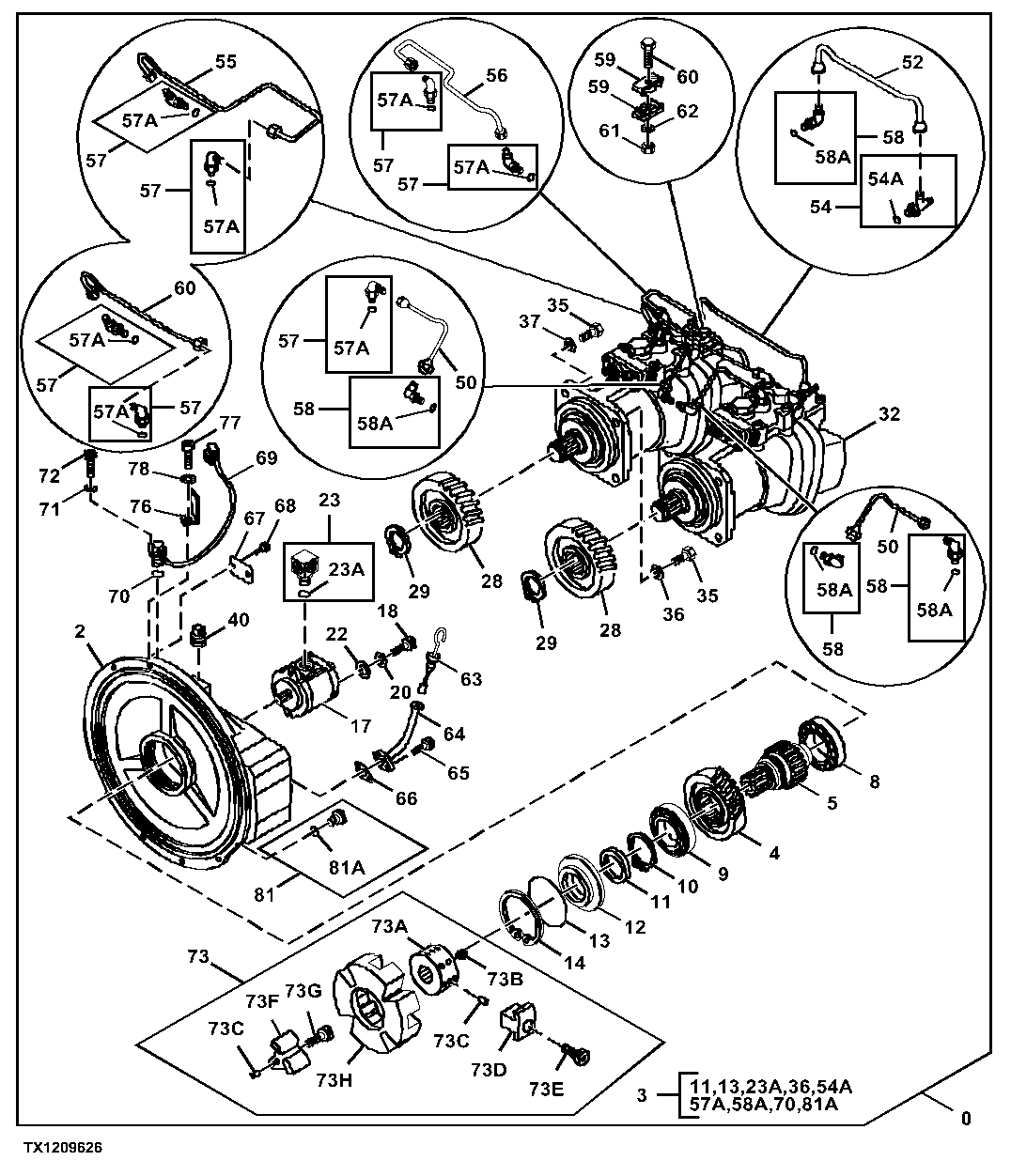

HYDRAULIC PUMP AND GEARBOX COMPONENTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	TH9195238 NLA
2	1028405	1	Case	SUB FOR TH1028405
3	FYB00002431	1	Seal Kit	SUB FOR 4471487
4	3089266	1	Gear	SUB FOR TH3089266
5	3081085	1	Pinion Shaft	SUB FOR AT219648
8	M804206	1	Bearing	AT250102 NLA
9	4720025	1	Ball Bearing	SUB FOR AT250103 AND 4395457
10	40M7120	1	Snap Ring	-
11	TH109453	1	Seal	-
12	3033593	1	Cover	SUB FOR TH109454
13	AT264339	1	O-Ring	SUB FOR TH100122
14	40M5463	1	Snap Ring	SUB FOR 40M7178
17	9217993	1	Pump	SUB FOR TH109457 AND 4181700
18	19M8337	2	Screw	M10 X 30
20	12M7135	2	Lock Washer	10 mm, SUB FOR 12M6791
22	4114402	2	Washer	SUB FOR TH102181
23	4191974	1	Adapter Fitting	SUB FOR TH109459
28	T200649	2	Helical Gear	SUB FOR TH111139 OR 3035853
29	40M7166	2	Snap Ring	-
32	9207291	2	Hydraulic Pump	NLA, ORDER 9207291EX
32	9207291EX	2	Hydraulic Pump Reman	SUB FOR TH9207291, REMAN FOR 9207291
35	19M7489	8	Cap Screw	M16 X 45
36	4126090	4	Sealing Washer	SUB FOR TH109463
37	12H294	4	Lock Washer	5/8"
40	4234782	1	Plug	SUB FOR AT200990
50	4438889	2	Oil Line	SUB FOR TH4438889
52	4625021	1	Hose	SUB FOR 4438888,ALSO ORDER A852422 AND 4154670
53	4154670	1	Elbow Fitting	SUB FOR A852322
54	A852422	1	Tee Fitting	SUB FOR TH109466
55	FYB00002955	1	Oil Line	SUB FOR FYB00000665
56	3089618	1	Oil Line	-
57	4118499	4	Elbow Fitting	SUB FOR TH101821
58	4293950	4	Fitting	SUB FOR AT160584
60	3089617	1	Oil Line	NLA, SUB FOR TH3089617, ORDER FYB00002955
23A	4506418	1	O-Ring	-
53A	957366	1	O-Ring	-
54A	M800650	1	Packing	-
57A	M800650	1	Packing	-
58A	M800650	1	Packing	-

HYDRAULIC PUMP AND GEARBOX COMPONENTS
