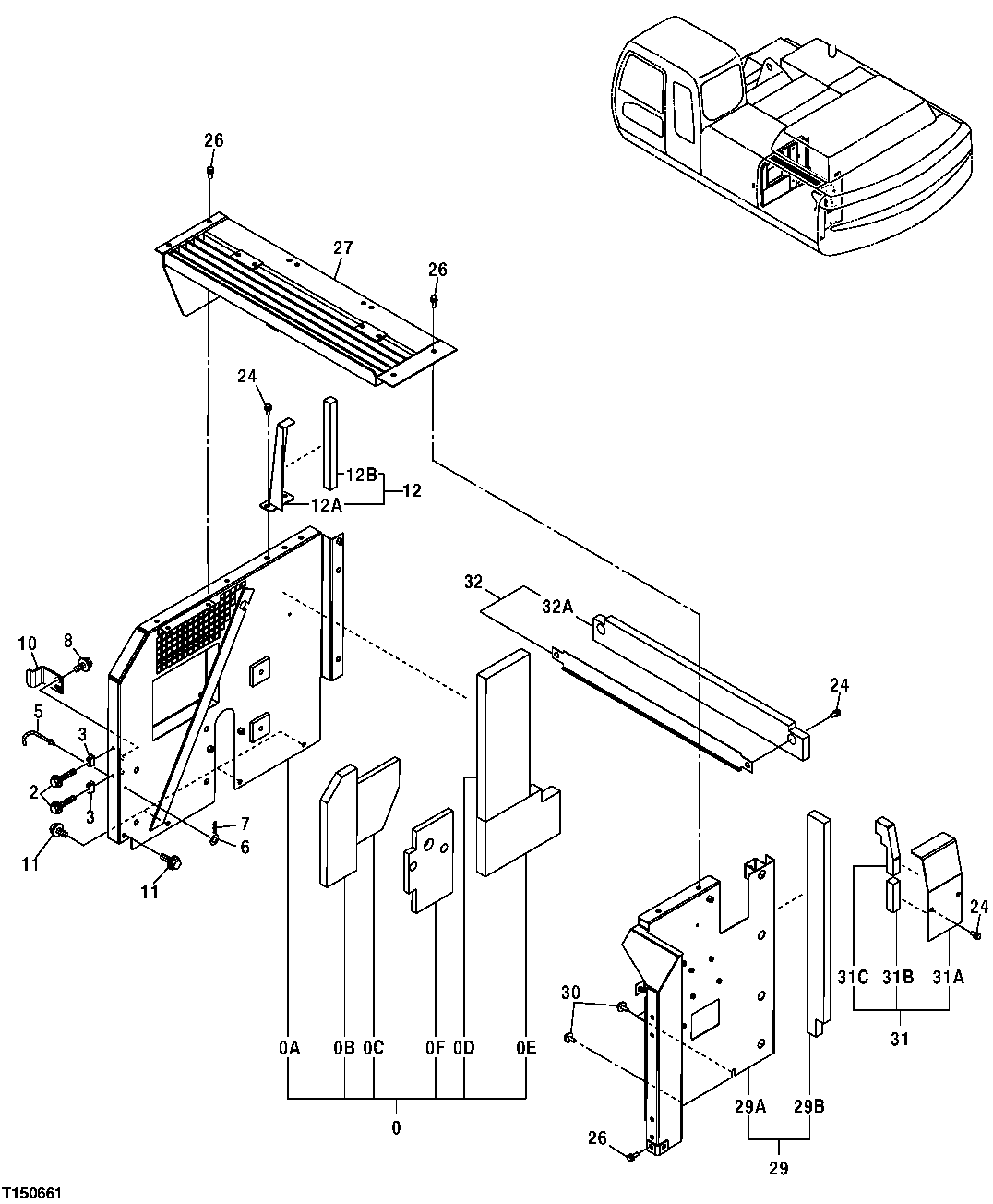

Cover, Battery and Radiator Compartment

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7040881	1	Cover	-
0	7043642	1	Cover	-
2	19M7662	2	Cap Screw	M10 X 30
2	12M7058	2	Lock Washer	12 mm, (SUB FOR 12M7067)
2	24M7346	2	Washer	11 X 20 X 2 mm
3	4424157	2	Stop	SUB FOR P67942
5	9751797	1	Latch	(SUB FOR TH9751797)
6	24M7054	1	Washer	6.400 X 12 X 1.600 mm
7	M800051	1	Pin	(SUB FOR CH10542)
8	12M7012	2	LOCK WASHER	6 mm
8	24M7054	2	Washer	6.400 X 12 X 1.600 mm
8	19M7177	2	Cap Screw	M6 X 35
10	4466324	1	Stop	-
11	12M7066	4	Lock Washer	10 mm
11	19M7662	4	Cap Screw	M10 X 30
11	24M7028	4	Washer	10.500 X 20 X 2 mm
12	8085489	1	Cover	-
24	19M7402	6	Cap Screw	M10 X 25
24	24M7028	6	Washer	10.500 X 20 X 2 mm
24	12M7066	6	Lock Washer	10 mm
26	12M7066	5	Lock Washer	10 mm
26	19M7662	5	Cap Screw	M10 X 30
26	24M7028	5	Washer	10.500 X 20 X 2 mm
27	7041029	1	Cover	-
27	7043638	1	Cover	-
29	7041046	1	Cover	-
29	7043639	1	Cover	-
30	24M7346	2	Washer	11 X 20 X 2 mm
30	12M7058	2	Lock Washer	12 mm, (SUB FOR 12M7067)
30	19M7662	2	Cap Screw	M10 X 30
31	8071341	1	Cover	(SUB FOR AT250234)
32	8071338	1	Cover	(SUB FOR AT250232)
0A	6021395	1	Cover	-
0A	6020388	1	Cover	-
0B	4461189	1	Isolator	-
0C	4397602	1	Isolator	-
0D	4461187	1	Isolator	-
0E	4461188	1	Isolator	-
0F	4461186	1	Isolator	-
12A	8085488	1	Cover	-
12B	4397596	1	Isolator	-
29A	6021394	1	Cover	-
29A	6020387	1	Cover	-
29B	4397598	1	Isolator	-
31A	4403870	1	Cover	-
31B	4403867	1	Isolator	-
31C	4403868	1	Isolator	-
32A	4397597	1	Isolator	-

Cover, Battery and Radiator Compartment
