Открытый узел

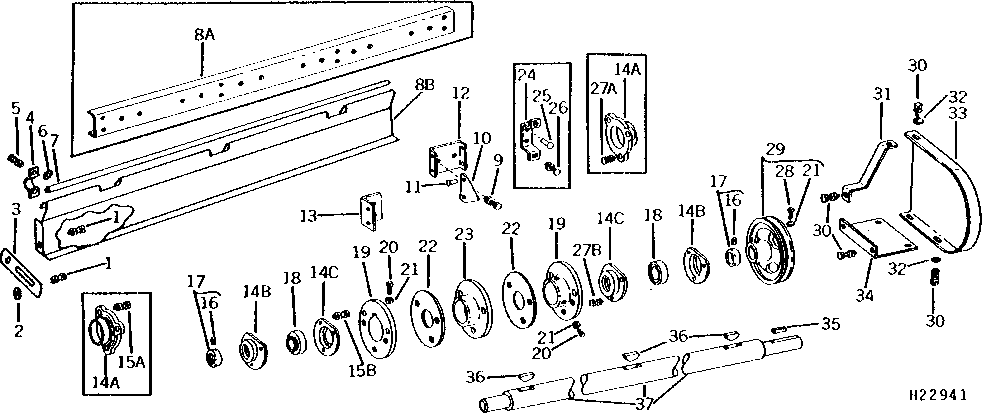

STRAW CHOPPER HUBS, SHAFT, KNIVES, AND SHIELD ( - 200000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	4	NUT	3/8"
1	03H1500	4	Bolt	3/8" X 1"
2	24H1305	2	Washer	13/32" X 13/16" X 0.065"
3	H84992	2	Strap	-
4	H84990	2	Clamp	-
5	03H1540	4	Bolt	5/16" X 3/4"
5	14H785	4	Nut	5/16"
5	19H2284	3	Cap Screw	3/8" X 7/8"
5	14H812	4	NUT	3/8"
6	24H1136	4	Washer	11/32" X 11/16" X 0.065"
7	H84993	1	Pin	-
9	19H1900	10	Cap Screw	5/16" X 3/4"
9	03H1774	10	Bolt	5/16" X 5/8"
9	14H785	10	Nut	5/16"
10	E76372	9	Section	(SUB FOR Z6451H)
11	AH116874	1	Rivet	(SUB FOR AH84096) (CTN. OF 100 Z8946H)
12	P48068	4	Bracket	OUTER
13	P48067	1	Bracket	CENTER
16	22H775	2	Set Screw	5/16" X 1/4"
17	JD8544	2	Bearing	-
17	JD8551	2	Eccentric Locking Collar	-
18	JD8552	2	Ball Bearing	-
18	JD9274	2	BALL BEARING	-
19	H76227	2	Hub	OUTER
20	22H853	4	Set Screw	3/8" X 7/8"
21	14H732	6	Nut	3/8"
22	H76229	2	Plate	INNER
23	H76226	1	Hub	INNER
24	H76185	4	Bracket	-
25	16H658	8	Rivet	1/4" X 5/8"
26	14H785	8	Nut	5/16"
26	03H1539	8	Bolt	5/16" X 5/8"
28	22H817	2	Set Screw	3/8" X 3/4"
29	AH85419	1	Pulley	187 MM (7-3/8") DIA, (SUB FOR AH78637)
30	14H785	6	Nut	5/16"
30	19H1813	6	CAP SCREW	5/16" X 5/8"
31	H98222	1	Bracket	UPPER (SUB FOR H76210)
32	24H1136	3	Washer	11/32" X 11/16" X 0.065"
33	H98221	1	Shield	(SUB FOR H76208)
34	AH138807	1	Kit	(SUB FOR H76209) LOWER
35	-	1	Part 54	6 MM X 6 MM X 51 MM (1/4" X 1/4" X 2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
35	-	1	Part 55	6 MM X 6 MM X 51 MM (1/4" X 1/4" X 2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
36	26H103	3	Shaft Key	1/4" X 2-1/8"
37	H76228	1	Shaft	(SUB H86745, (2) JD8544 AND (2) JD9274)
8A	H76232	1	Bar	-
8B	H84996	1	Support	-
14A	H85012	2	Pressed Flanged Housing	(SUB FOR H76170)
14B	H85011	2	Pressed Flanged Housing	-
14C	H85012	2	Pressed Flanged Housing	-
15A	14H812	3	NUT	3/8"
15A	19H1731	3	Cap Screw	3/8" X 1"
15B	14H812	3	NUT	3/8"
15B	19H2284	3	Cap Screw	3/8" X 7/8"
27A	14H812	3	NUT	3/8"
27A	19H1732	3	Cap Screw	3/8" X 1-1/4"
27B	14H812	3	NUT	3/8"
27B	19H2284	3	Cap Screw	3/8" X 7/8"

STRAW CHOPPER HUBS, SHAFT, KNIVES, AND SHIELD ( - 200000)
