Большое обновление пильных узлов

Смотреть

Открытый узел

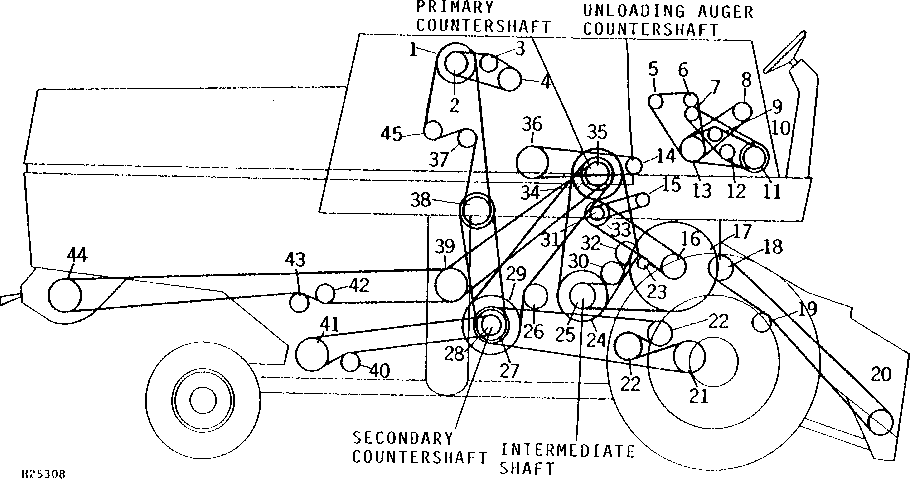

SHEAVES, SPROCKETS, AND TIGHTENERS ON RIGHT - HAND SIDE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH75987	1	Pulley	299 MM (11-3/4") DIA, DRIVE, CLEAN GRAIN ELEVATOR
2	H77059	1	Chain Sprocket	Z=16, DRIVE, LOADING AUGER
3	AH15303	1	CHAIN SPROCKET	Z=11, TIGHTENER, LOADING AUGER
3	AH83654	1	IDLER	TIGHTENER, LOADING AUGER
4	H77059	1	Chain Sprocket	Z=16, DRIVEN, LOADING AUGER
5	H93619	1	Pulley	76 MM (3") DIA, (SUB FOR H81713 DRIVE, ALTERNATOR)
6	T31216	1	Pulley	124 MM (4-7/8") DIA, DRIVE, WATER PUMP, (PRESS-ON)
7	H77824	1	Pulley	177 MM (6-61/64") DIA, DRIVEN, ENGINE FAN
8	AH85846	1	Pulley	152 MM (6") DIA, (SUB FOR AH79301) ELECTROMAGNETIC CLUTCH, DRIVEN, AIR COMPRESSOR
9	AH77172	1	Idler	102 MM (4") DIA, TIGHTENER, ENGINE FAN COUNTERSHAFT DRIVE
10	AH77175	1	Pulley	178 MM (7") DIA, DRIVEN, ENGINE FAN COUNTERSHAFT
10	AH82233	1	Pulley	178 MM (7") DIA, DRIVEN, ENGINE FAN COUNTERSHAFT
11	AH77171	1	Pulley	165 MM (6-1/2") DIA, DRIVE, ENGINE FAN
11	AH82232	1	Pulley	165 MM (6-1/2") DIA, DRIVE, ENGINE FAN
12	AH77172	1	Idler	102 MM (4") DIA, TIGHTENER, ENGINE FAN DRIVE
13	T31207	1	Pulley	165 MM (6-1/2") DIA, DRIVE, ENGINE CRANKSHAFT
14	AH84244	1	Drive Sprocket	Z=18, DRIVE, INNER UNLOADING AUGER (SUB FOR H35717)
15	AH75620	1	Pulley	76 MM (3") DIA, DRIVEN, CYLINDER TACHOMETER
15	AH96217	1	Pulley	76 MM (3") DIA, (SUB FOR AH87157) DRIVEN, CYLINDER TACHOMETER
16	AH77647	1	Drive Sprocket	Z=23, DRIVE, ROTARY DEFLECTOR
16	AH80755	1	Pulley	229 MM (9") DIA, DRIVE, ROTARY DEFLECTOR
16	AH80758	1	Pulley	203 MM (8") DIA, DRIVE, ROTARY DEFLECTOR
17	H84542	1	Pulley	477 MM (18-25/64") DIA, DRIVEN, CYLINDER (SUB FOR H79648)
18	H80845	1	Chain Sprocket	Z=35, DRIVEN, FEEDER CONVEYOR
19	AH21440	1	Idler Sprocket	-
19	AH98176	1	Idler Sprocket	Z=17, (SUB FOR AH87204) TIGHTENER, FEEDER CONVEYOR DRIVE
20	AH84245	1	Chain Sprocket	Z=18 AND Z=23, (SUB FOR H77965 AND H82003) DRIVE, FEEDER CONVEYOR
21	H77260	1	Pulley	(SUB H83081 AND JD7797)
21	H83081	1	Pulley	238 MM (9-3/8") DIA, DRIVEN, SHOE GRAIN SUPPLY AUGERS
22	AH14097	2	Idler	DRIVE, 178 MM (7") DIA, TIGHTENER, SHOE GRAIN SUPPLY AUGERS
23	AN210556	1	Idler Sprocket	Z=15, (SUB FOR AN50272 TIGHTENER, ROTARY DEFLECTOR DRIVE)
23	AH80757	1	Idler	140 MM (5-1/2") DIA, TIGHTENER, ROTARY DEFLECTOR DRIVE
24	AH75294	1	Pulley	356 MM (14-1/32") DIA, SLIDING, DRIVEN, INTERMEDIATE CYLINDER
24	AH75293	1	Pulley	356 MM (14-1/32") DIA, FIXED, DRIVEN, INTERMEDIATE CYLINDER
24	H85448	1	Chain Sprocket	Z=77, DRIVEN, INTERMEDIATE CYL.(SLOW SPEED)
25	H79647	1	Pulley	215 MM (8-29/64") DIA, DRIVE, CYLINDER, (HIGH SPEED)
25	H79646	1	Pulley	174 MM (6-55/64"), DRIVE, CYLINDER, (LOW SPEED)
26	AH85276	1	Idler	229 MM (9") DIA, TIGHTENER, SECONDARY COUNTERSHAFT DRIVE
