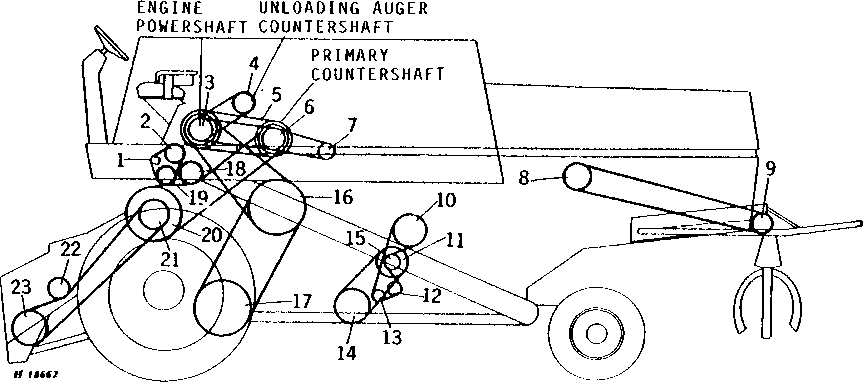

SHEAVES, SPROCKETS, AND TIGHTENERS ON LEFT - HAND SIDE

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P47883	1	Tightener	TIGHTENER, TAILINGS UPPER AUGER
2	H78297	1	Chain Sprocket	Z=14, DRIVE, UPPER TAILINGS AUGER
3	H84105	1	Pulley	181 MM, 235 MM, AND 252 MM (7-1/8", 9-17/64", AND 9-15/16") DIAS, DRIVE, UNLOADING AUGER COUNTERSHAFT, PRIMARY COUNTERSHAFT, AND PROPULSION COUNTERSHAFT, (SUB FOR H75734 AND H82173)
4	AH75984	1	Pulley	245 MM (9-5/8") DIA, DRIVEN, UNLOADING AUGER COUNTERSHAFT
5	H77390	1	Pulley	402 MM (15-53/64") DIA, DRIVEN, PRIMARY COUNTERSHAFT
5	H96848	1	Pulley	402 MM (15-53/64") DIA
6	H77392	1	Pulley	229 MM (9") DIA, DRIVE, PLATFORM AND FEEDER HOUSE AND HYDROSTATIC DRIVE REEL PUMP, (NOT USED WITH ELECTROMAGNETIC CLUTCH)
6	AH76192	1	Pulley	229 MM (9") DIA, DRIVE, PLATFORM AND FEEDER HOUSE AND HYDROSTATIC DRIVE REEL PUMP, (USE WITH ELECTROMAGNETIC CLUTCH)
7	AH83518	1	Pulley	187 MM (7-3/8") DIA, (SUB FOR H77681) DRIVEN, HYDROSTATIC DRIVE REEL PUMP
8	AH75982	1	Pulley	238 MM (9-3/8") DIA, DRIVE, STRAW SPREADER
9	AH108938	1	Pulley	149 MM (5-7/8") DIA, (SUB FOR AH75981) DRIVEN, STRAW SPREADER
10	H76434	1	Chain Sprocket	Z=49, DRIVE, STRAW WALKER
11	H80724	1	Half Sheave	256 MM (10-1/16") DIA, FIXED, DRIVE, CLEANING FAN
11	AH78925	1	Pulley	(MARKED H80725), (SUB A4730R, H100794, H100796 AND JD7798)
11	AH87209	1	Pulley	(MARKED H86101), (SUB A4730R, H100794, H100796 AND JD7798)
11	AH100010	1	Pulley	256 MM (10-1/16") DIA, SLIDING, DRIVE, CLEANING FAN (MARKED H86101)
12	AH21440	1	Idler Sprocket	Z=17, TIGHTENER, SHOE AND STRAW WALKER DRIVE
13	H78523	1	Chain Sprocket	Z=27, DRIVEN, SHOE PITMAN
14	H97703	1	Half Sheave	(SUB FOR H75015) CLEANING FAN, DRIVEN, OUTER
14	AH173726	1	Half Sheave	(SUB FOR AH75844 OR AH100009), (MARKED H178856) CLEANING FAN, DRIVEN, INNER
15	AH84242	1	Chain Sprocket	Z=15, (SUB FOR AH80388) DRIVE, SHOE AND STRAW WALKER
16	H75914	1	Pulley	349 MM (13-3/4") DIA, INNER, PROPULSION COUNTERSHAFT
16	H75915	1	Pulley	349 MM (13-3/4") DIA, OUTER, PROPULSION COUNTERSHAFT
16	H75916	1	Center Sheave	349 MM (13-3/4") DIA, CENTER, PROPULSION COUNTERSHAFT
17	H75706	1	Pulley	333 MM (13-7/64") DIA, DRIVEN, LOWER PROPULSION
18	AH85276	1	Idler	229 MM (9") DIA, TIGHTENER, PLATFORM AND FEEDER HOUSE UPPER DRIVE
19	PK1613H	1	Chain Sprocket	Z=12, DRIVEN, UPPER TAILINGS AUGER
20	AH75979	1	Pulley	440 MM (17-5/16") DIA, DRIVEN, PLATFORM AND FEEDER HOUSE UPPER CHAIN
21	H77966	1	Chain Sprocket	Z=23, DRIVE, PLATFORM AND FEEDER HOUSE LOWER CHAIN
22	AH20443	1	Idler Sprocket	Z=15, TIGHTENER, PLATFORM AND FEEDER HOUSE CHAIN DRIVE, INCLUDES JD9295
22	JD9295	1	Ball Bearing	-
23	H77948	1	Chain Sprocket	Z=38, DRIVEN, PLATFORM AND FEEDER HOUSE CHAIN
23	H77949	1	Chain Sprocket	Z=24, DRIVEN, PLATFORM AND FEEDER HOUSE CHAIN
23	H77980	1	Chain Sprocket	Z=29, DRIVEN, PLATFORM AND FEEDER HOUSE CHAIN
