SHEAVES AND TIGHTENERS ON RIGHT - HAND SIDE OF ENGINE (100001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H93619	1	Pulley	76 MM (3") DIA, (SUB FOR H81713) DRIVEN, ALTERNATOR
2	T31216	1	Pulley	124 MM (4-7/8") DIA, DRIVEN, WATER PUMP, (PRESS-ON)
3	AH87501	1	Screen	716 MM (28-3/16") DIA, DRIVEN AND ROTARY SCREEN
4	AH85041	1	Pulley	196 MM (7-23/32") DIA, DRIVEN, ENGINE FAN
5	T31207	1	Pulley	165 MM (6-1/2") DIA, DRIVE, ENGINE FAN AND ROTARY SCREEN DRIVE SHAFT, WATER PUMP, AND ALTERNATOR
6	AH77172	2	Idler	102 MM (4") DIA, TIGHTENER, ENGINE FAN AND ROTARY SCREEN DRIVE SHAFT, AND ENGINE FAN
7	H89969	1	Pulley	181 MM (7-1/8") DIA, (SUB FOR AH87556) DRIVEN, ENGINE FAN AND ROTARY SCREEN DRIVE SHAFT
8	H89218	1	Pulley	168 MM (6-5/8"), (SUB FOR AH87557) DRIVE, ENGINE FAN
9	H86496	1	Countershaft	19 MM (3/4") DIA, DRIVE, GROOVED ROTARY SCREEN, AND DRIVE SHEAVE
9	H92234	1	Countershaft	29 MM (1-1/8") DIA, DRIVE, ROTARY SCREEN, AND DRIVE SHEAVE (SUB H94705, H96509, 19H3427)
9	H94705	1	Countershaft	29 MM (1-1/8") DIA, DRIVE, ROTARY SCREEN
10	AH87929	2	Pulley	78 MM (3-1/16") DIA, IDLER, ROTARY SCREEN DRIVE BELT DISPLACER

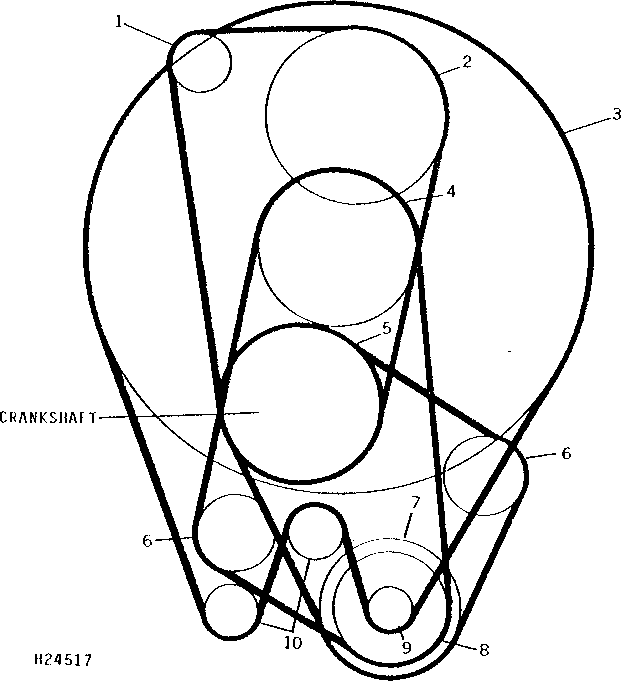

SHEAVES AND TIGHTENERS ON RIGHT - HAND SIDE OF ENGINE (100001 - )
